Power Supply Routing Circuit Schematic
Power Supply Routing Circuit Schematic

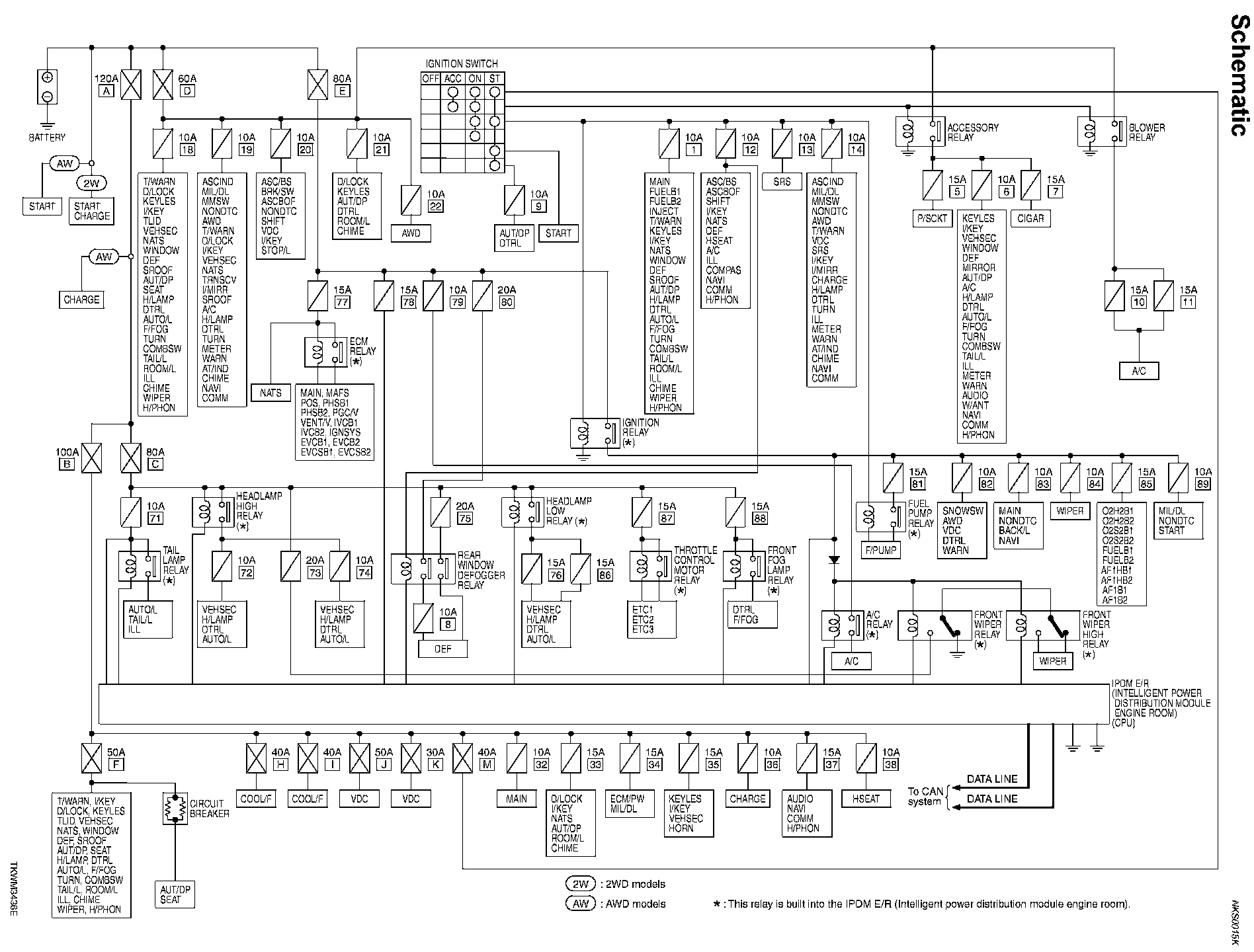

Power Supply Routing Circuit Schematic:
