Power Door Lock System Schematic
Power Door Lock System Schematic

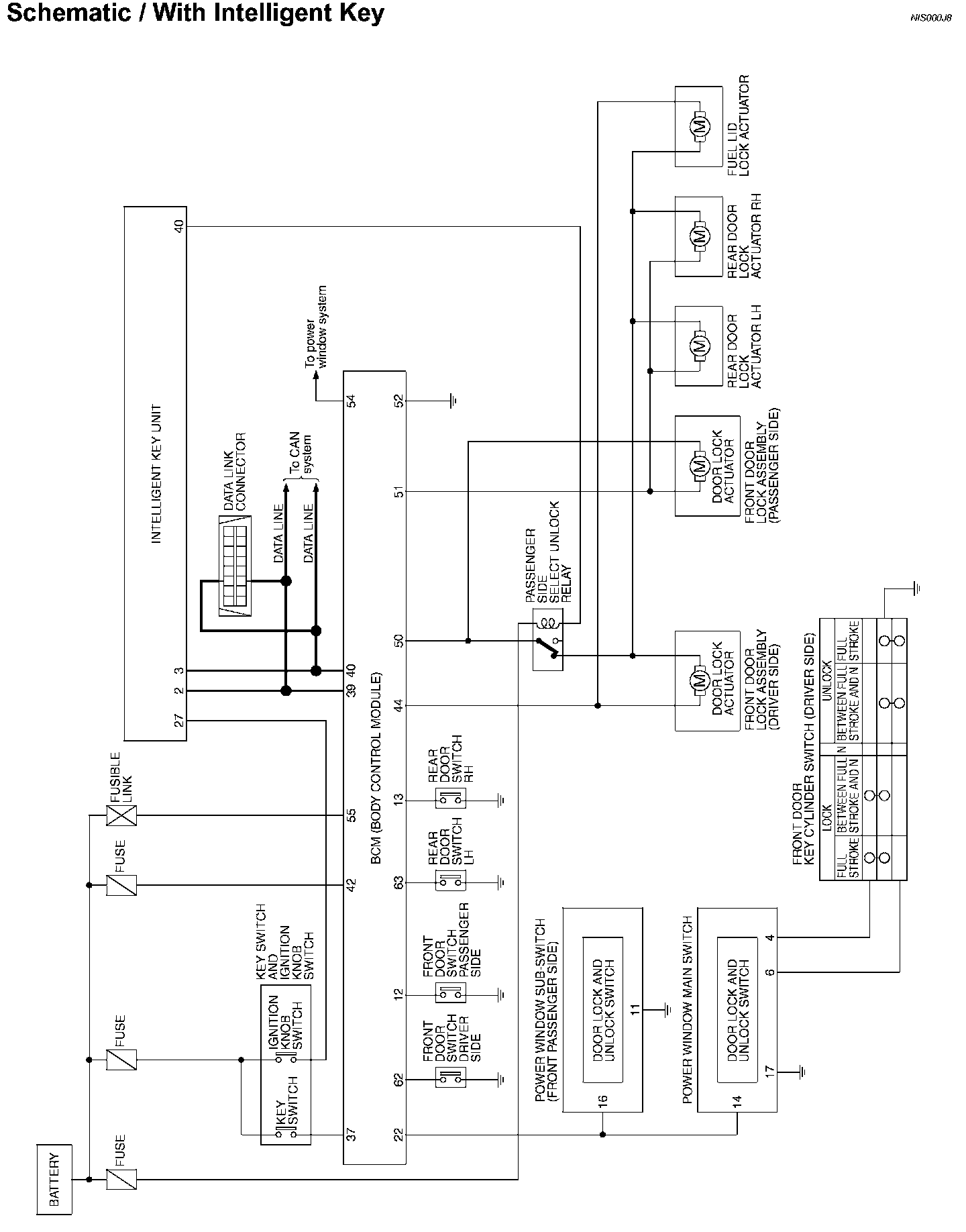

Power Door Lock System Schematic / With Intelligent Key:

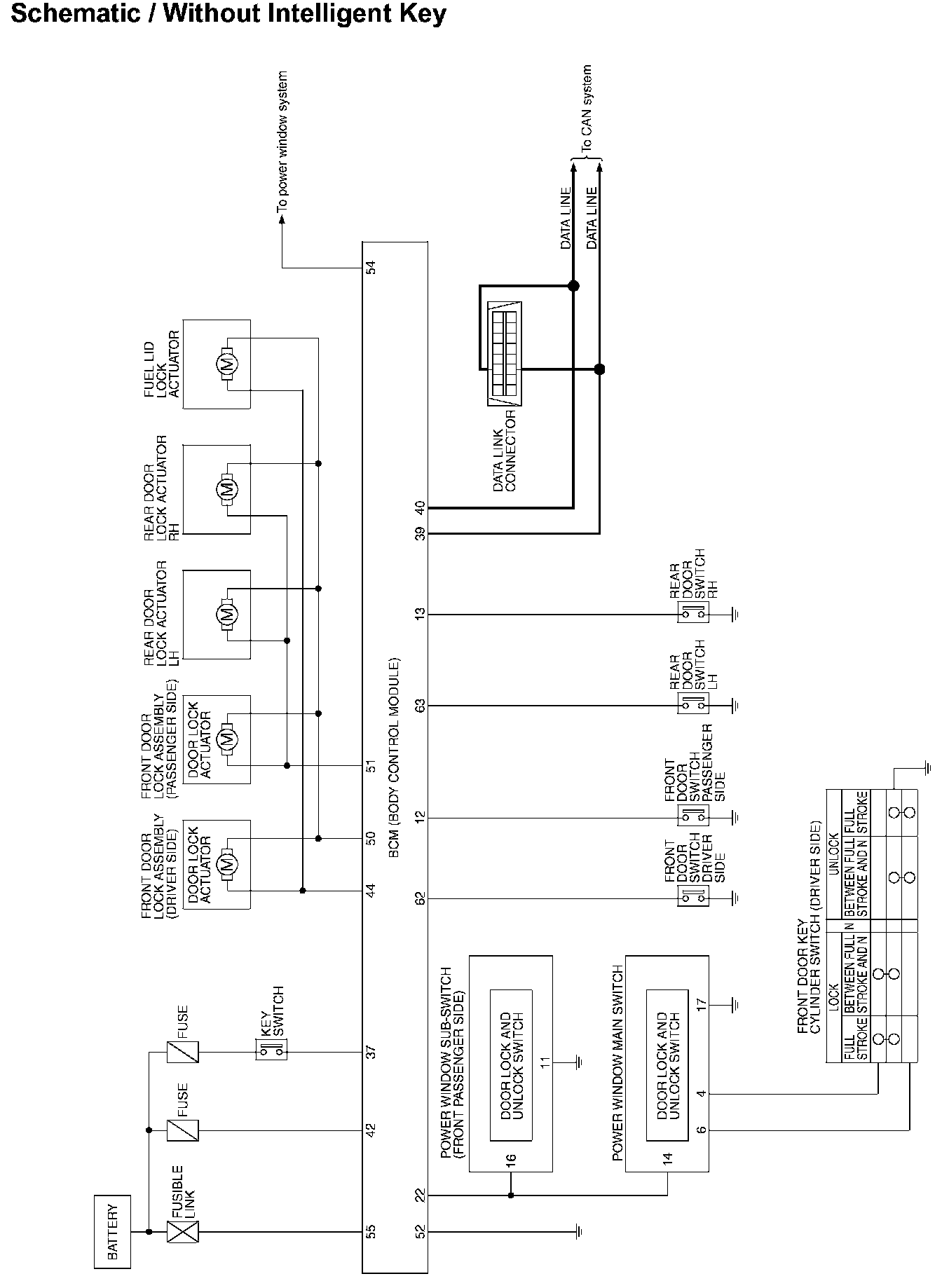

Power Door Lock System Schematic / Without Intelligent Key:
