Rear

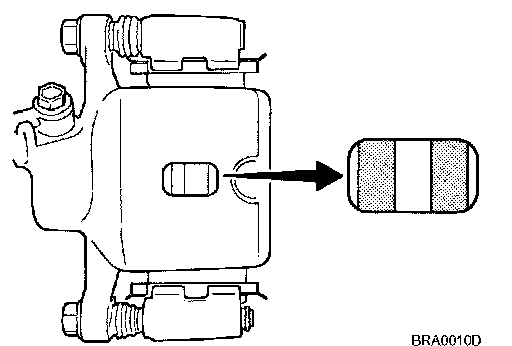

On-Vehicle InspectionPAD WEAR INSPECTION
^ Inspect the thickness of the pad through the cylinder body inspection hole. Use a scale for inspection if necessary.
Standard thickness: 8.5 mm (0.335 inch)
Repair limit thickness: 2.0 mm (0.079 inch)
PAD WEAR INSPECTION
^ Inspect the thickness of the pad through the cylinder body inspection hole. Use a scale for inspection if necessary.
Standard thickness: 8.5 mm (0.335 inch)
Repair limit thickness: 2.0 mm (0.079 inch)
