Brake System

Precautions for Brake System
^ Recommended fluid is brake fluid "DOT 3".
^ Do not reuse drained brake fluid.
^ Be careful not to splash brake fluid on painted surface of body. If brake fluid is splashed on painted surfaces of body immediately wipe it off with cloth and then wash it away with water.
^ Do not use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause improper operation.

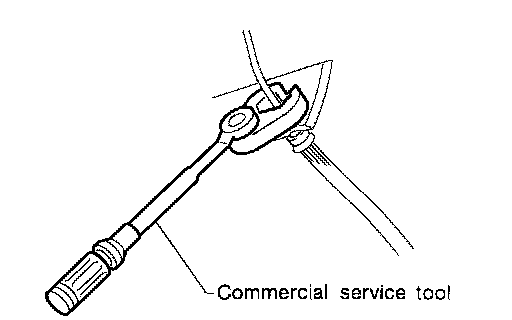

^ Use a flare nut wrench when removing flare nuts, and use a flare nut torque wrench when tighten brake tube flare nuts.
^ Brake system is an important safety part. If a brake fluid leak is detected, always disassemble the affected part. If a malfunction is detected, replace part with a new one.
^ Before working, turn ignition switch OFF and disconnect connectors of VDC/TCS/ABS control unit or the battery cables.
^ When installing brake piping, be sure to check torque.

WARNING: Clean brake pads and shoes with a waste cloth, then wipe with a dust collector.
