Front Fender Liner: Service and Repair

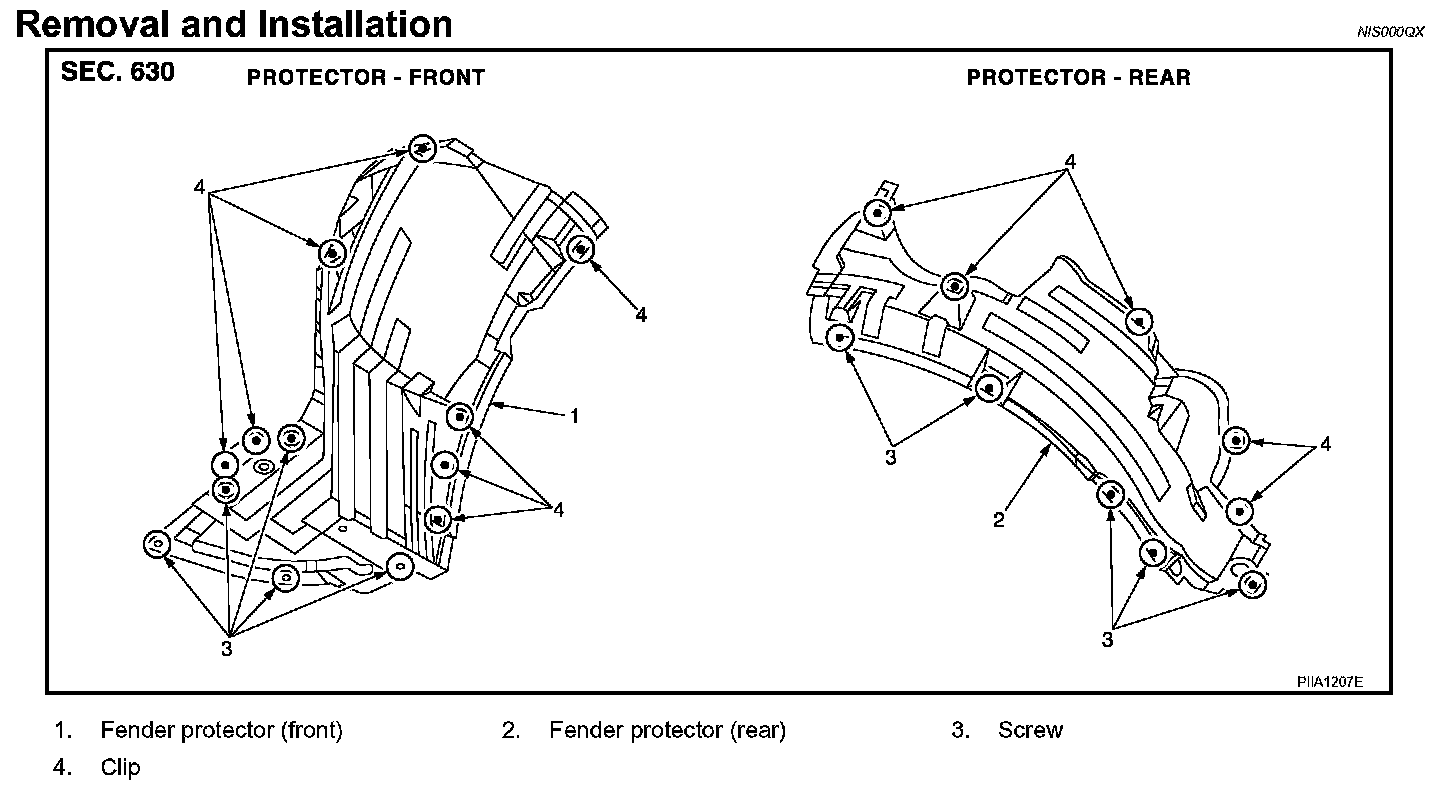

FENDER PROTECTOR




Removal and Installation

REMOVAL
1. Remove screws and clips of fender protector.
2. Remove fender protector (front/rear).

INSTALLATION
Install in the reverse order of removal.
