Trunk Does Not Open With Trunk Lid Opener Switch / With Intelligent Key

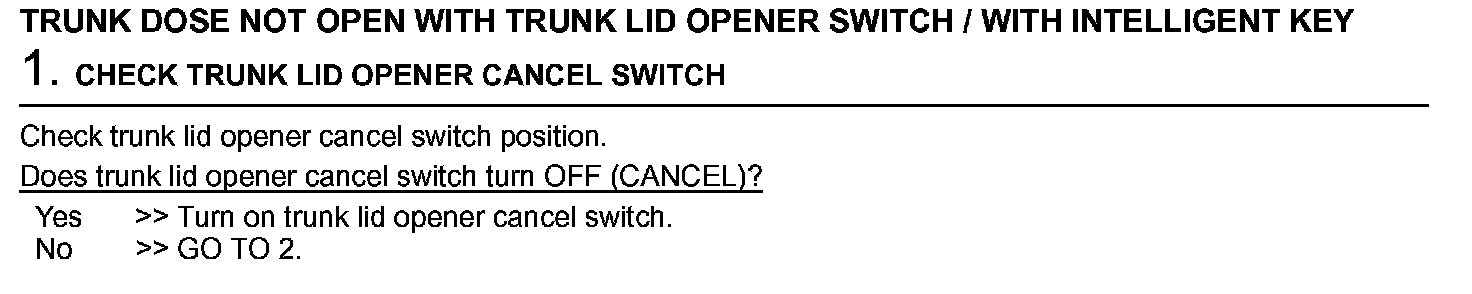

Trunk Does Not Open With Trunk LID Opener Switch / With Intelligent Key (Step 1):

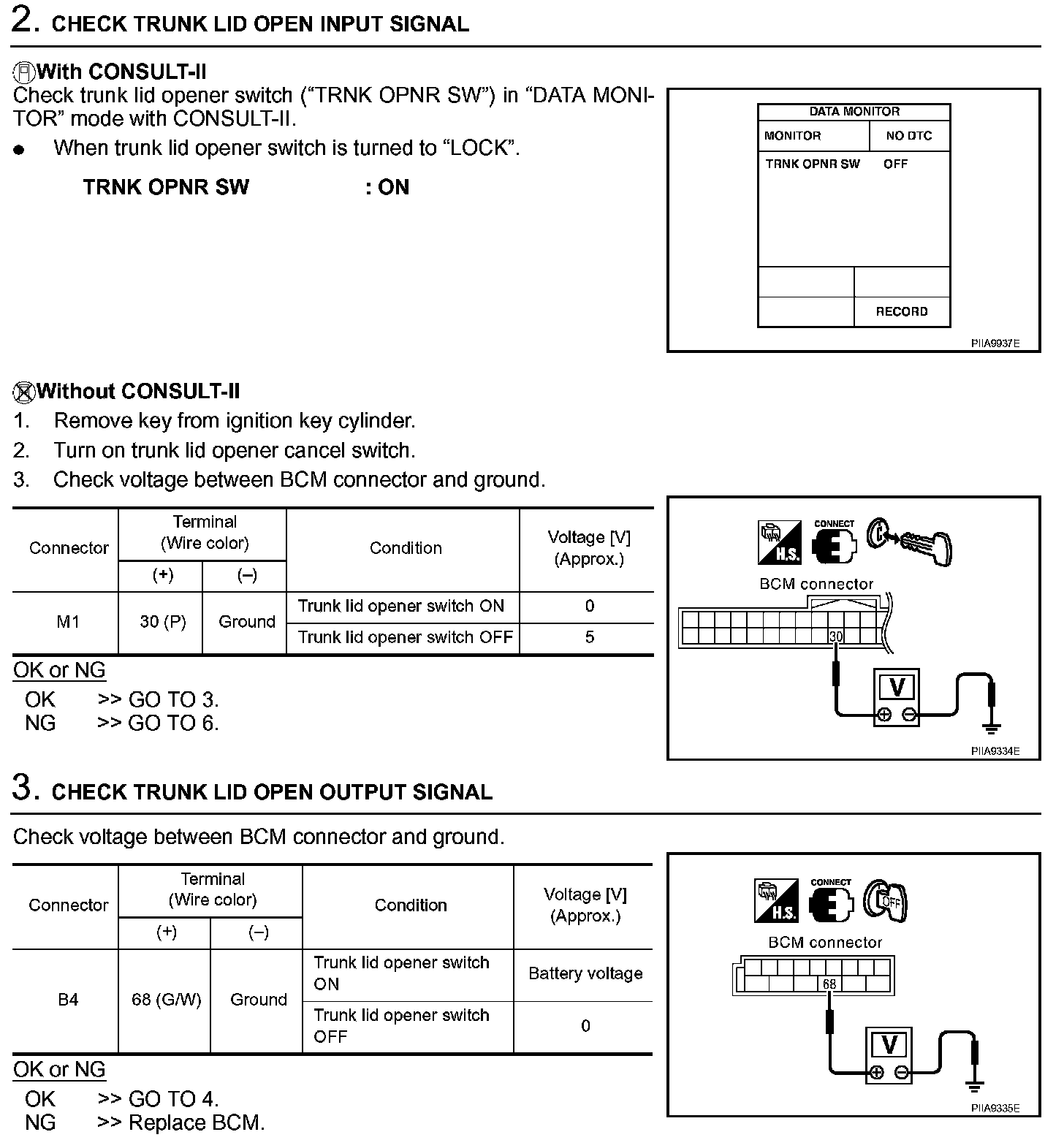

Trunk Does Not Open With Trunk LID Opener Switch / With Intelligent Key (Steps 2 - 3):

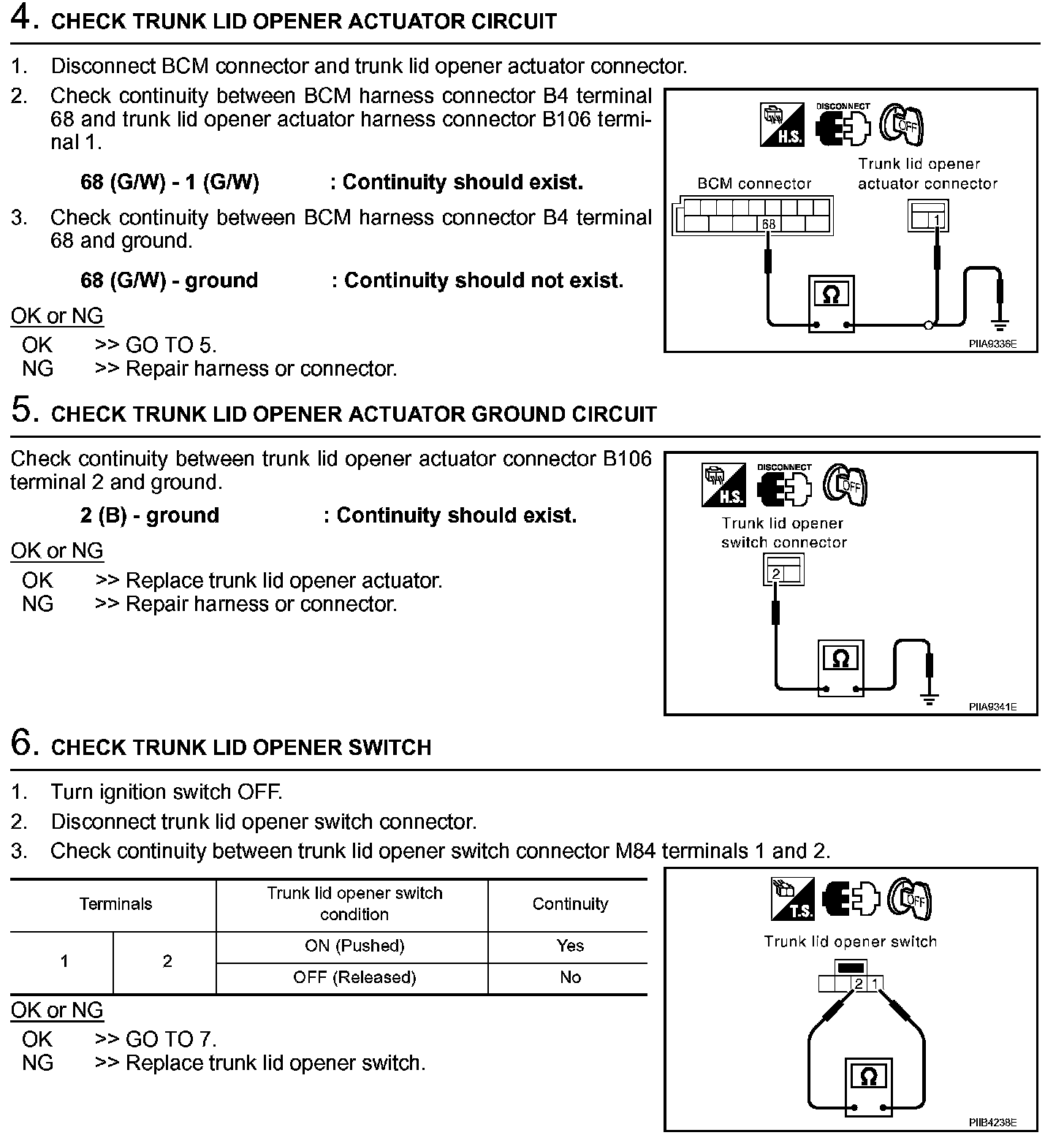

Trunk Does Not Open With Trunk LID Opener Switch / With Intelligent Key (Steps 4 - 6):

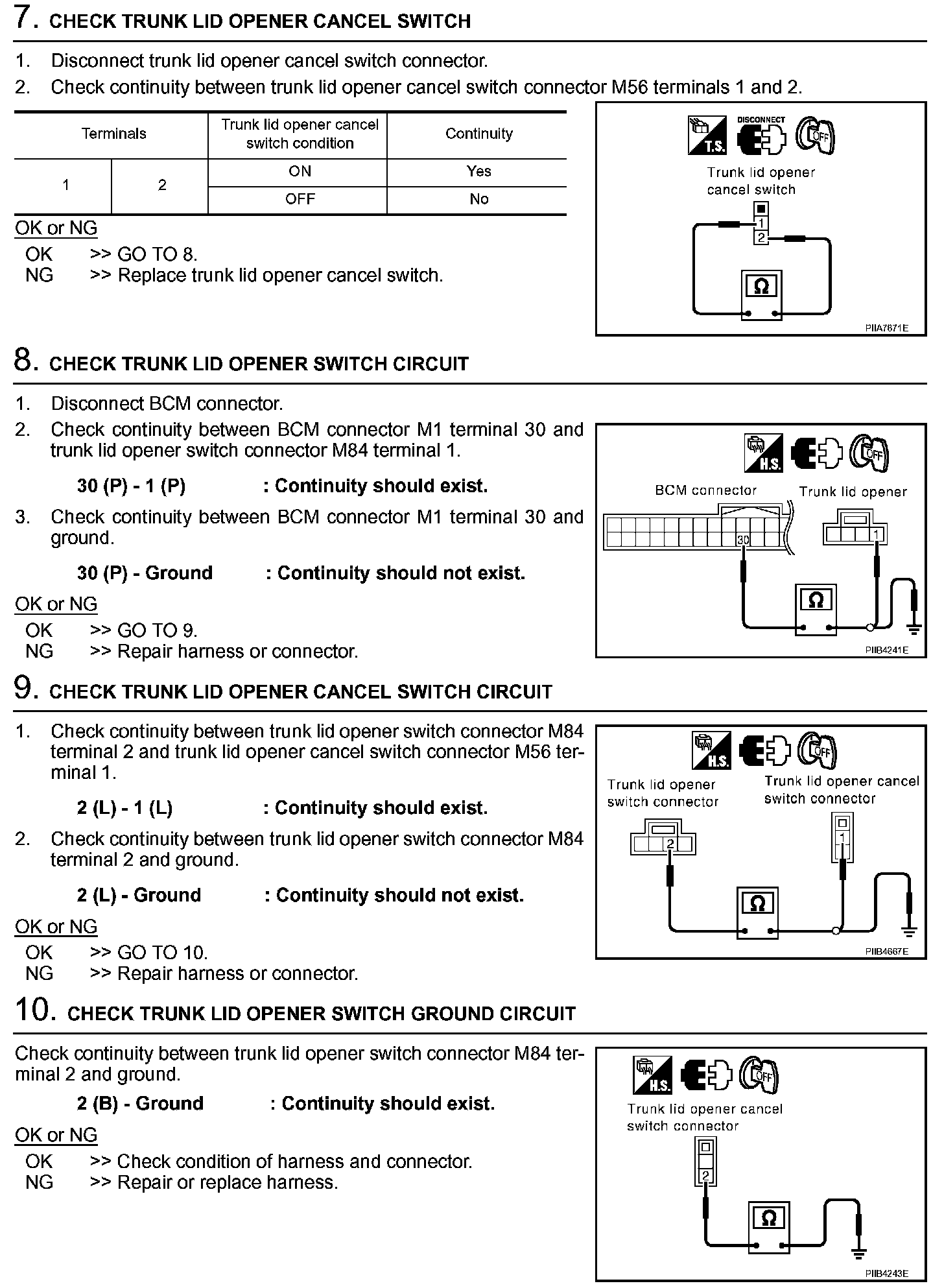

Trunk Does Not Open With Trunk LID Opener Switch / With Intelligent Key (Steps 7 - 10):
