Cowl: Service and Repair

COWL TOP

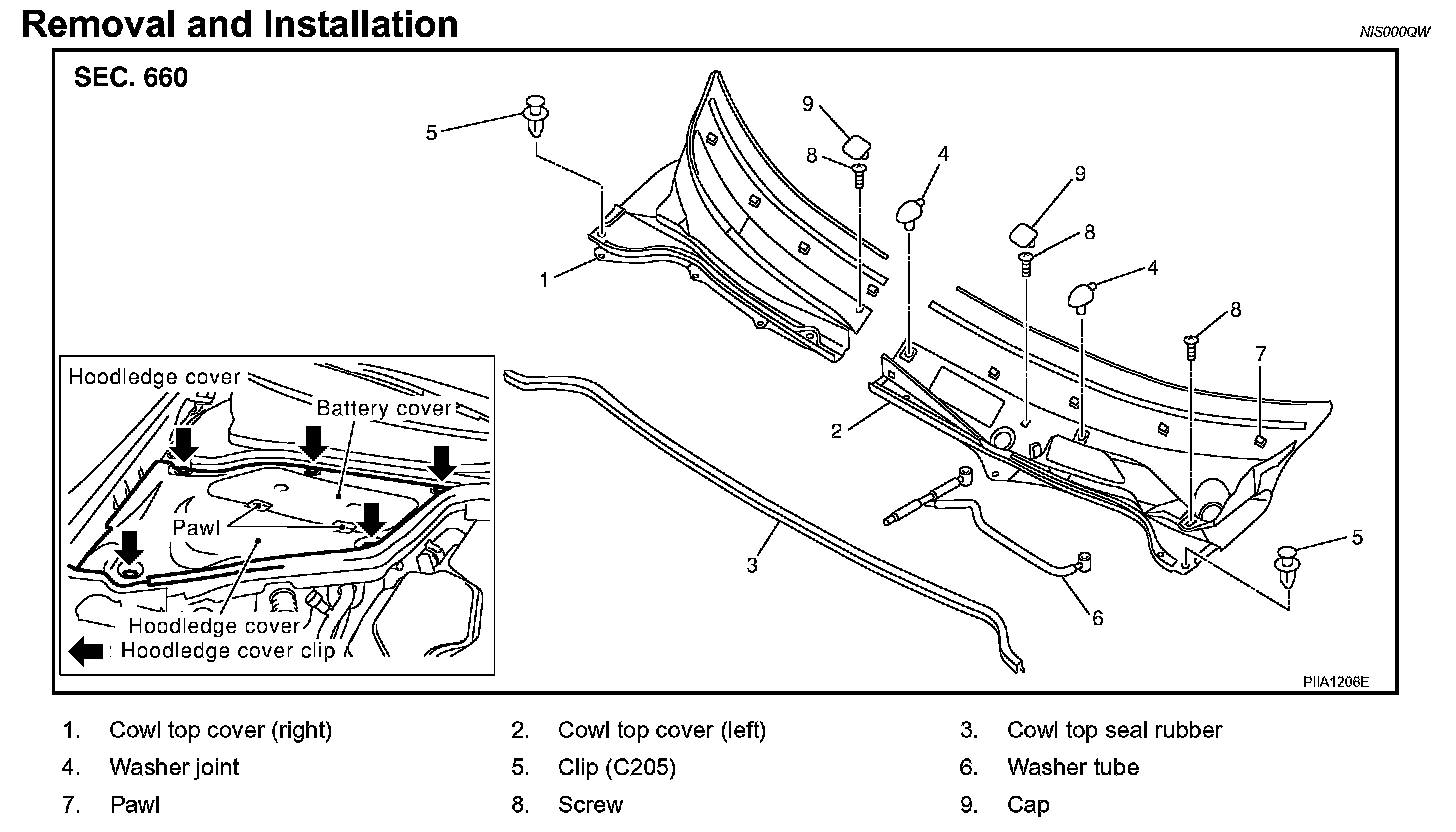

Removal and Installation

REMOVAL
1. Remove hoodledge cover.
2. Remove both right/left wiper arms. Refer to "Removal and Installation of Front Wiper Arms, Adjustment of Wiper Arms Stop Location".
3. Remove cowl top seal rubber.
4. Remove clips, cap of cowl top cover and remove cowl top cover (right).
5. Remove clips, cap, screws and remove cowl top cover (left).
6. Remove washer nozzles and hose from cowl top cover.

INSTALLATION
Install in the reverse order of removal.

CAUTION: After installing, perform adjustment of wiper arm. Refer to "Removal and Installation of Front Wiper Arms, Adjustment of Wiper Arms Stop Location".
