Access Cover: Service and Repair

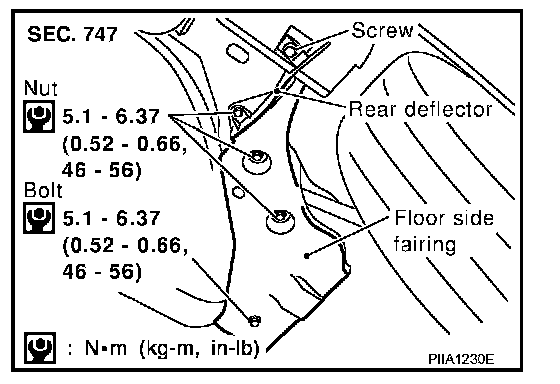

FLOOR SIDE FAIRING




Removal and Installation

REMOVAL
1. Remove bolt, nut and screws of floor side fairing.
2. Remove floor fairing.

INSTALLATION
Install in the reverse order of removal.
