Curiosii for ever!: Car repair manuals for everyone.
Home >> Infiniti >> 2006 >> G35x Sedan AWD V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Vehicle Immobilizer System >> Symptom Matrix Chart

Symptom Matrix Chart

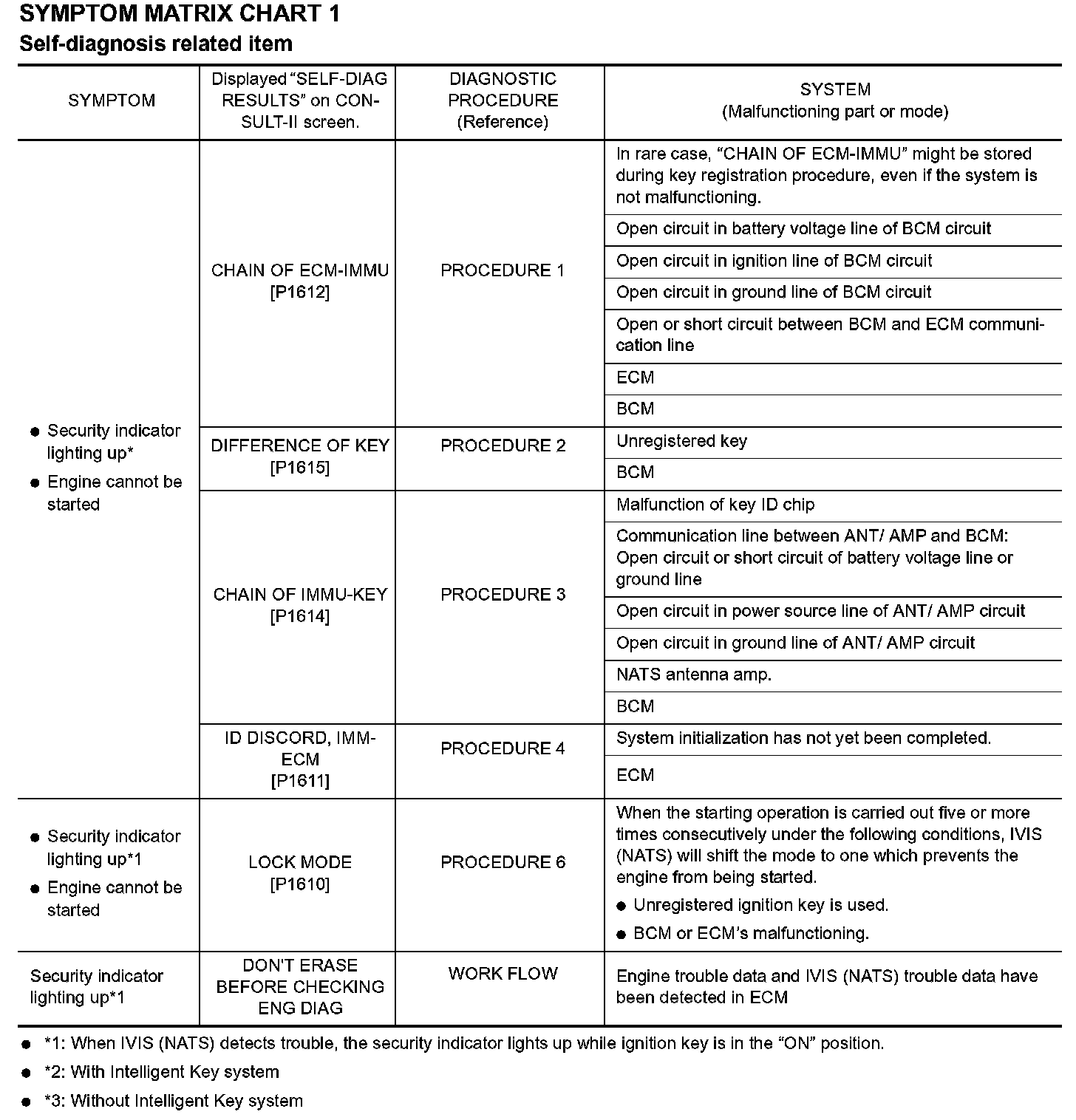

Symptom Matrix Chart 1:

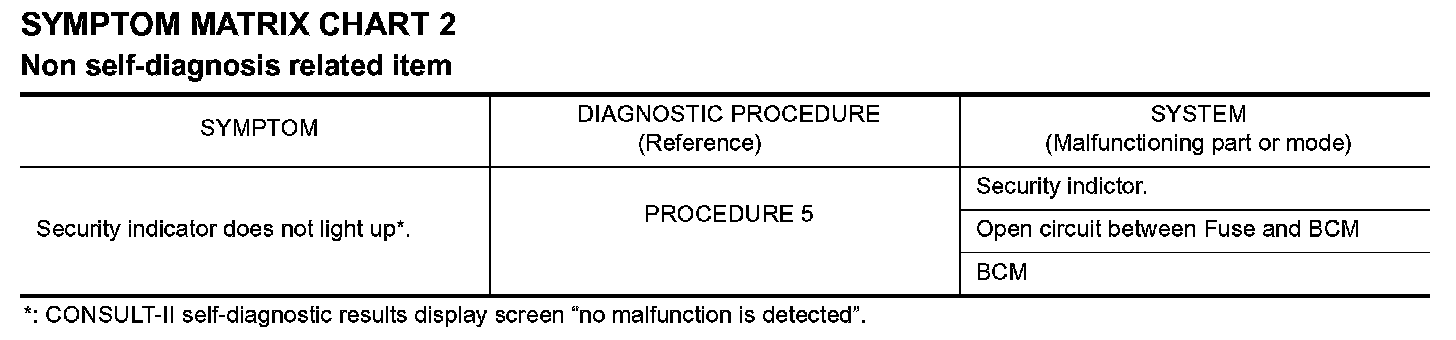

Symptom Matrix Chart 2:
