Disassembly and Assembly

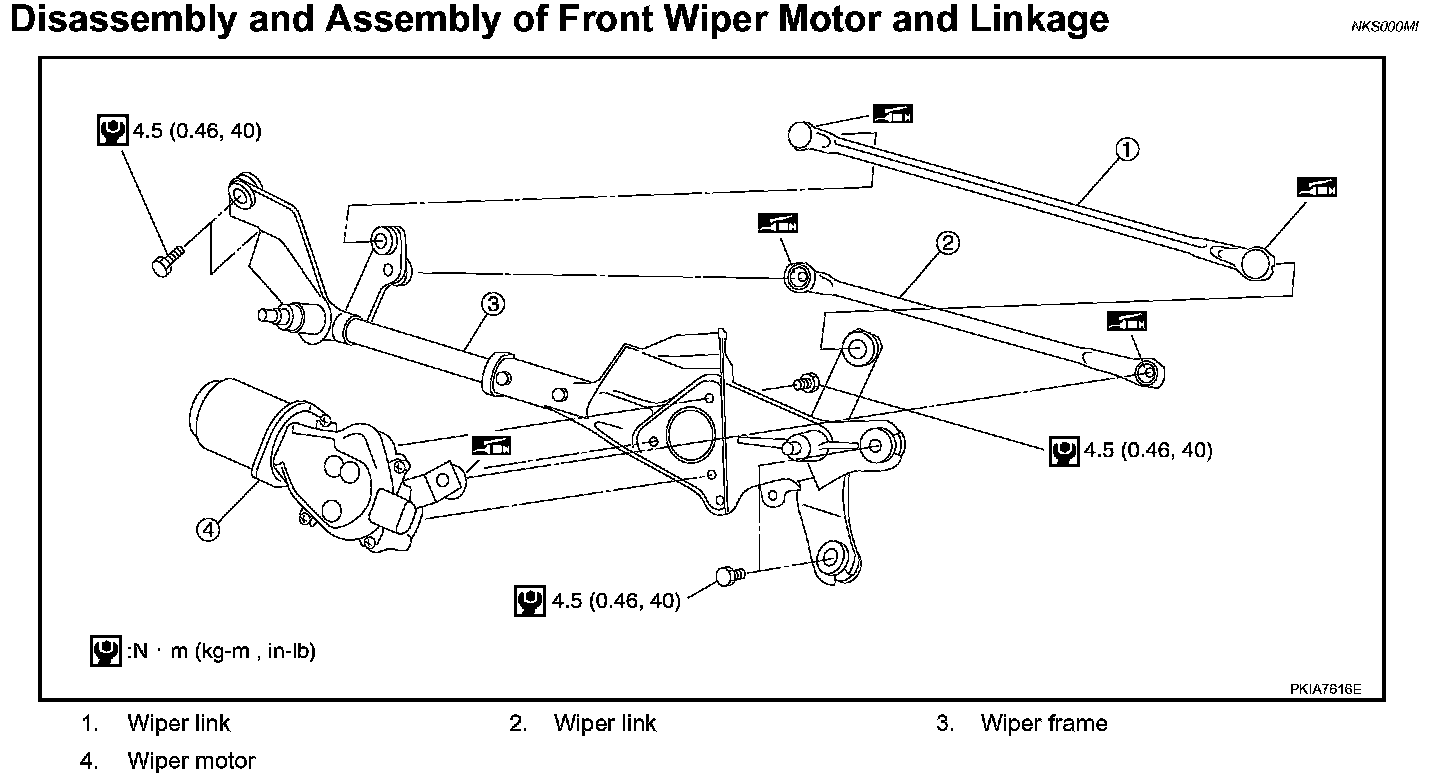

Disassembly and Assembly of Front Wiper Motor and Linkage

DISASSEMBLY
1. Remove wiper link from wiper frame and wiper motor arm.
2. Remove wiper motor mounting bolts, and remove wiper motor from wiper frame.

ASSEMBLY
Assembly is the reverse order of disassembly.

Wiper motor bolts torque : 4.5 N.m (0.46 kg-m, 40 in-lb)
