Shift Cable: Adjustments

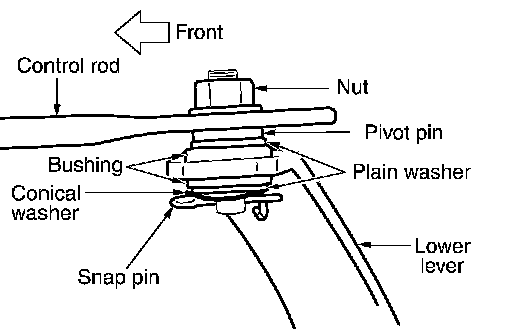

Adjustment of A/T Position
1. Loosen nut of pivot pin.
2. Place PNP switch and selector lever in P position.
3. While pressing lower lever toward rear of vehicle (in P position direction), tighten nut to specified torque.
1. Loosen nut of pivot pin.
2. Place PNP switch and selector lever in P position.
3. While pressing lower lever toward rear of vehicle (in P position direction), tighten nut to specified torque.
