Seals and Gaskets: Service and Repair

Rear Oil Seal
REMOVAL





1. Remove exhaust front tube and center muffler with power tool.
2. Remove rear propeller shaft.
3. Remove rear oil seal using a flat-bladed screwdriver.

CAUTION: Be careful not to scratch rear extension assembly.

INSTALLATION

CAUTION: After completing installation, check A/T fluid leakage and A/T fluid level.

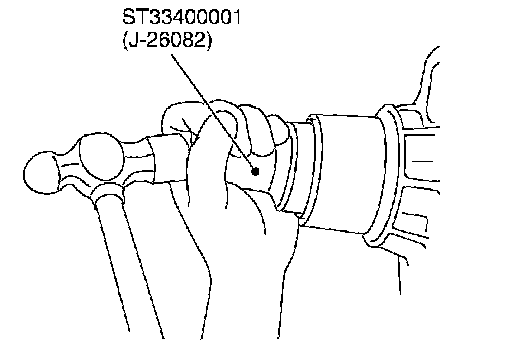

1. As shown in the figure, use the drift to drive rear oil seal into rear extension assembly until it is flush.

CAUTION:
^ Do not reuse rear oil seal.
^ Apply ATF to rear oil seal.

2. Install rear propeller shaft.
3. Install exhaust front tube and center muffler.
