DISASSEMBLY
Remove all parts from jacket tube assembly.

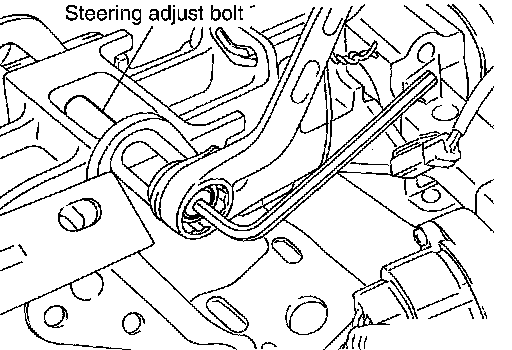

^ When remove tilt lever, perform as shown in the figure.

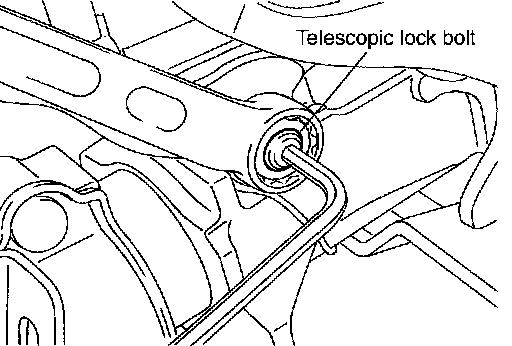

^ When remove telescopic lever, perform as shown in the figure.

INSPECTION AFTER DISASSEMBLY
Check tilt and telescopic mechanism components for malfunction. Replace if there are.

ASSEMBLY

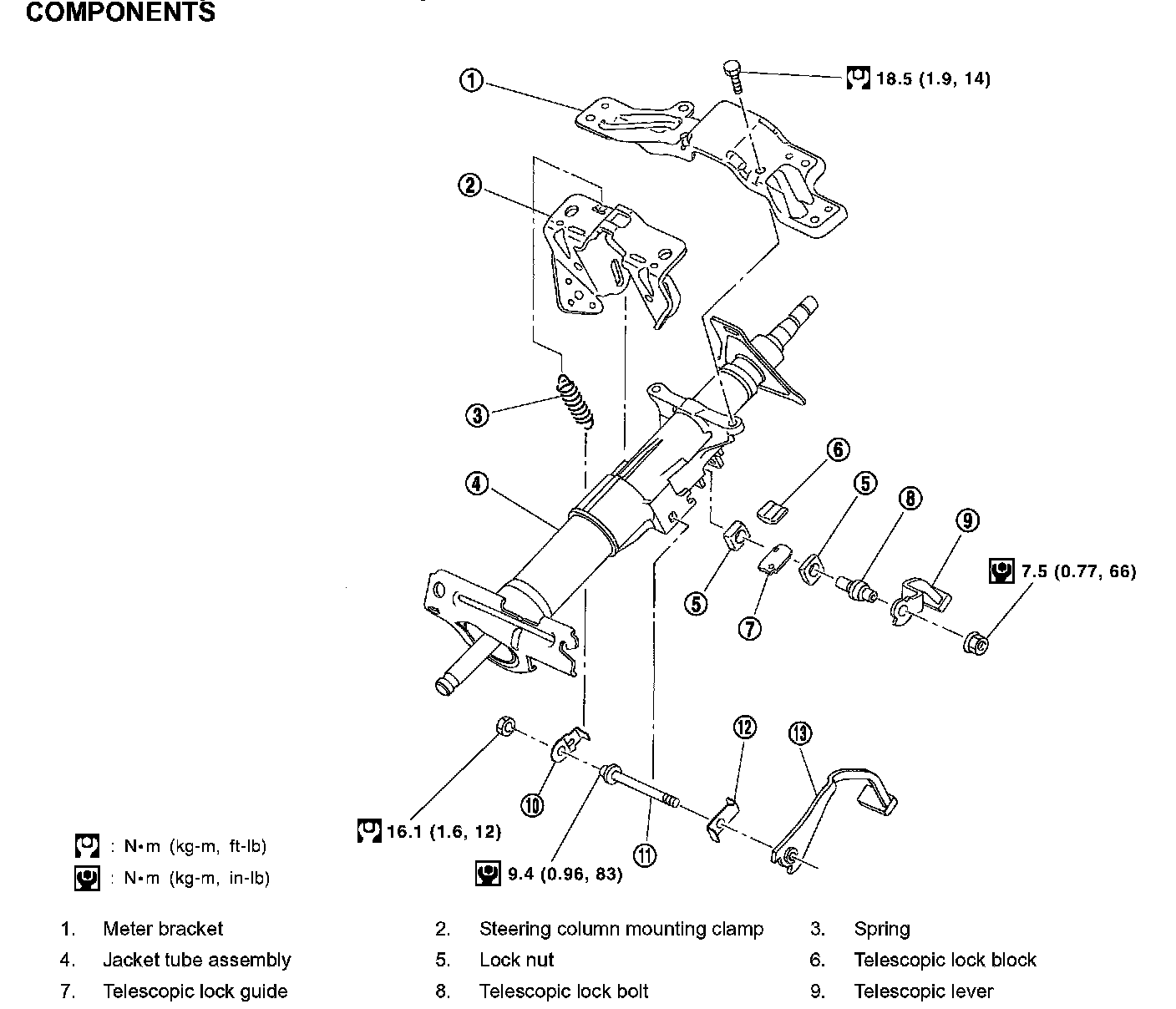

Assemble is the reverse order of the disassembly. For tightening torque, refer to PS-15, "COMPONENTS".

INSPECTION AFTER ASSEMBLY

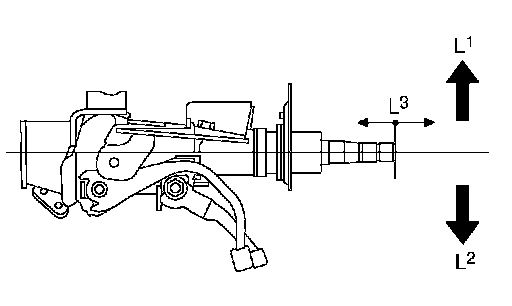

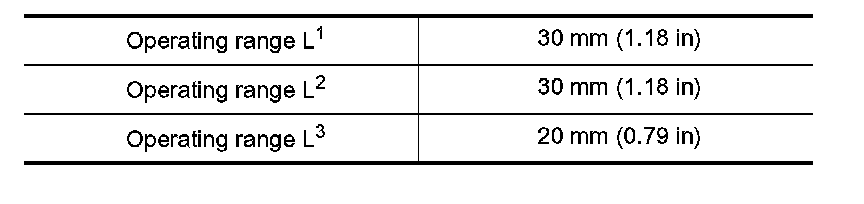

Check tilt and telescopic mechanism operating range.











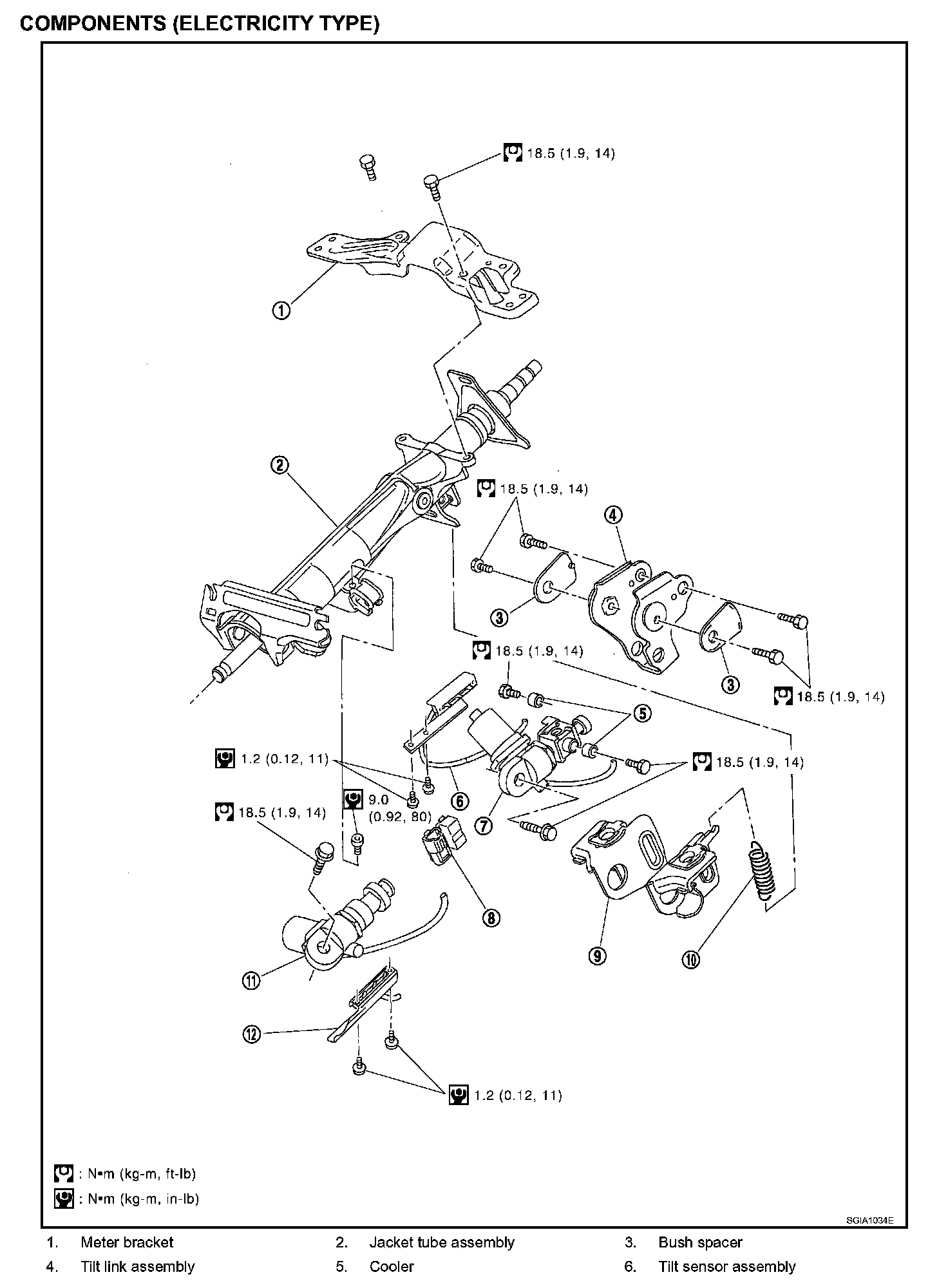

DISASSEMBLY
Remove parts from jacket tube assembly.

INSPECTION AFTER DISASSEMBLY
Check tilt and telescopic mechanism components for malfunction. Replace if there are.

ASSEMBLY
Assemble is the reverse order of the disassembly.

INSPECTION AFTER ASSEMBLY

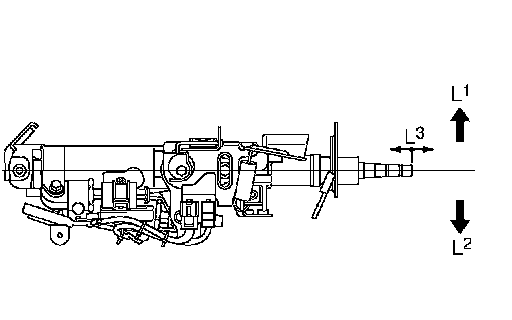

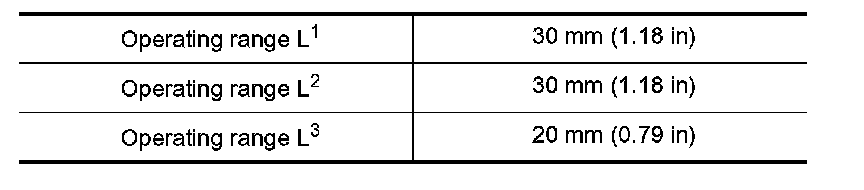

Check tilt and telescopic mechanism operating range.
