G35 Coupe V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Timing Components
>>
Timing Chain Tensioner
Timing Chain Tensioner
Timing Chain Tensioner

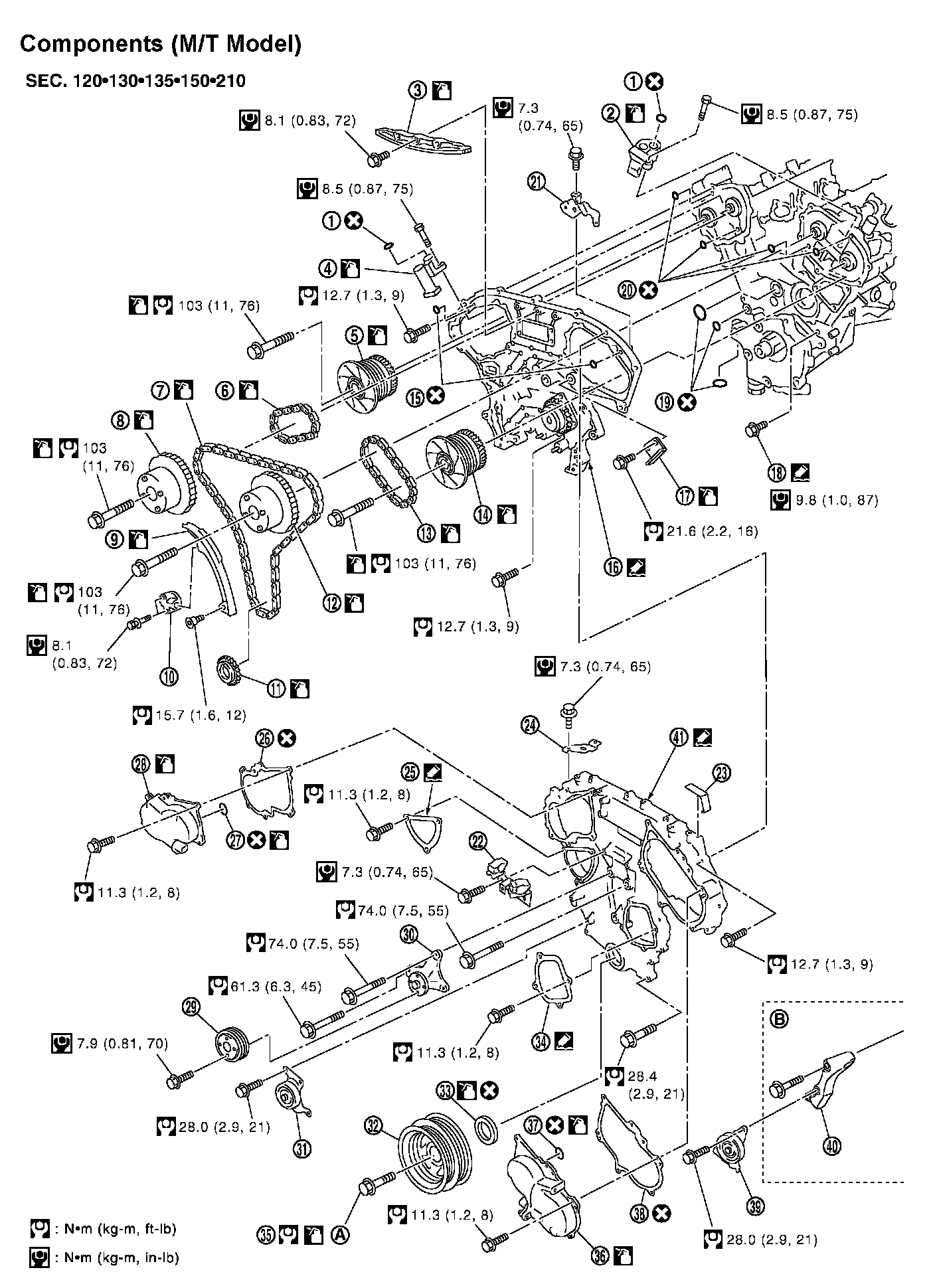

M/T Model

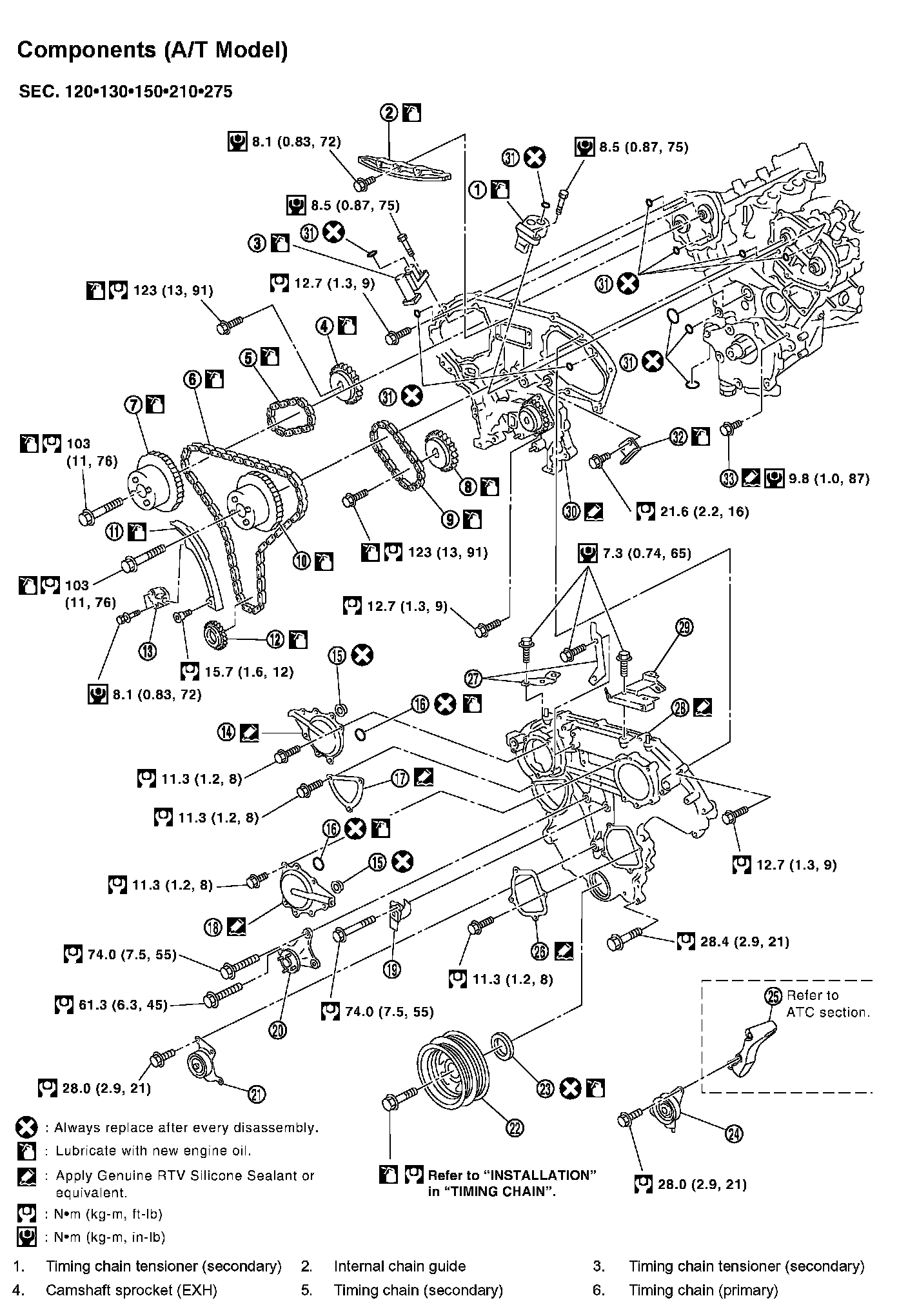

A/T Model
Image Symbols:
