Oil Pan, Engine

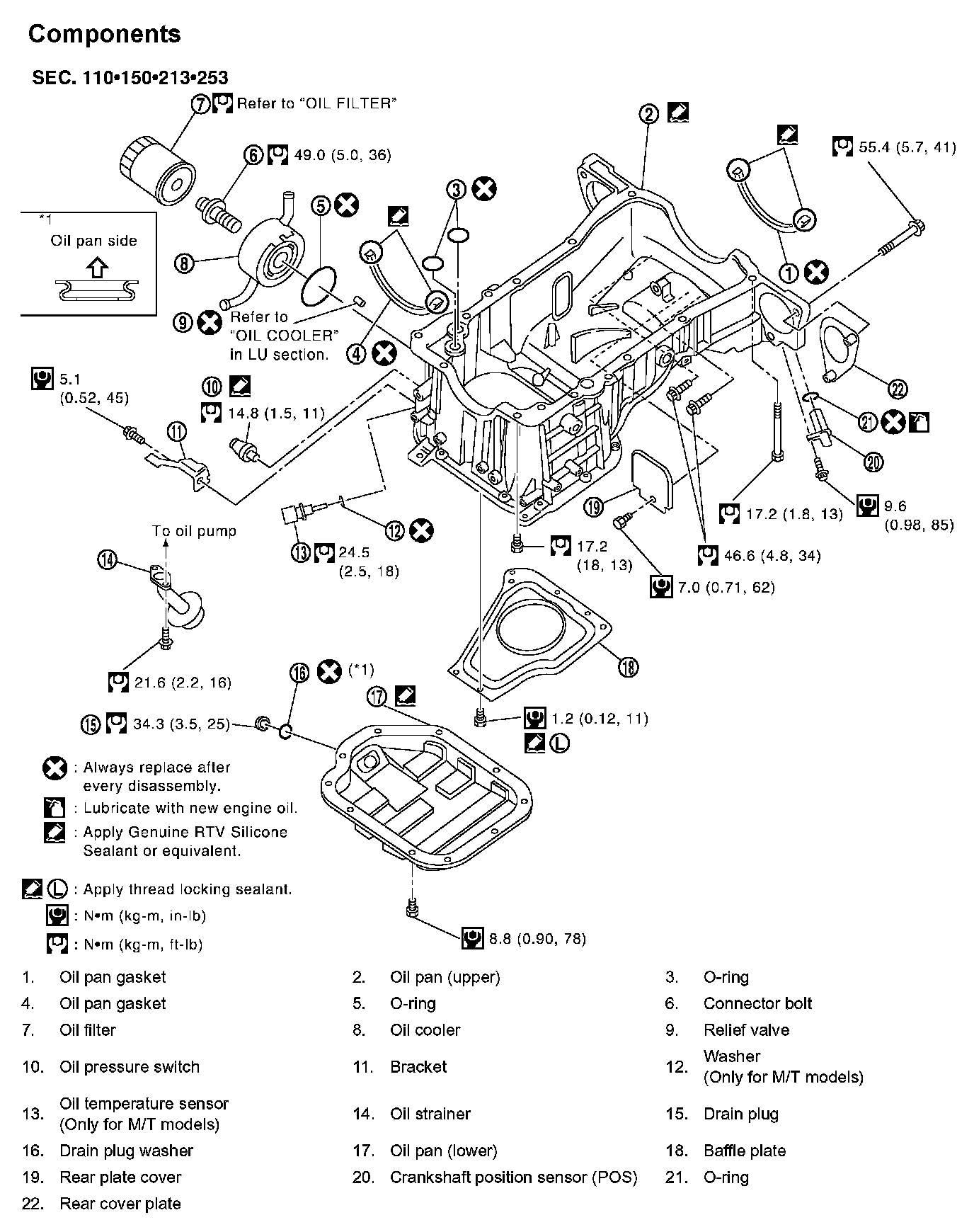

Oil Pan

Image Symbols:

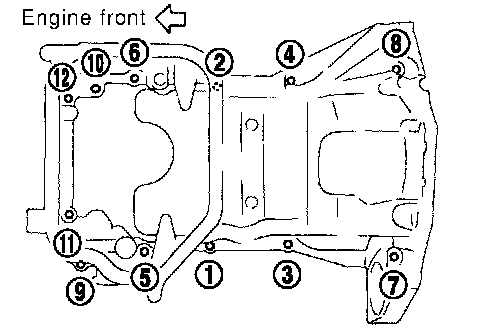

(upper)





^ Tighten bolts in numerical order as shown in the figure.
^ There are two types of mounting bolts. Refer to the following for locating bolts.
M8 x 100 mm (3.97 inch): 5, 7, 8, 11
M8 x 25 mm (0.98 inch): Except the above

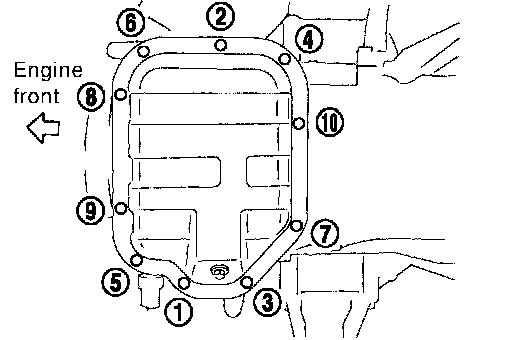

(lower)





^ Tighten mounting bolts in numerical order as shown in the figure.
