Top Tether Strap Child Restraint

TOP TETHER STRAP CHILD RESTRAINT

Removal and Installation

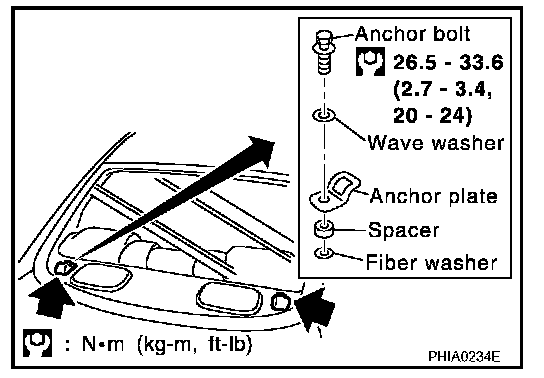

CAUTION: Replace anchor bolts if they are deformed or worn out.

REMOVAL




1. Remove the top tether strap child restraint cover.
2. Remove the top tether strap child restraint.

INSTALLATION
Install in the reverse order of removal.
