Ignition Key Hole Illumination Control Does Not Operate

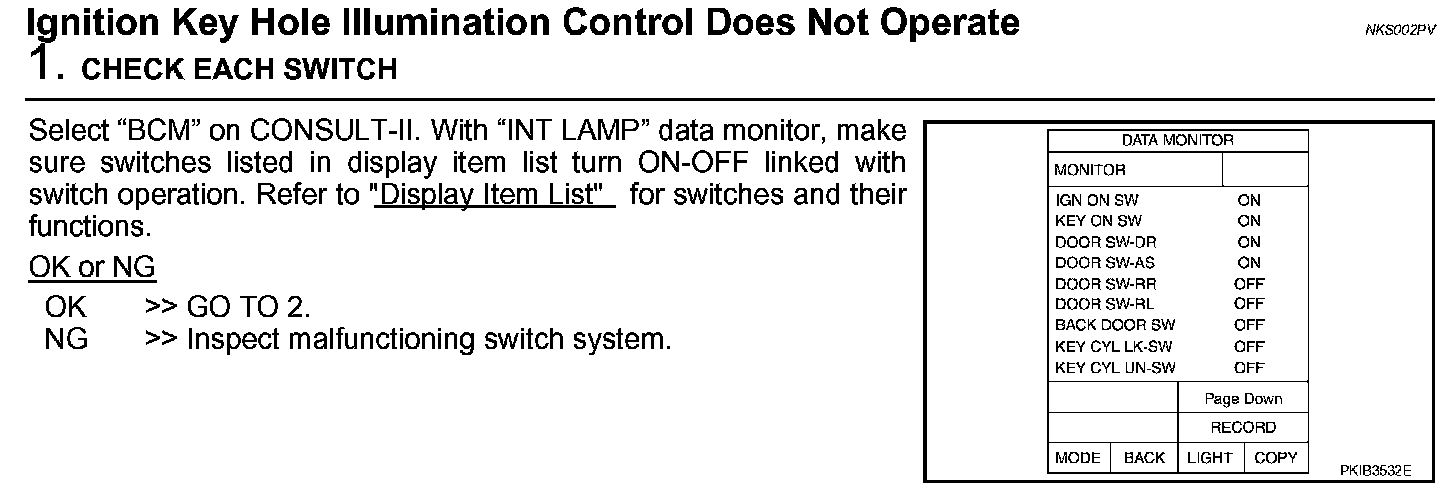

Ignition Key Hole Illumination Control Does Not Operate (Step 1):

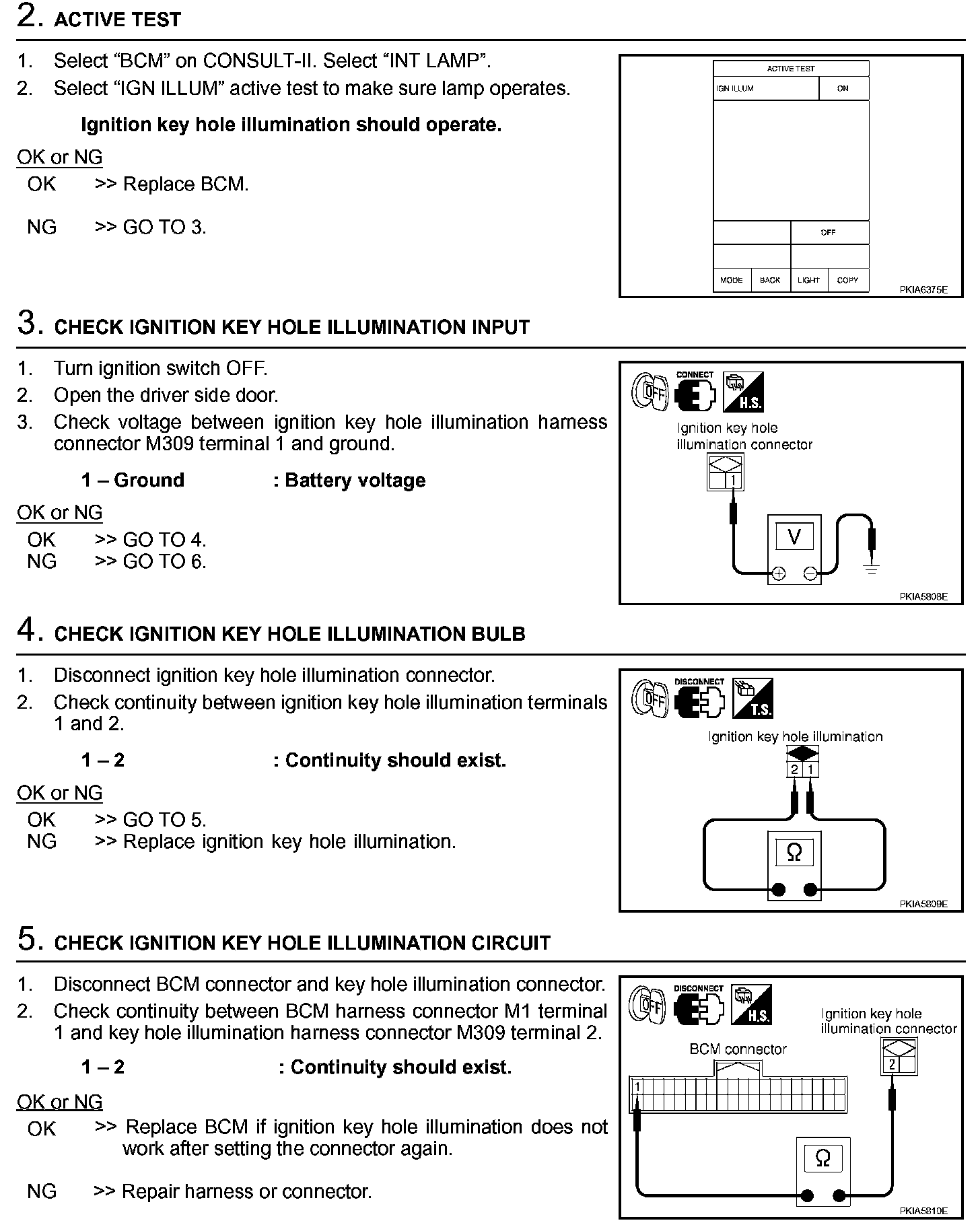

Ignition Key Hole Illumination Control Does Not Operate (Steps 2 - 5):

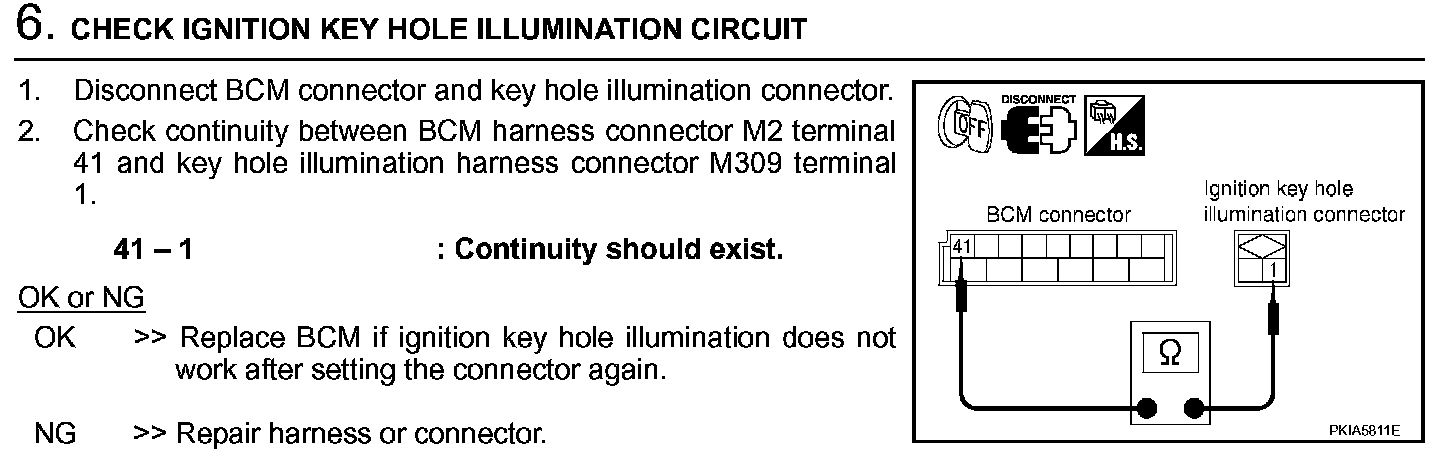

Ignition Key Hole Illumination Control Does Not Operate (Step 6):
