Courtesy Lamp: Service and Repair
Removal and InstallationMAP LAMP
Removal

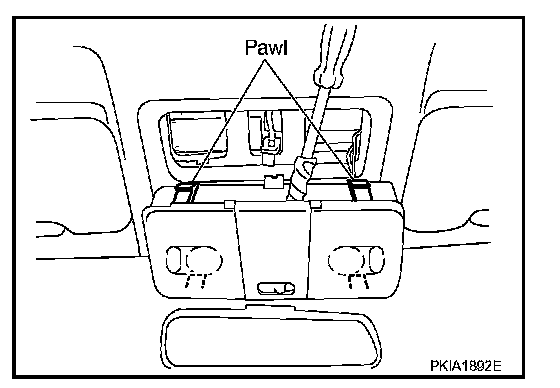

1. Insert a clip driver or a suitable tool and disengage the pawl fittings of the map lamp.
2. Disconnect connector and remove map lamp.
Installation
Installation is the reverse order of removal.
STEP LAMP
Removal
1. Remove clips which are lower part of front door finisher and lift finisher up.
2. Disconnect step lamp connector.

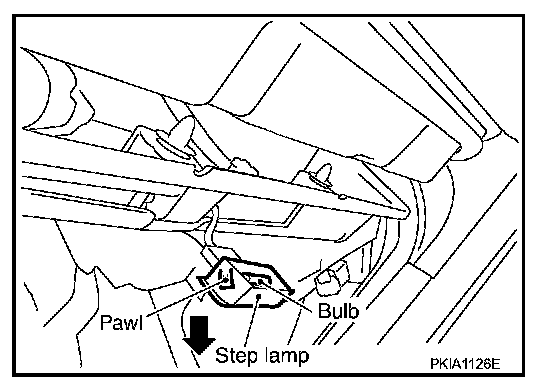

3. Press pawl on reverse side and remove the step lamp.
Installation
Installation is the reverse order of removal.
TRUNK ROOM LAMP
Removal

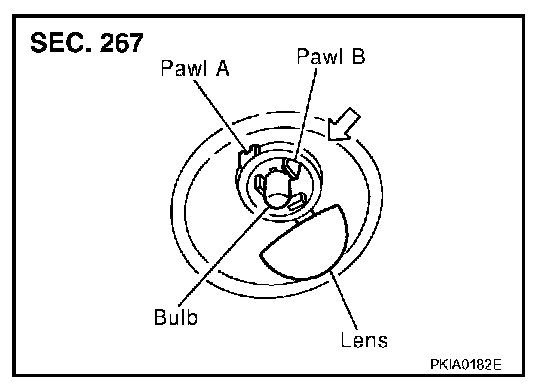

1. Unfold pawl A and remove lens.
2. Remove trunk room lamp while pressing pawl B in the direction of the arrow.
3. Disconnect trunk room lamp connector.
4. Installation is the reverse order of removal.
Installation
Installation is the reverse order of removal.
