Fuel Level Sensor Signal Inspection

Fuel Level Sensor Signal Inspection

Symptom:
- Fuel gauge indication is malfunction.
- Low-fuel warning lamp indication is irregular.

NOTE:
The following symptoms are not malfunction.

Fuel gauge
- Depending on vehicle position or driving circumstances the fuel in the tank varies and the pointer may fluctuate.
- If the vehicle is fueled with the ignition switch ON the pointer moves slowly.

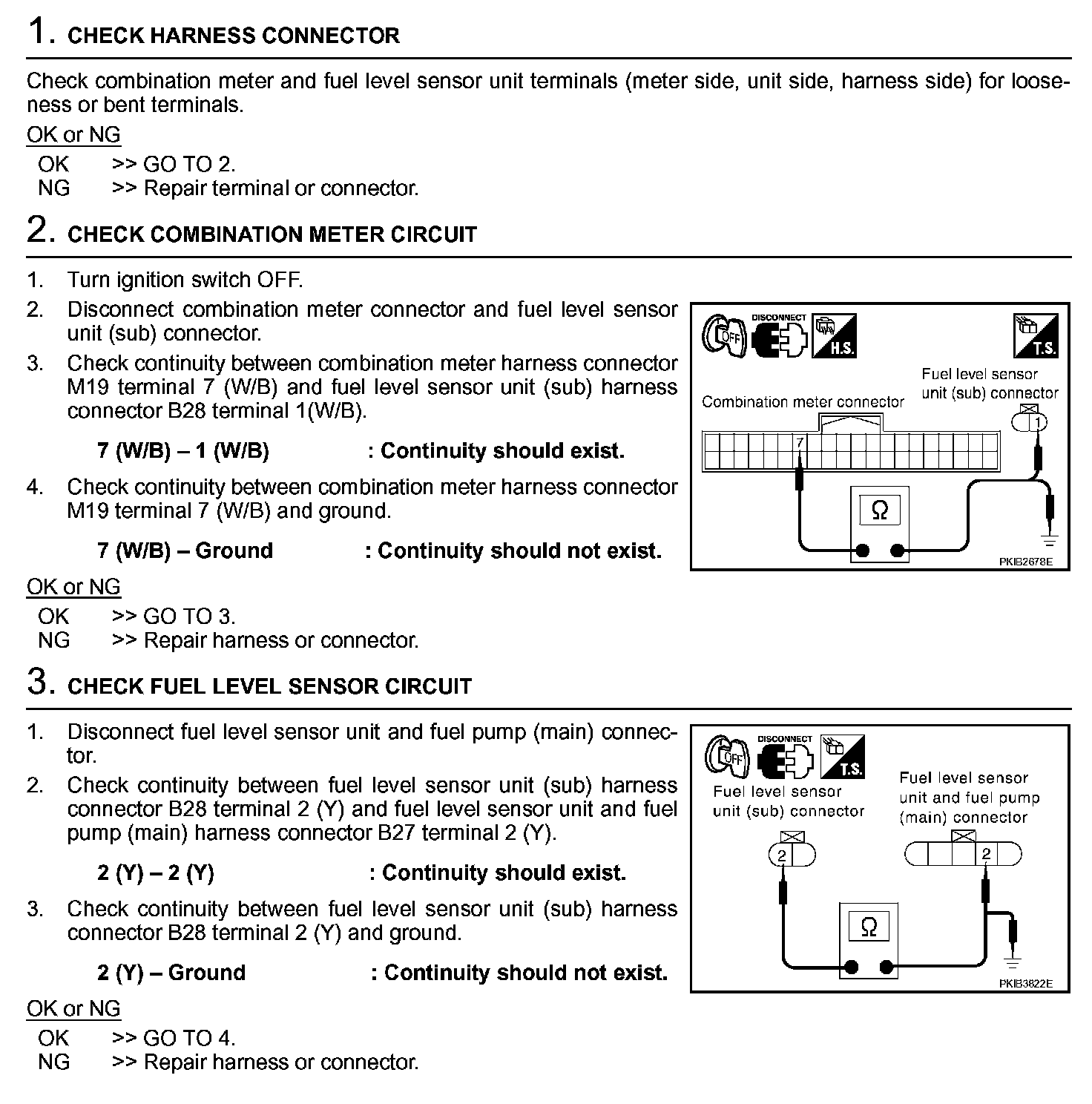

Fuel Level Sensor Signal Inspection (Steps 1 - 3):

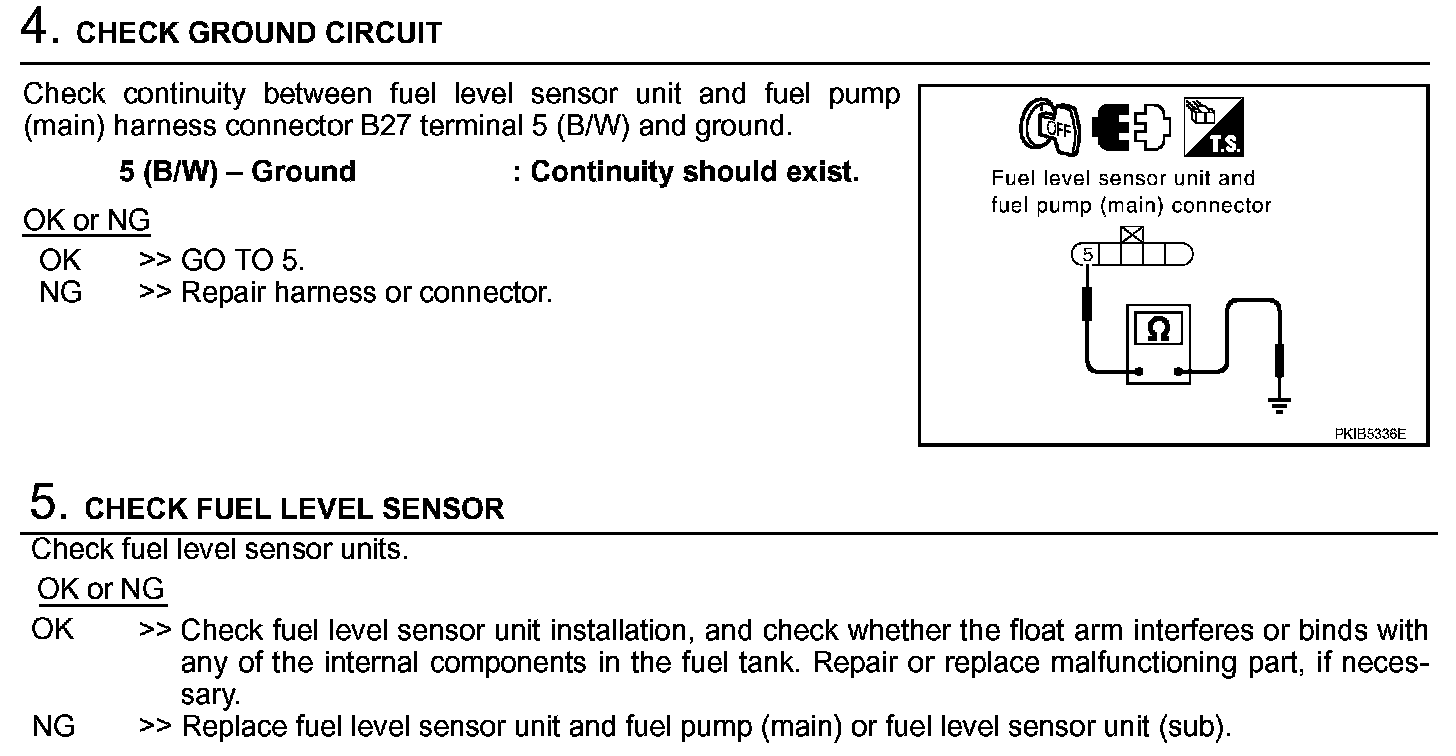

Fuel Level Sensor Signal Inspection (Steps 4 - 5):

Low-fuel warning lamp
- Depending on vehicle position or driving circumstances the fuel in the tank vanes and the warning lamp ON timing may change.
