Multiplex Communication Circuit

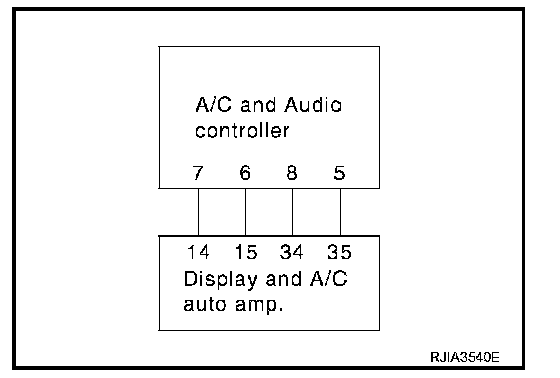

Multiplex Communication Circuit

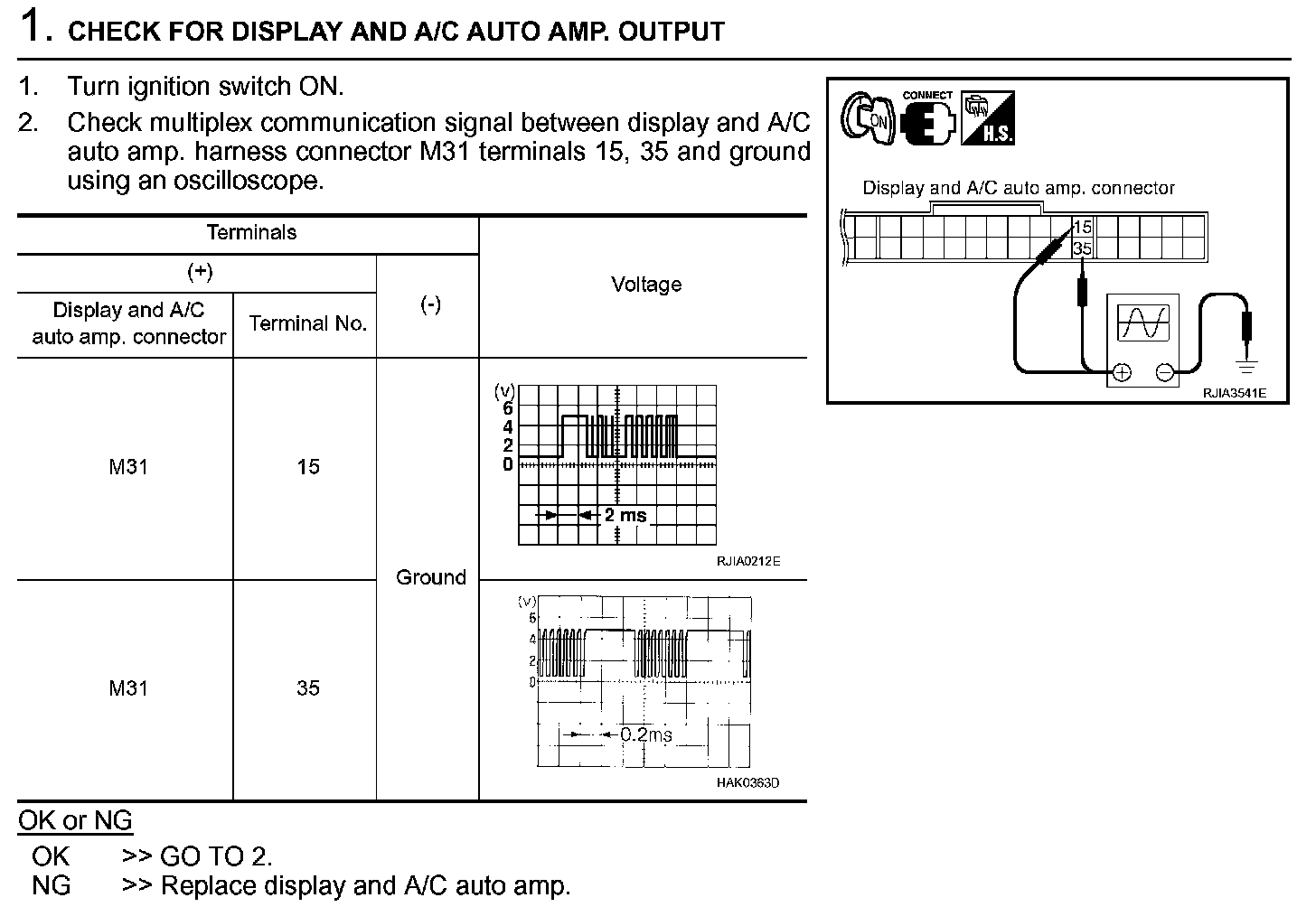

Diagnosis Procedure For Multiplex Communication (Step 1):

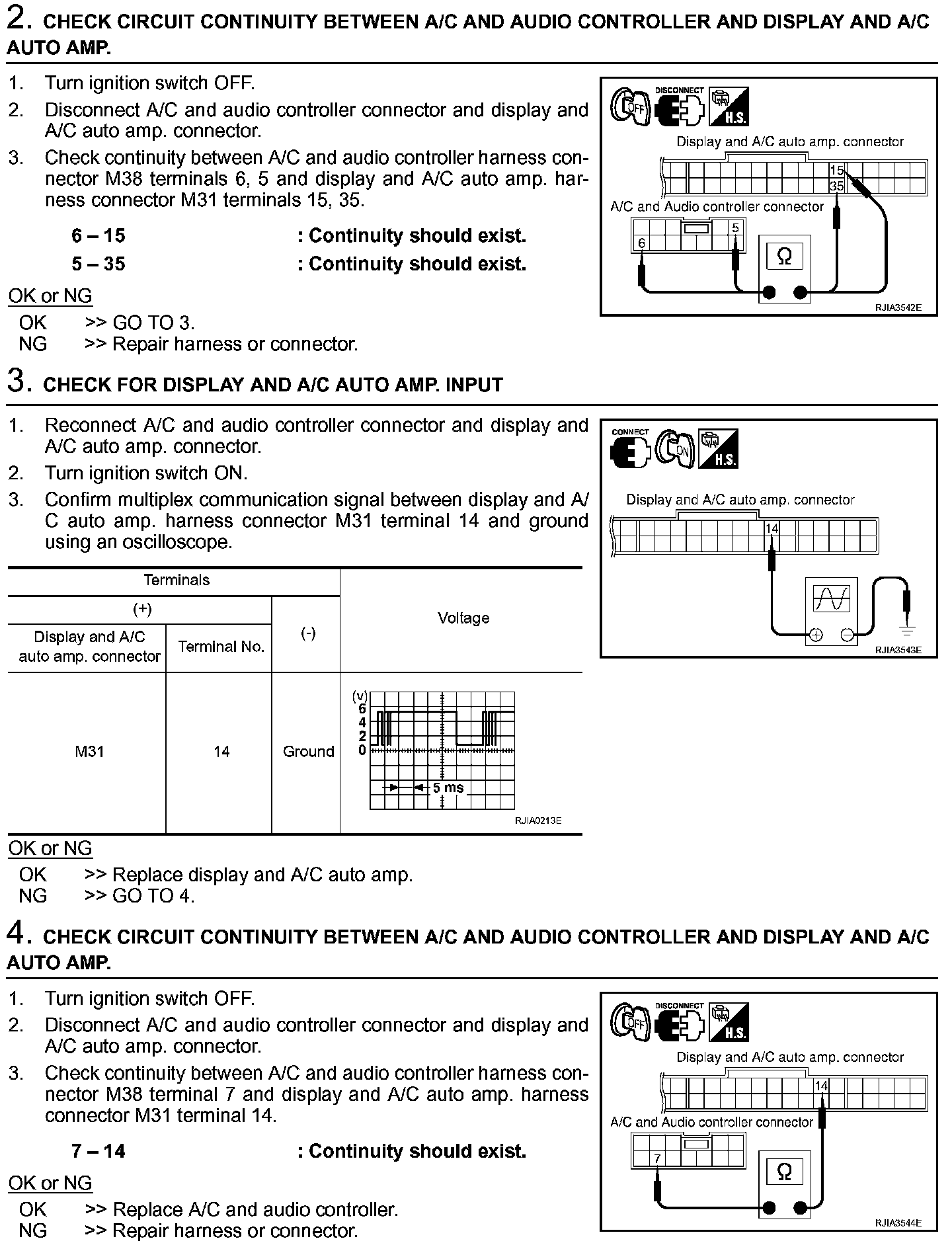

Diagnosis Procedure For Multiplex Communication (Steps 2 - 4):




DIAGNOSIS PROCEDURE FOR MULTIPLEX COMMUNICATION
SYMPTOM: A/C system cannot be controlled.
