Home >> Infiniti >> 2006 >> G35 Coupe V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Housing Assembly HVAC >> Service and Repair >> Disassembly and Assembly

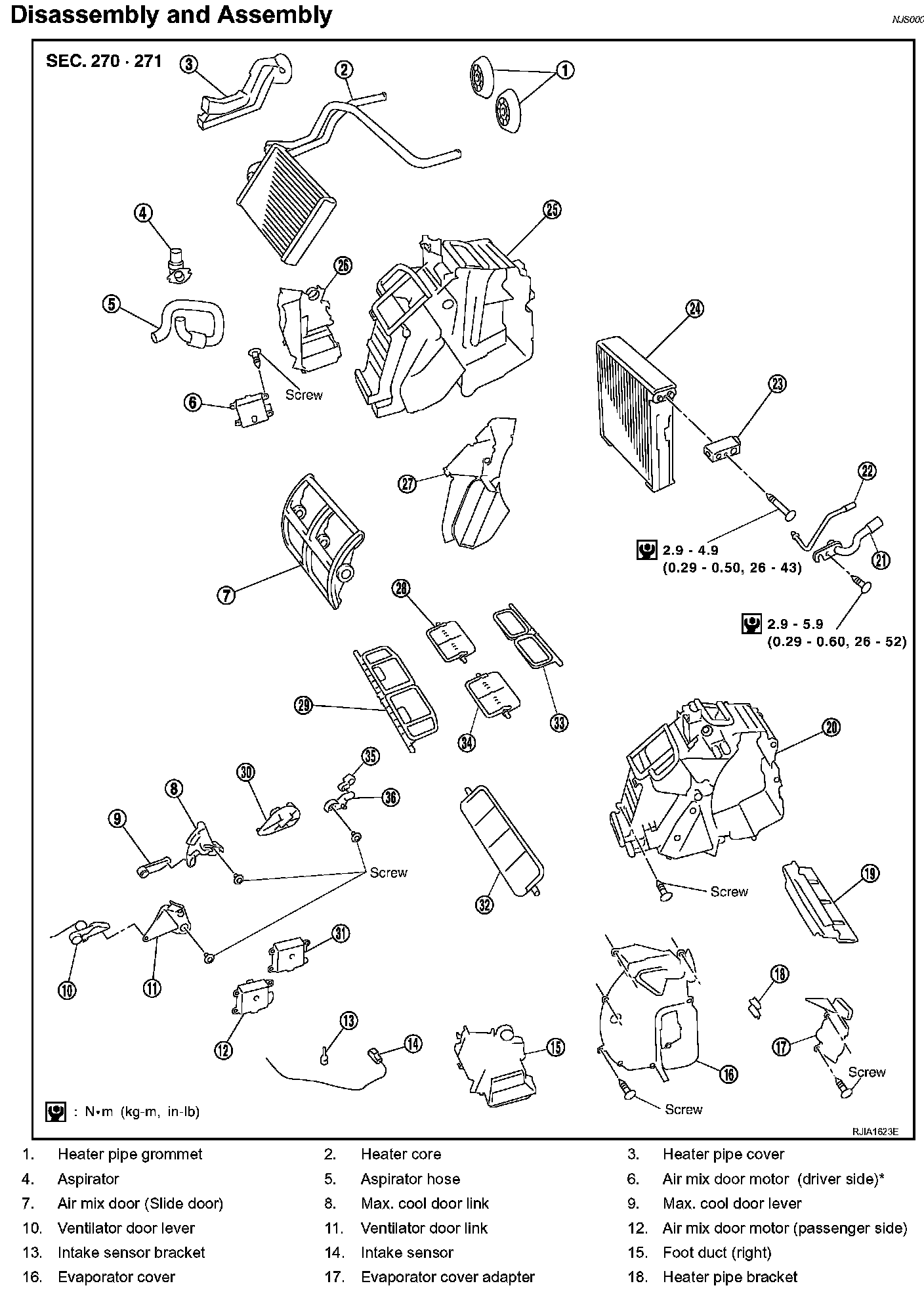

Disassembly and Assembly

Part 1:

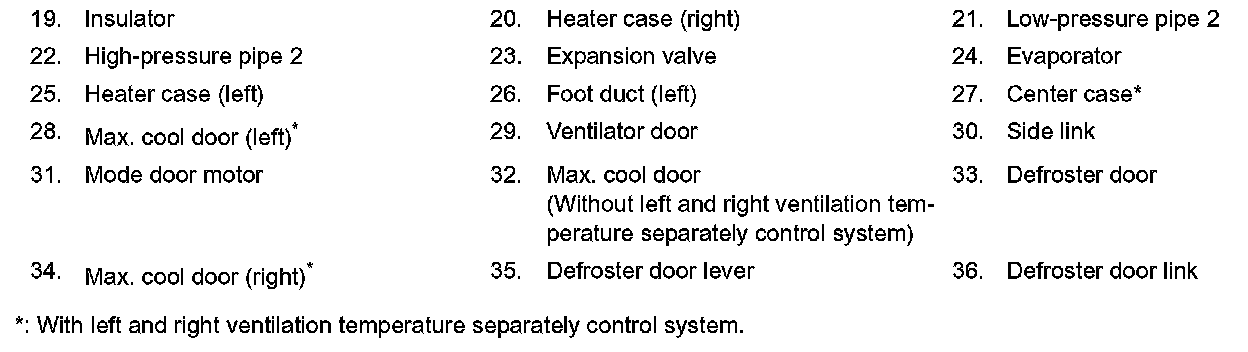

Part 2:
