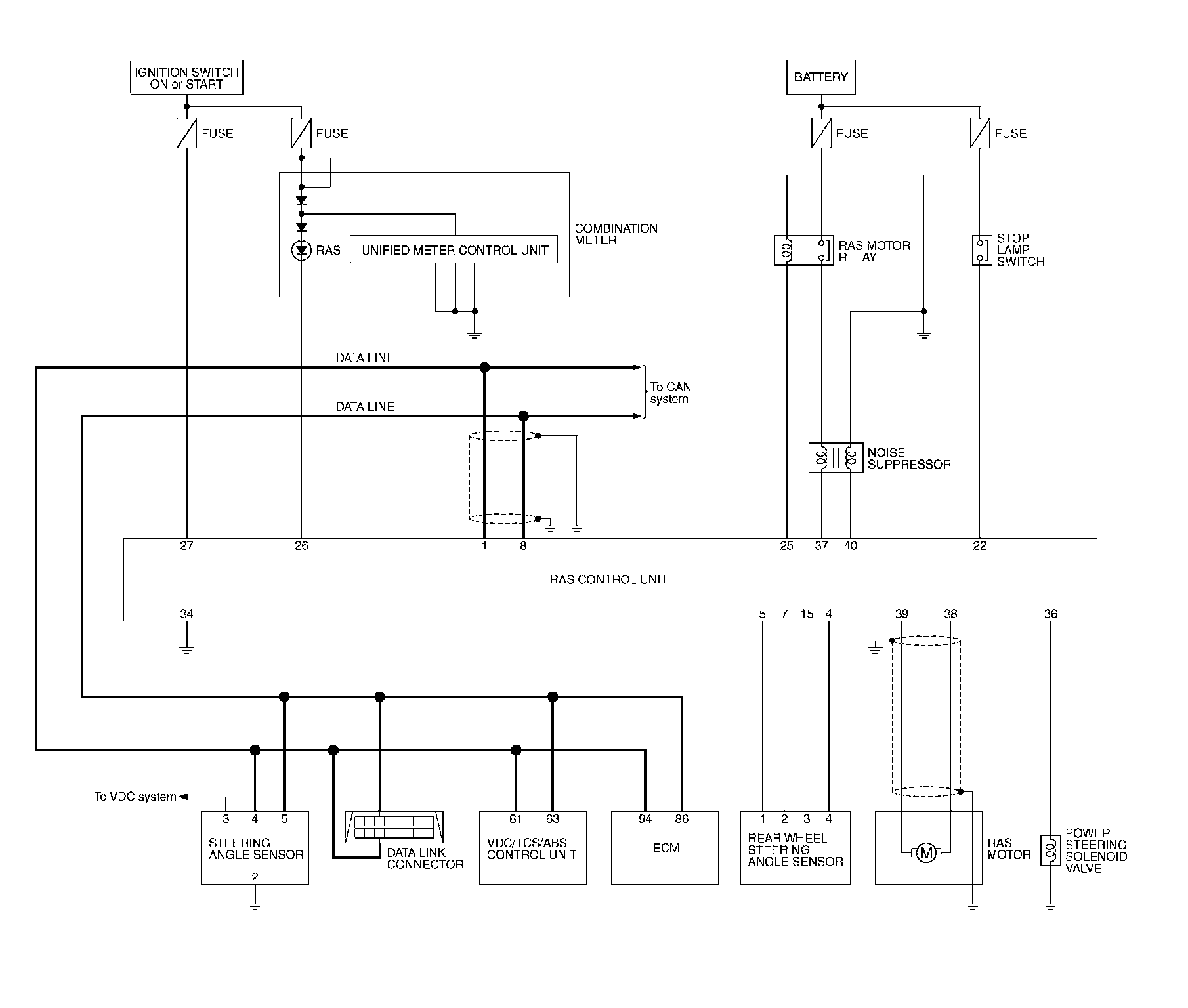

Steering Control System Schematic
Steering Control System Schematic
Steering Control System Schematic:
