Check Passenger Seat Control Unit Power Supply and Ground Circuit

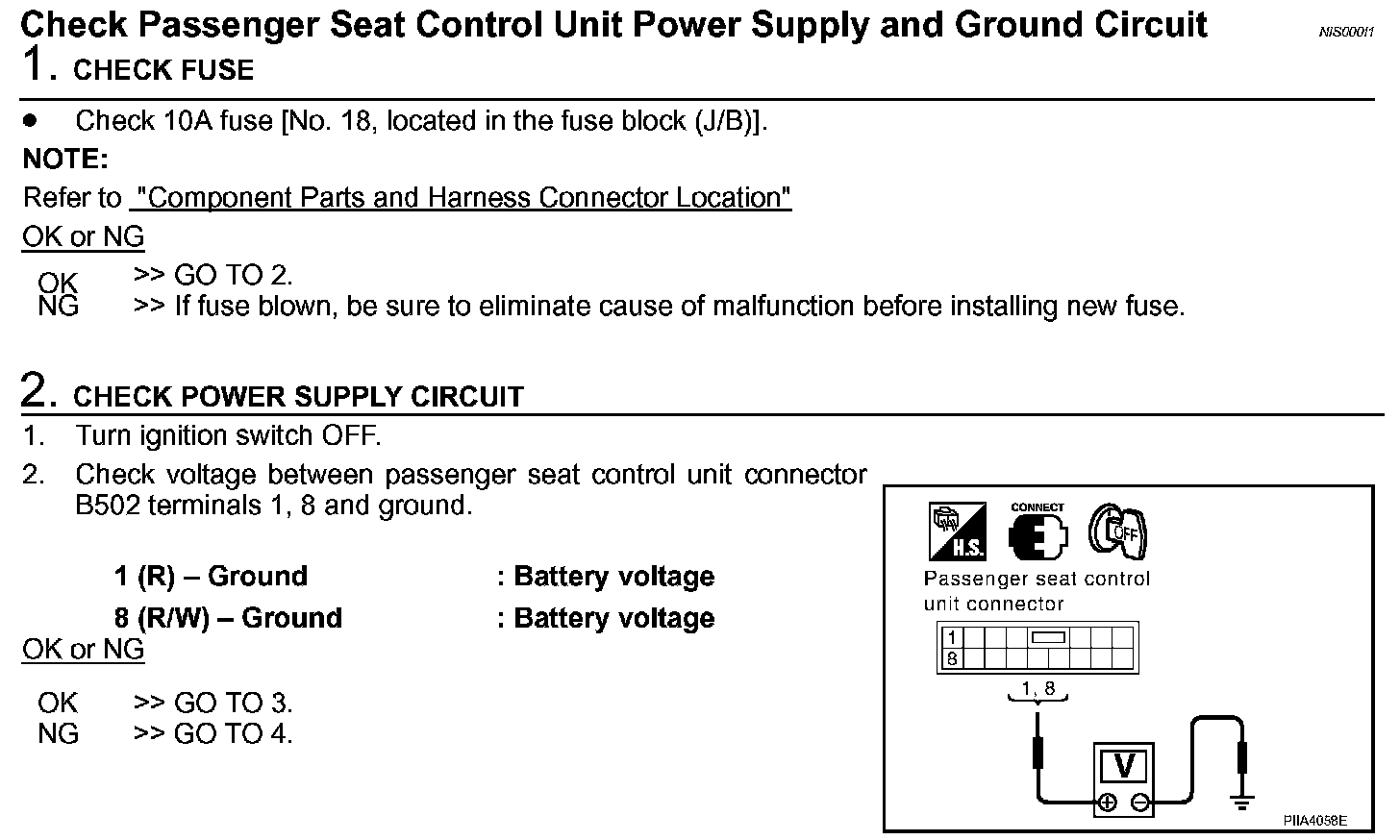

Check Passenger Seat Control Unit Power Supply And Ground Circuit (Steps 1 - 2):

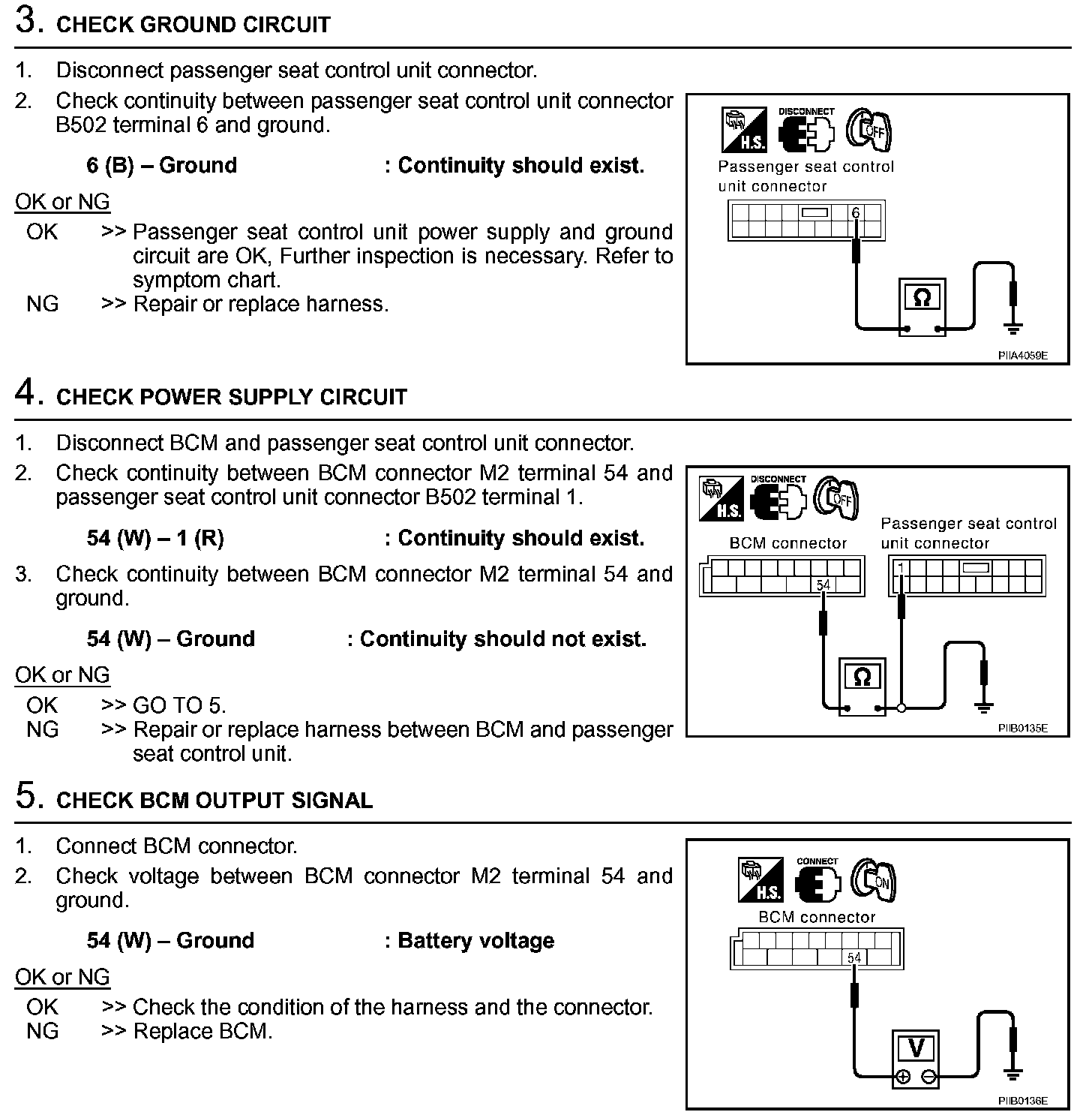

Check Passenger Seat Control Unit Power Supply And Ground Circuit (Steps 3 - 5):
