Home >> Infiniti >> 2006 >> G35 Coupe V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Intelligent Key System >> Terminals and Reference Value For Steering Lock Unit

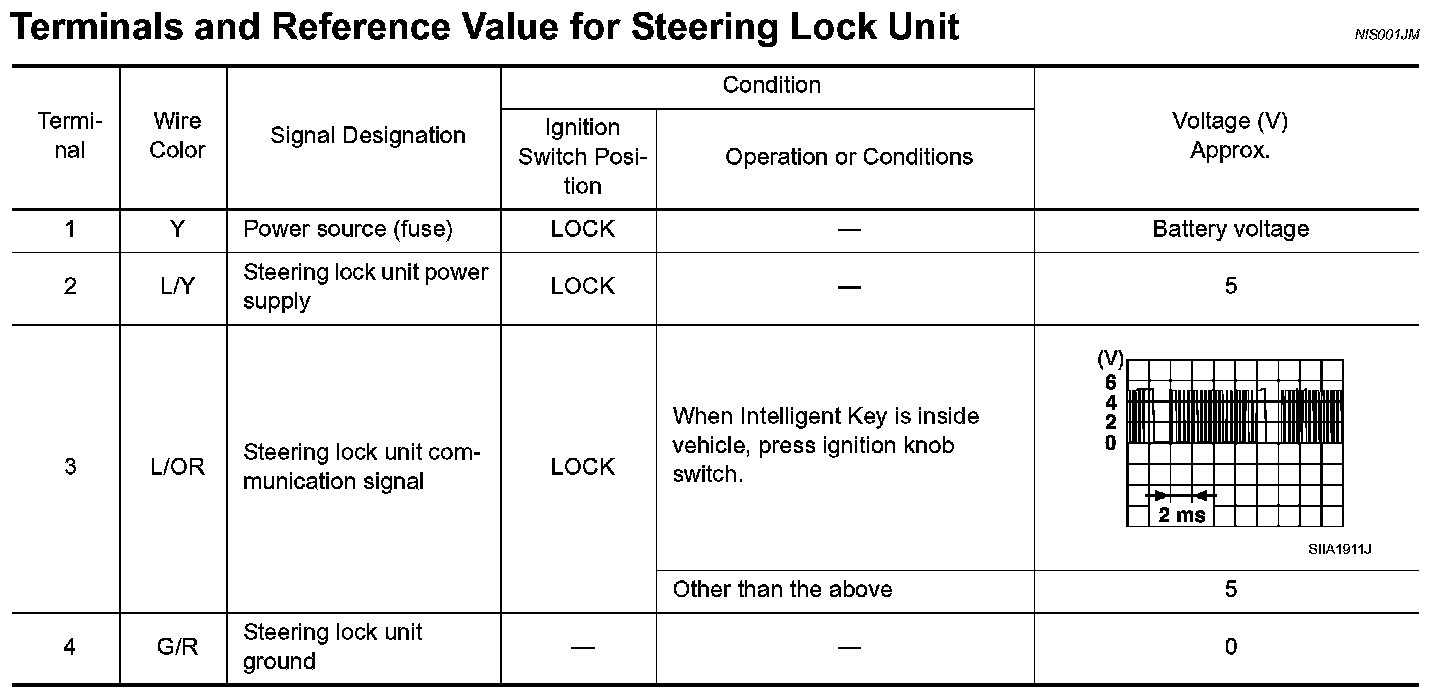

Terminals and Reference Value For Steering Lock Unit

Terminals And Reference Value For Steering Lock Unit:
