Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1999
>>
Q45t V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
>>

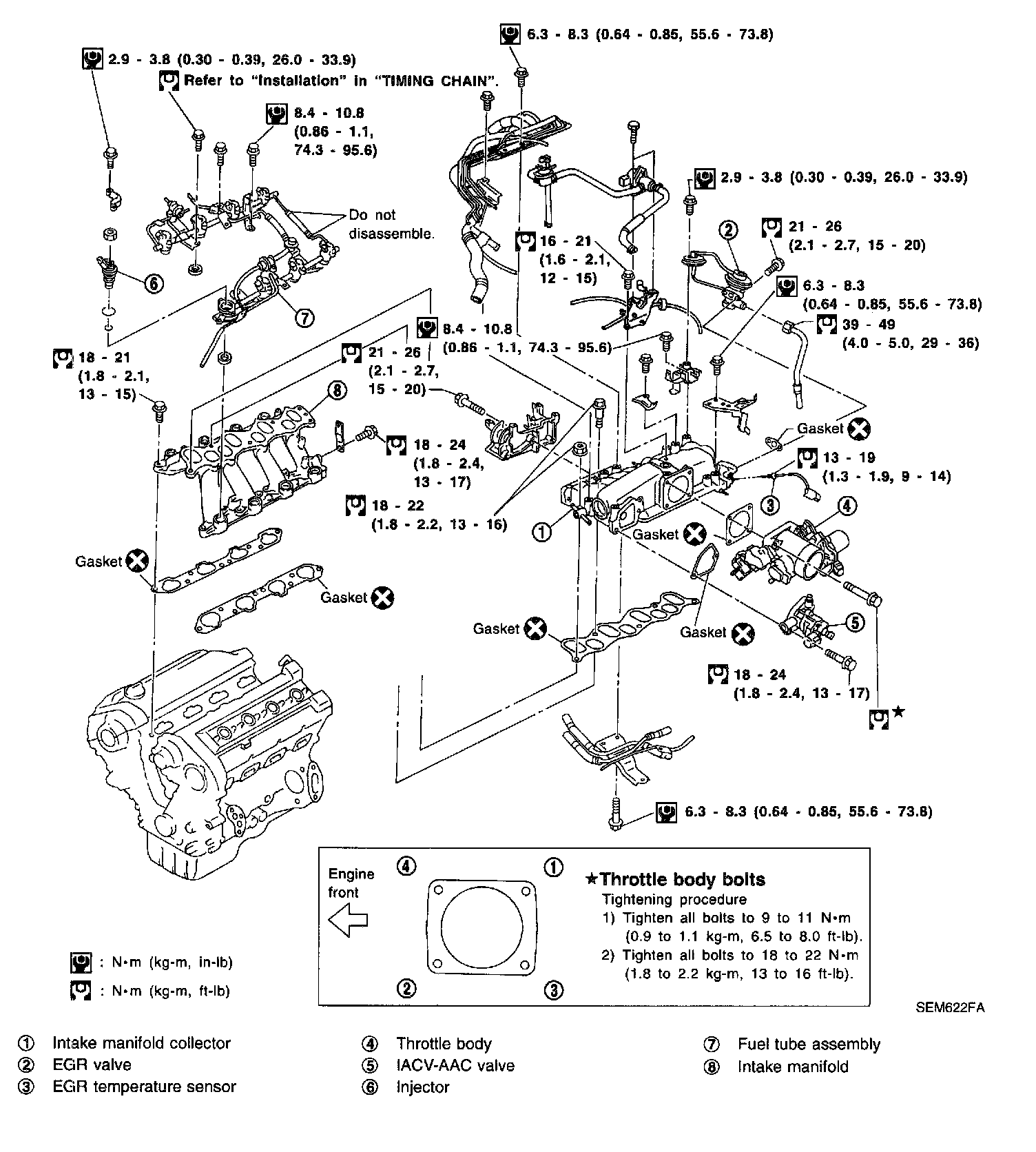

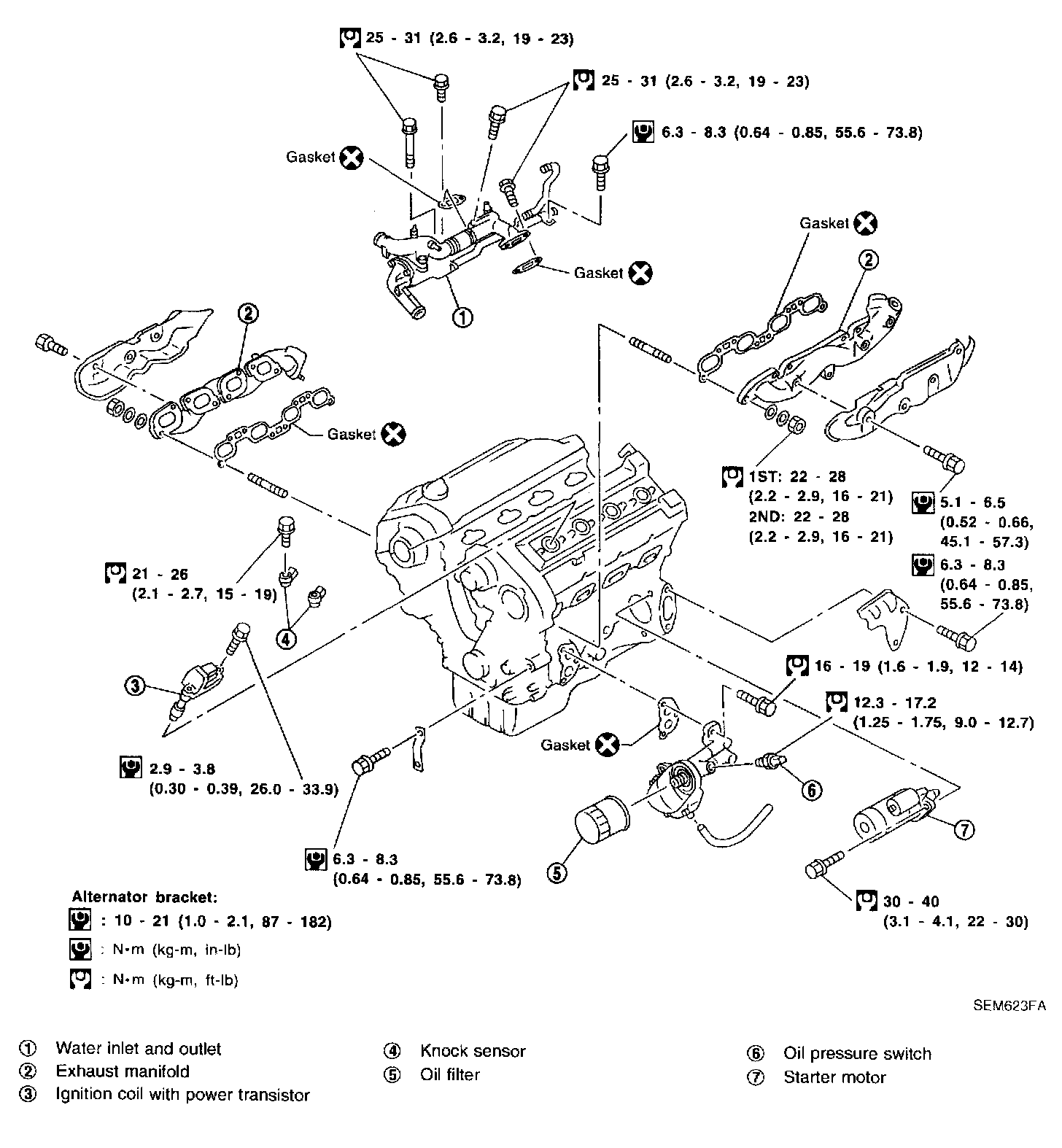

Outer Engine Components
Outer Engine Components
Outer Component Parts
