Powertrain Management: Application and ID

All emission related terms used in this publication in accordance with SAE J193O are listed. Accordingly, new terms, new acronyms/abbreviations and old terms are listed in the following chart

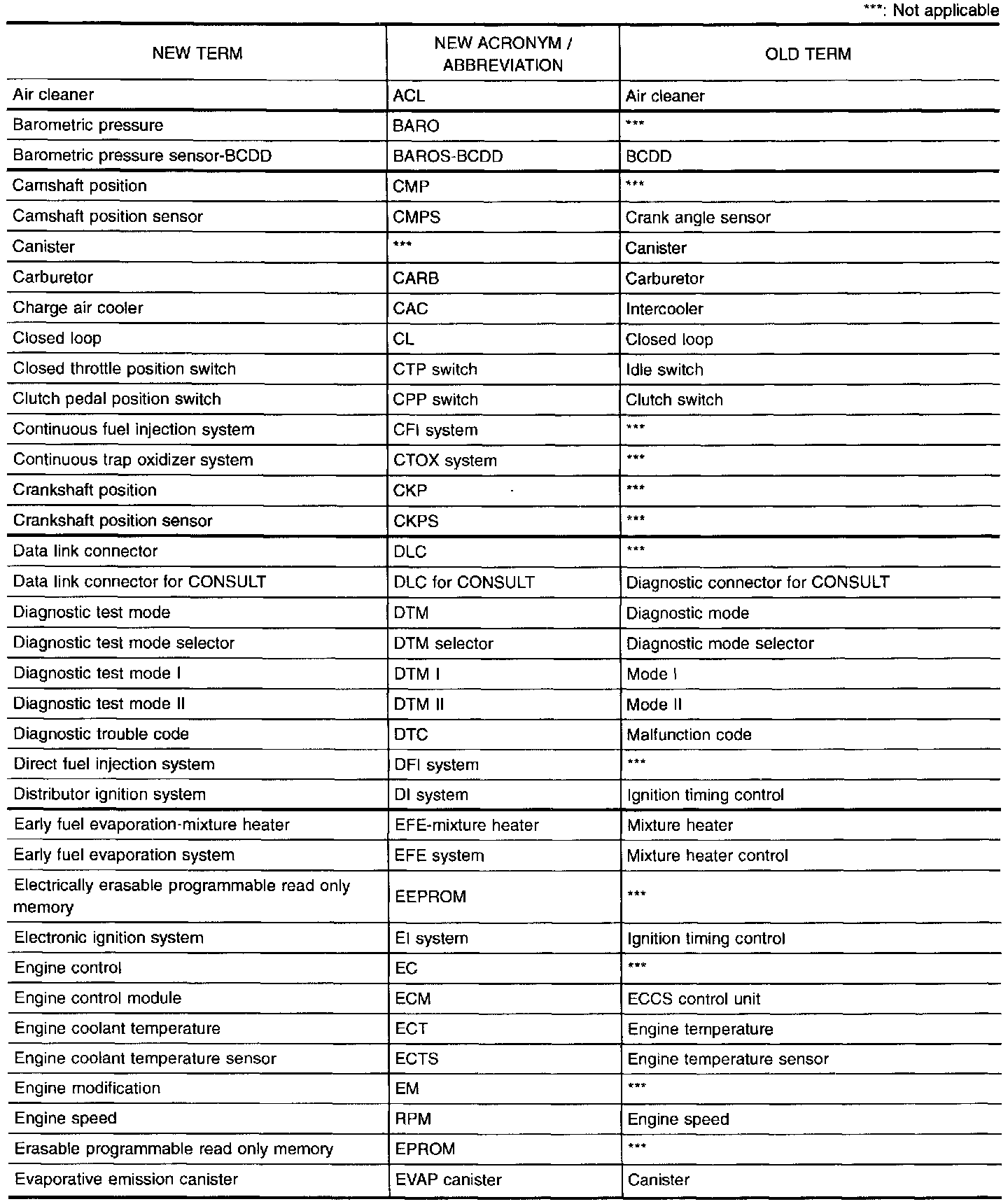

Air Cleaner through Evaporative emission canister

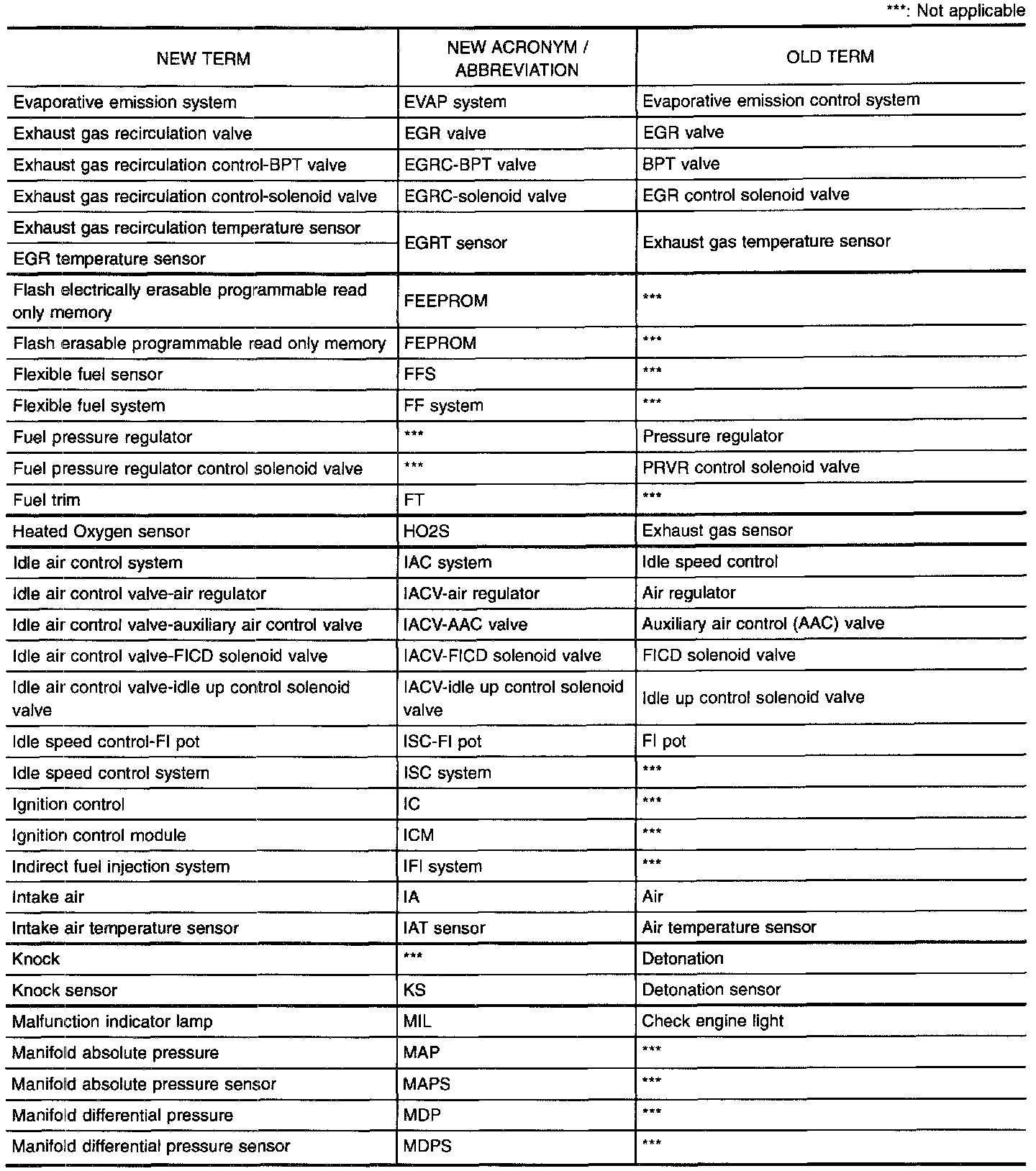

Evaporative emission System through Manifold Differential Pressure Sensor

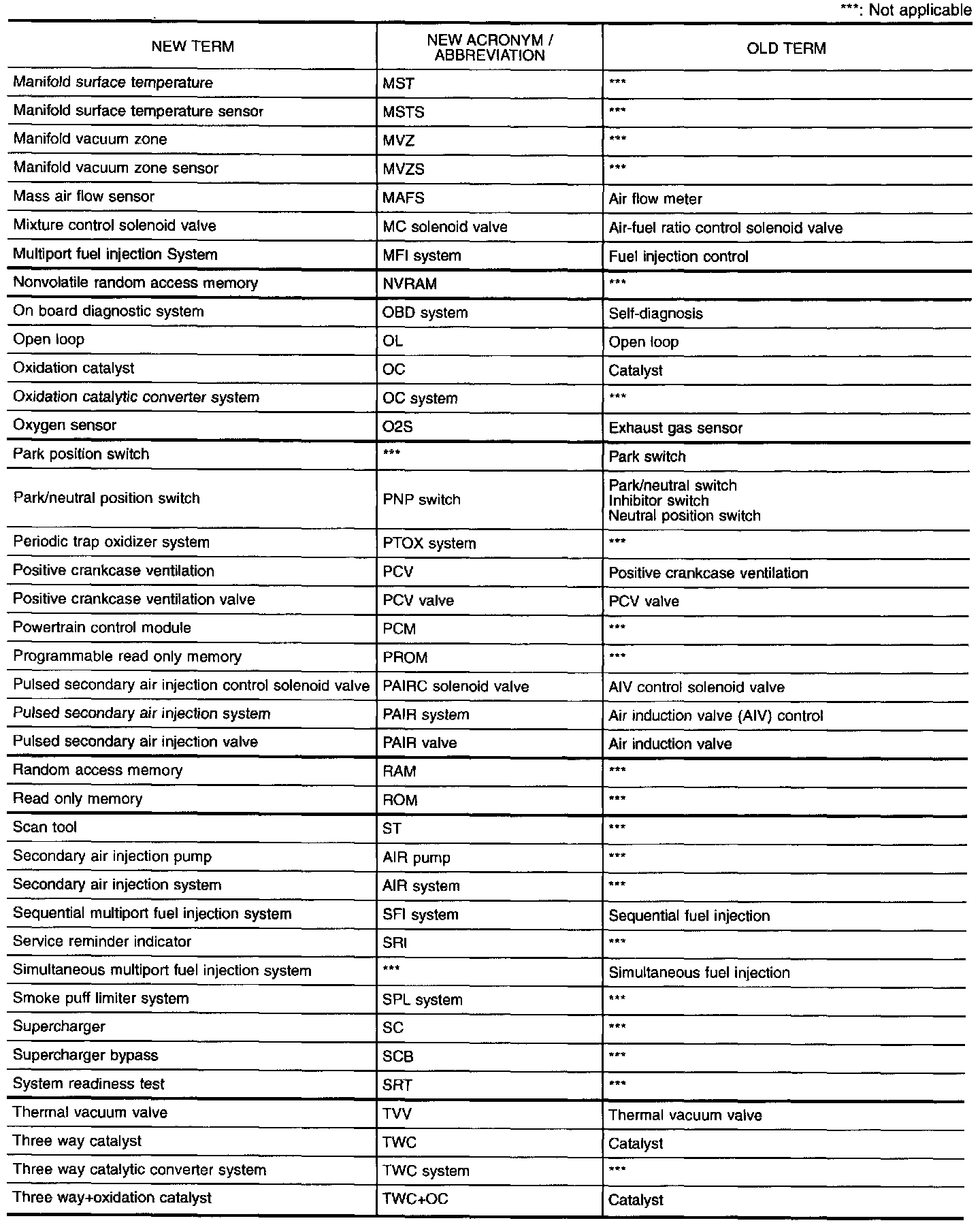

Manifold Surface Temperature through Three way + oxidation catalyst

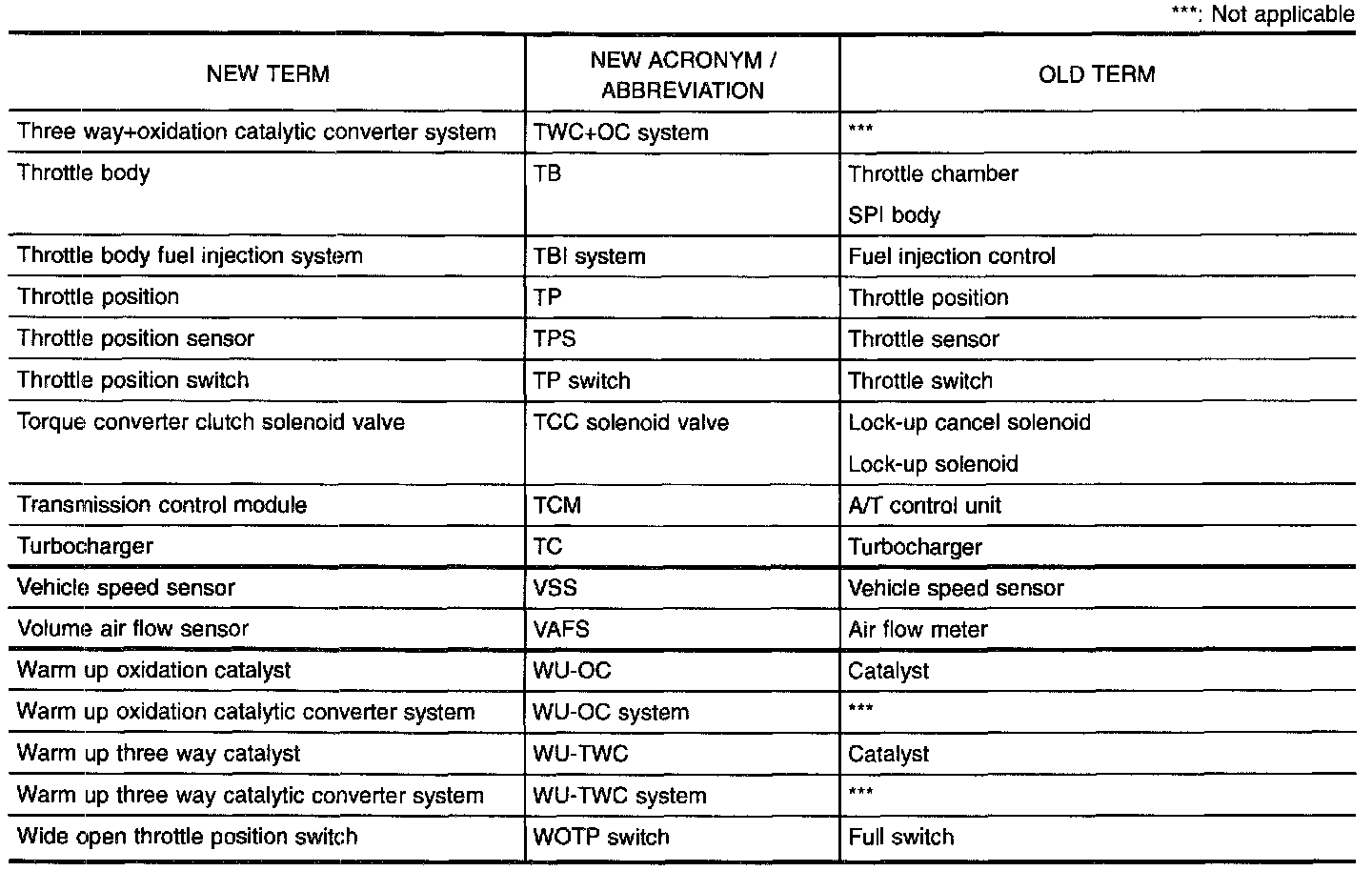

Three way + oxidation catalytic converter system through Wide open throttle position switch
