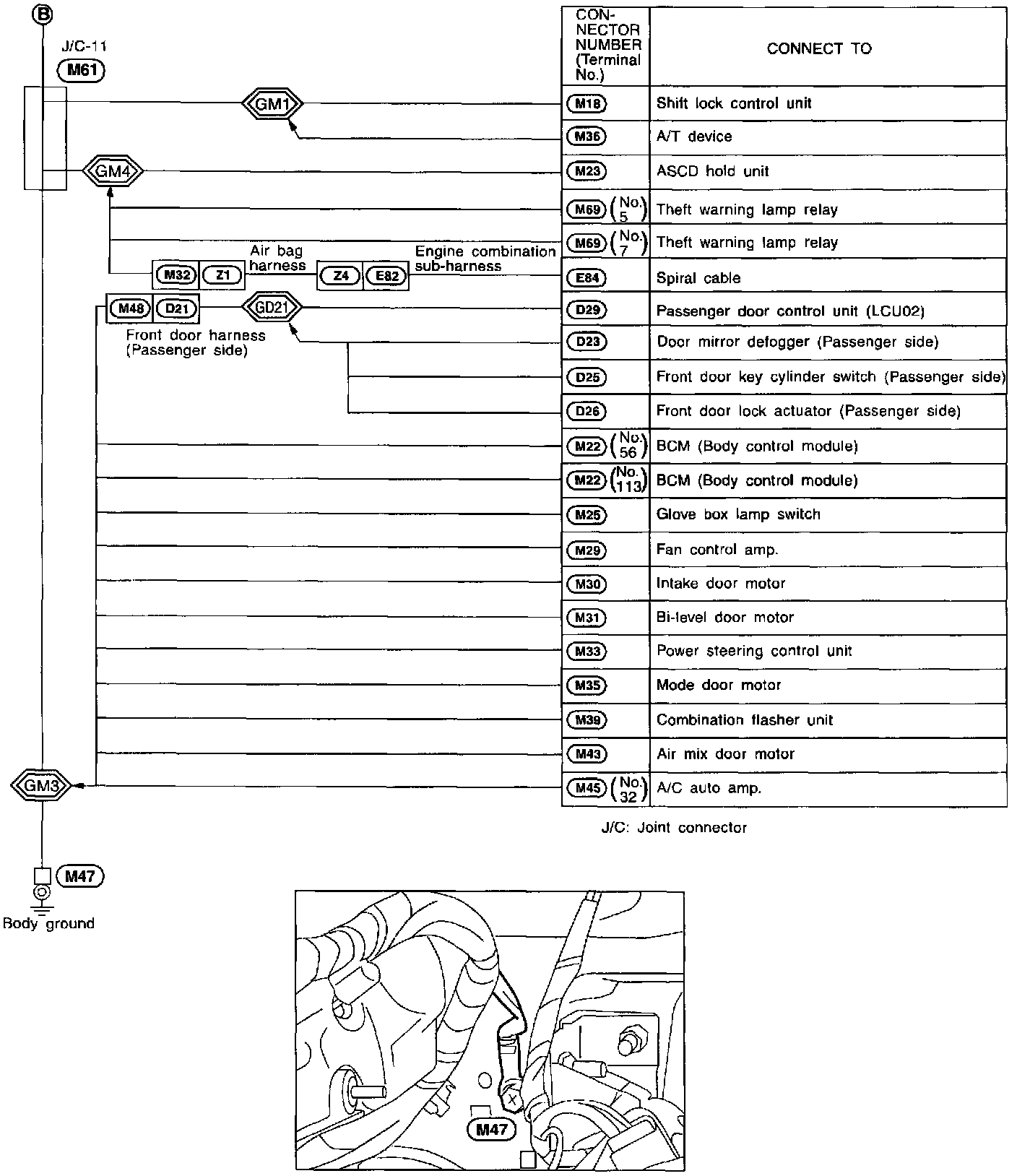

Power and Ground Distribution: Locations

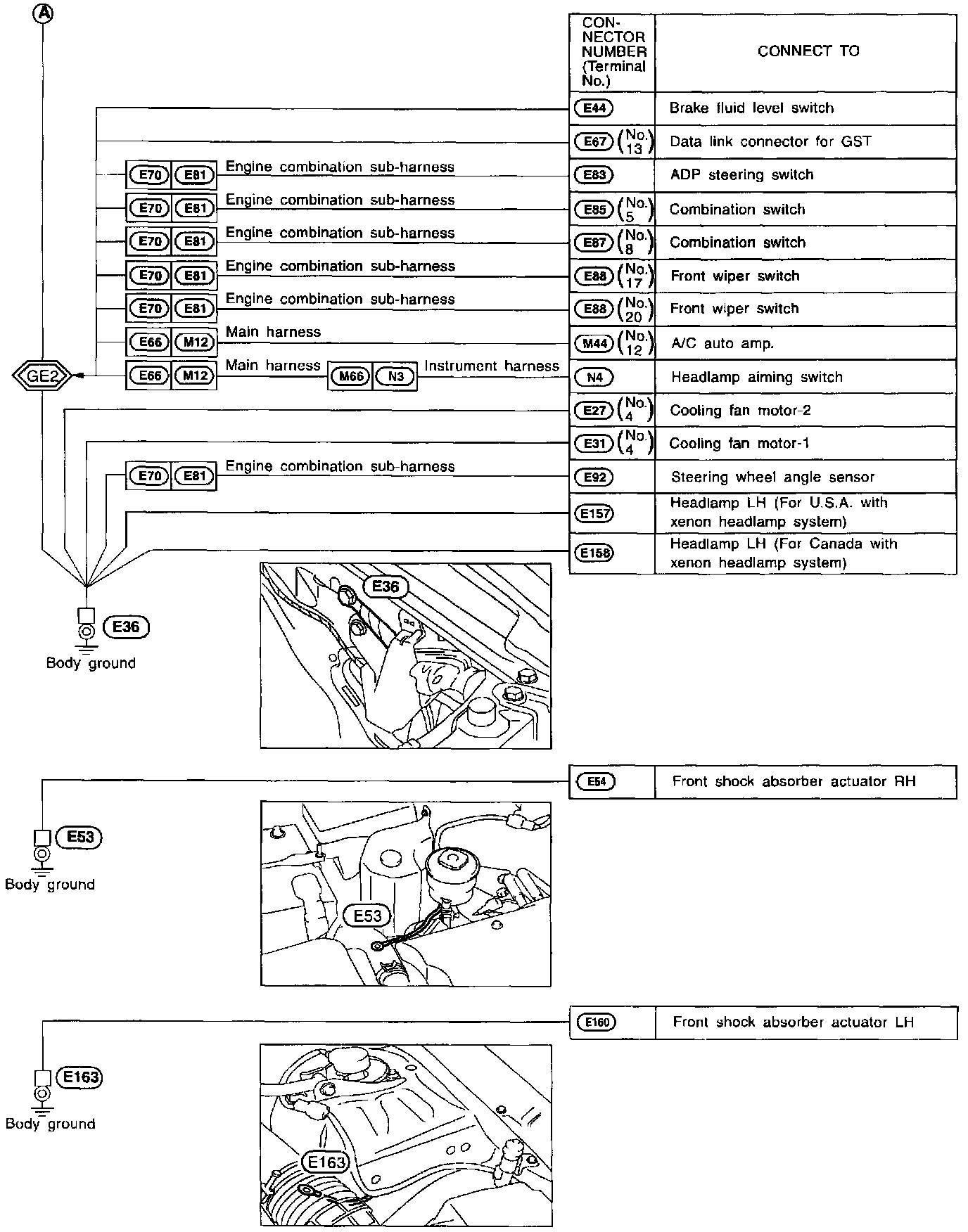

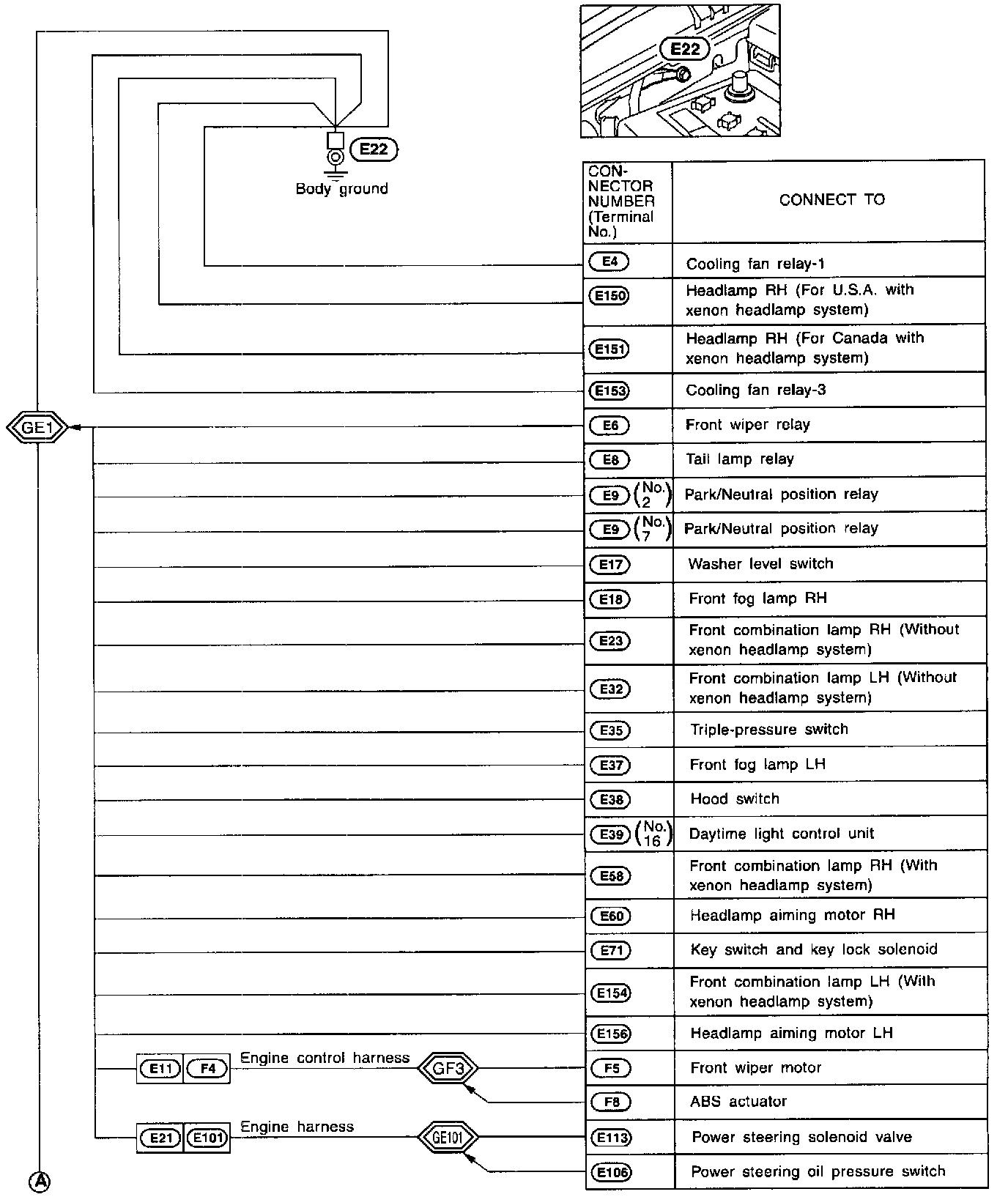

Engine Room Harness

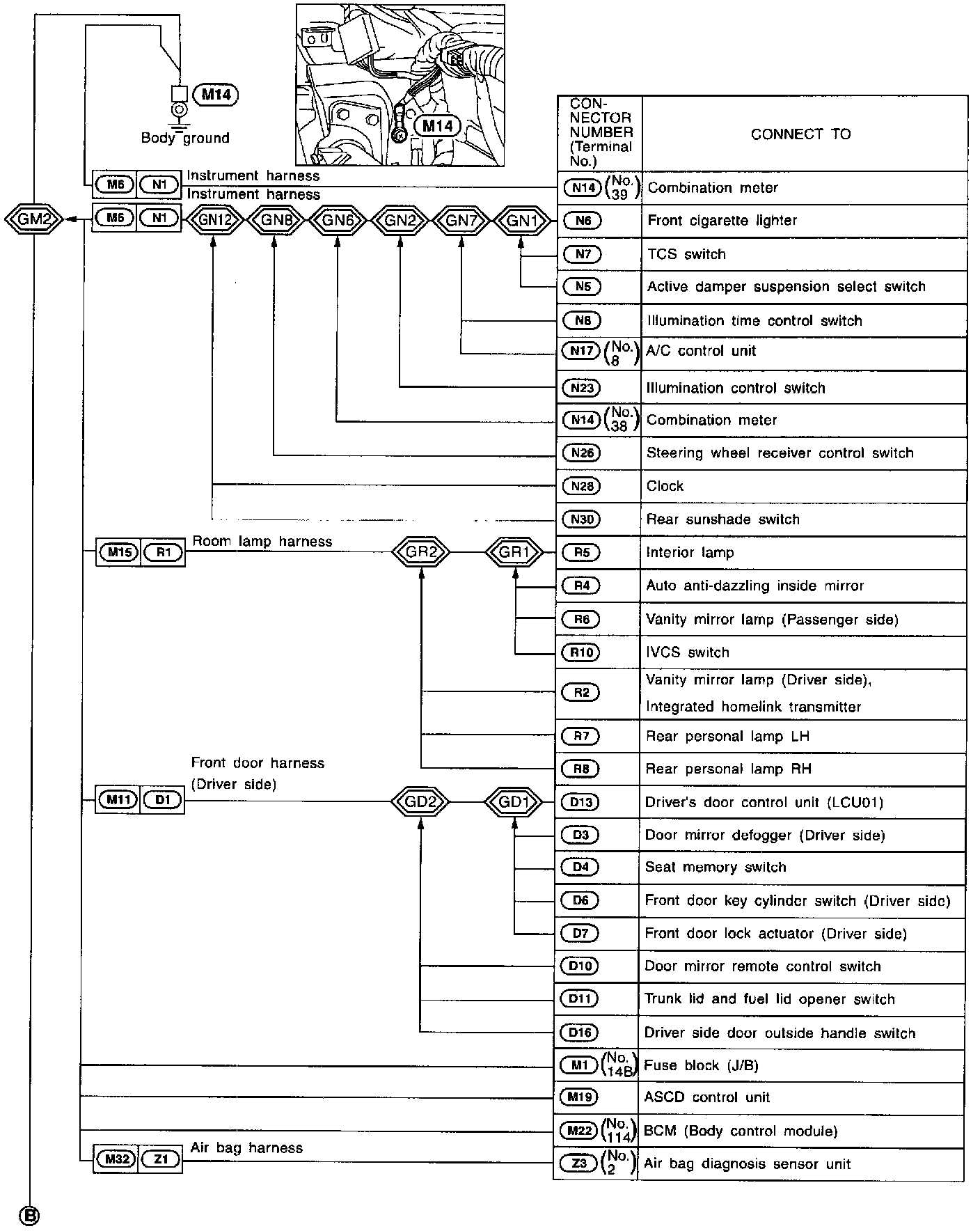

Main Harness

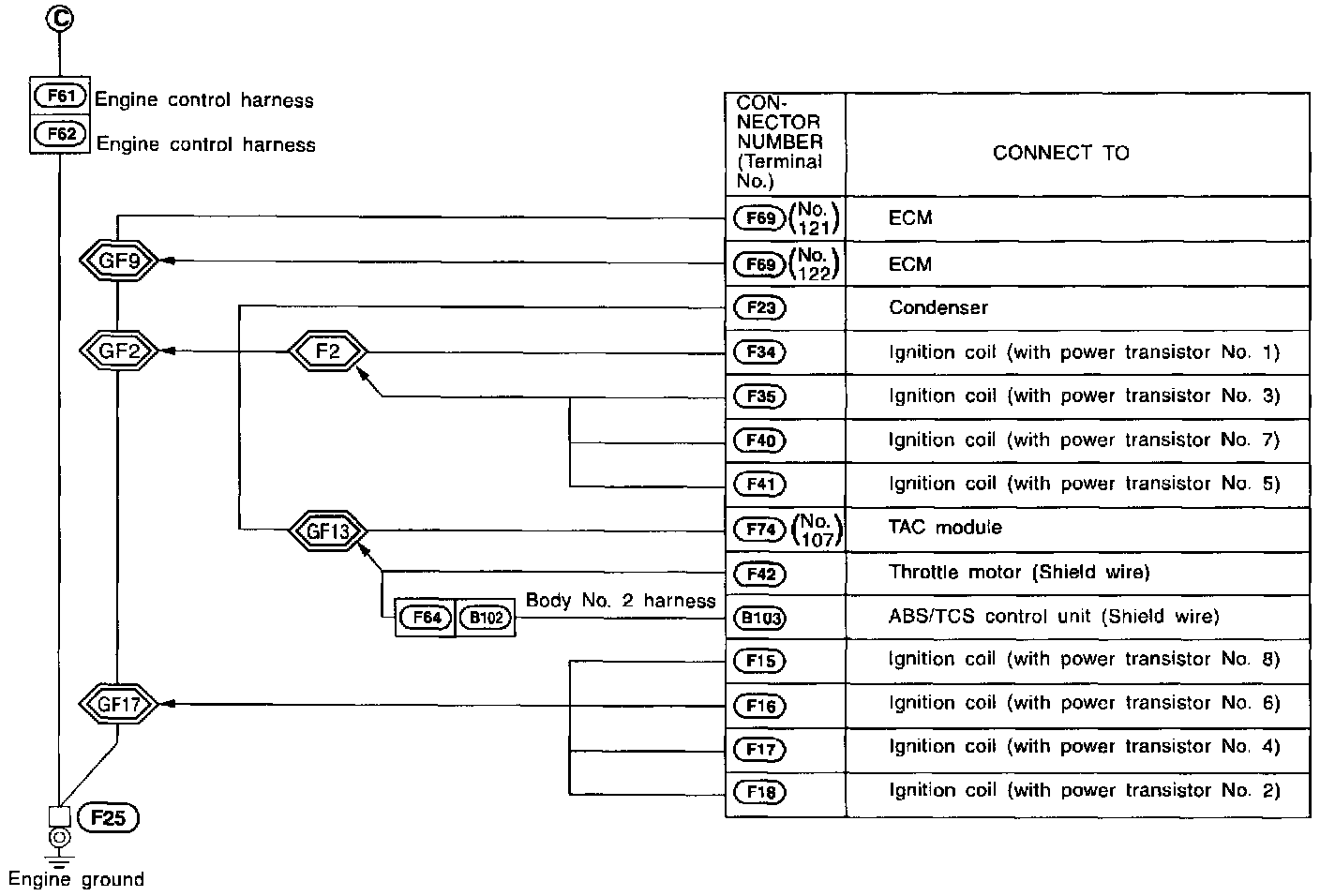

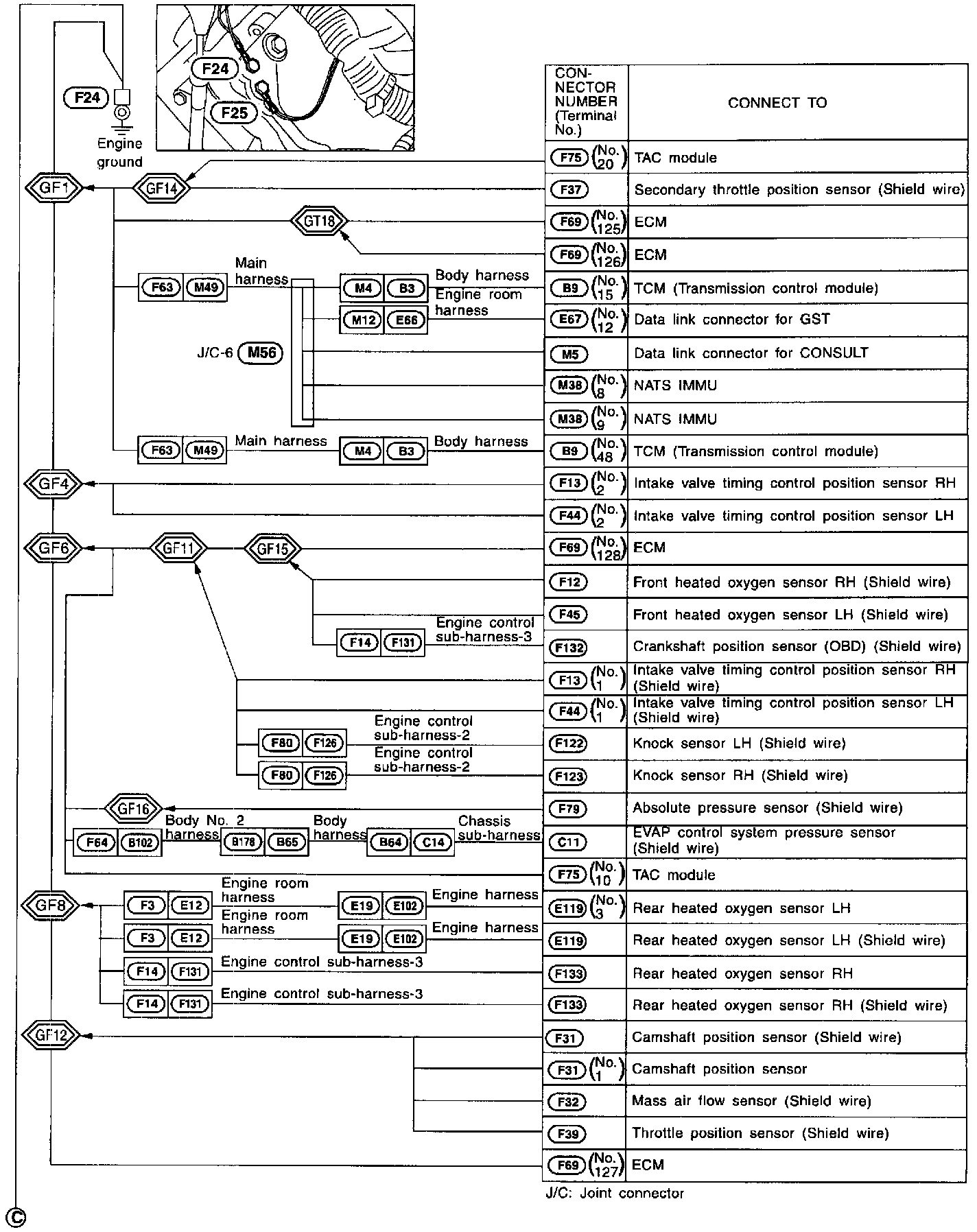

Engine Control Harness

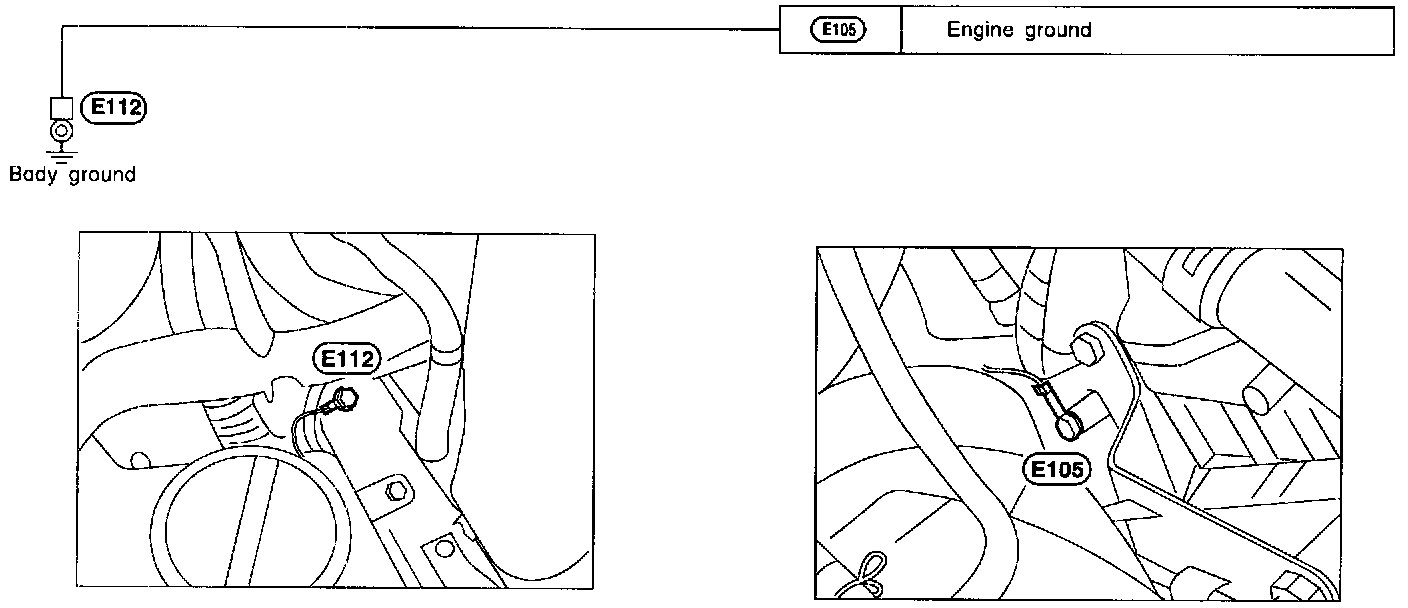

Engine Harness

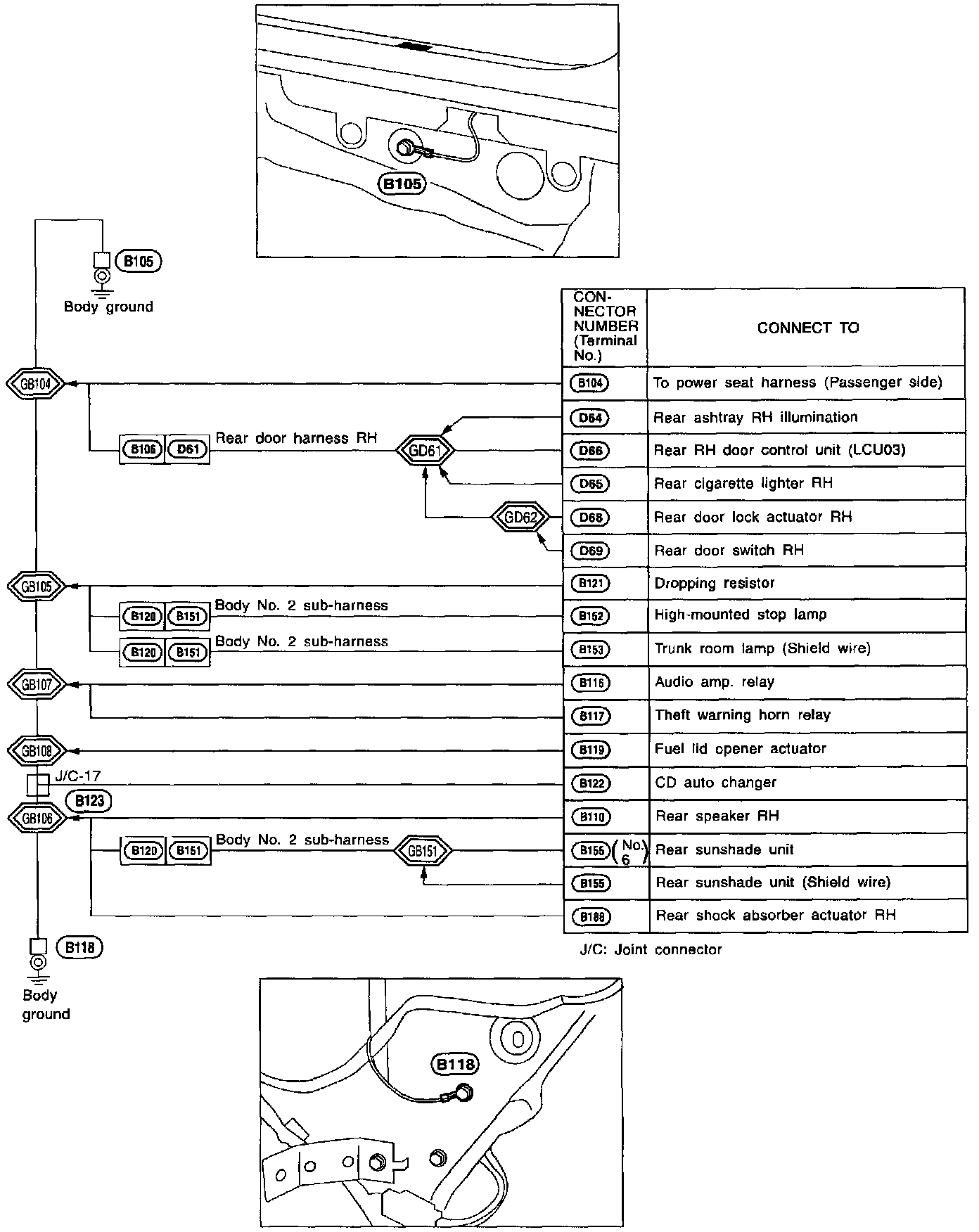

Body Harness

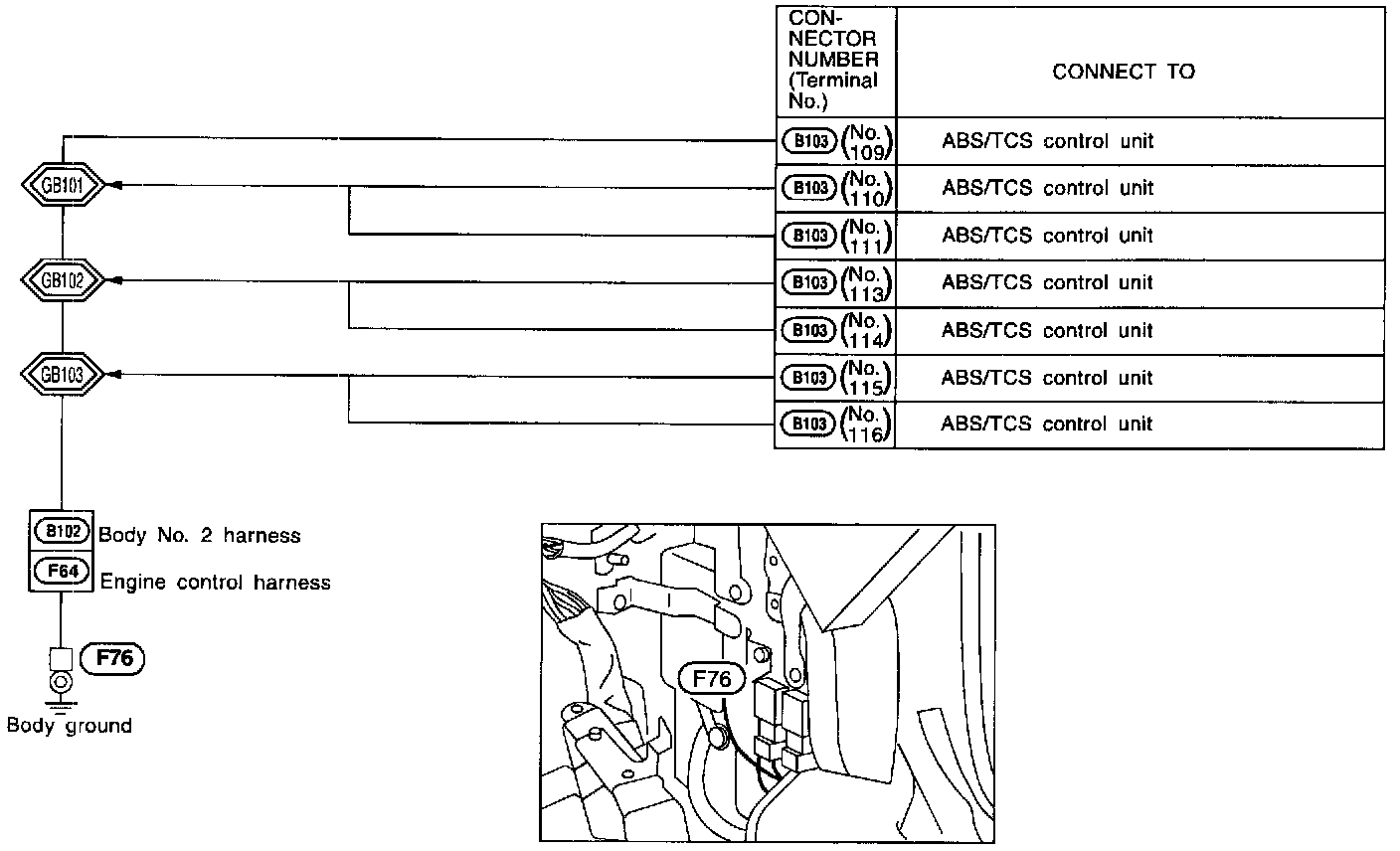

Body No.2 Harness
