Refrigerant Oil: Service and Repair

Part 1 Of 2:

Part 2 Of 2:

The lubricant in the compressor circulates through the system with
the refrigerant. Add lubricant to compressor when replacing any
component or after a large gas leakage occurred. It is important to
maintain the specified amount.
If lubricant quantity is not maintained properly,the following mal-
functions may result:
- Lack of lubricant:May lead to a seized compressor
- Excessive lubricant:Inadequate cooling (thermal exchange
interferance)

LUBRICANT
Name: Infiniti A/C System Oil Type S
Part number: KLHOO-PAGS0
CHECKING AND ADJUSTING

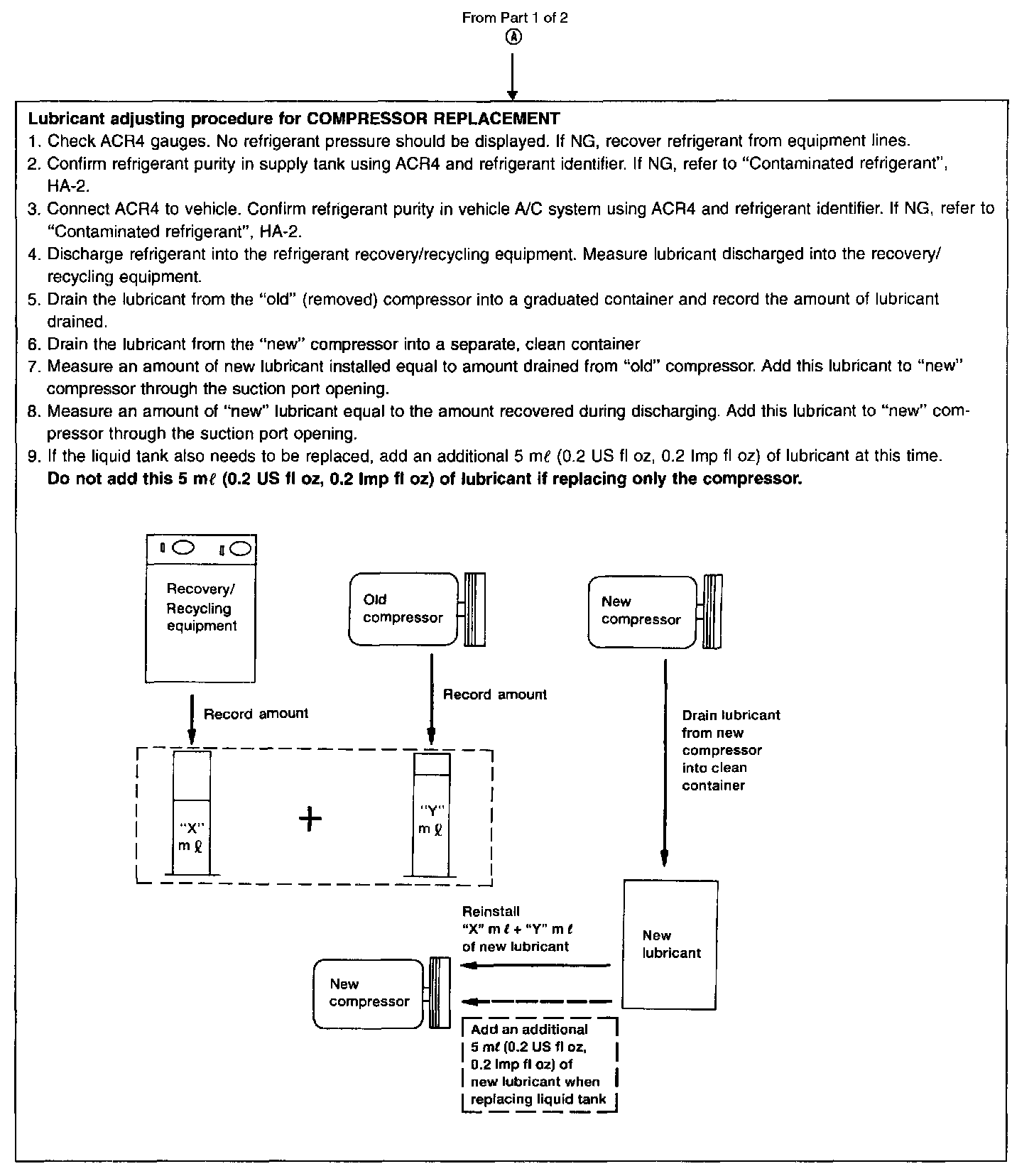

Adjust the lubricant quantity according to the flowchart.
