Checking Fluid Level

CHECKING FLUID LEVEL

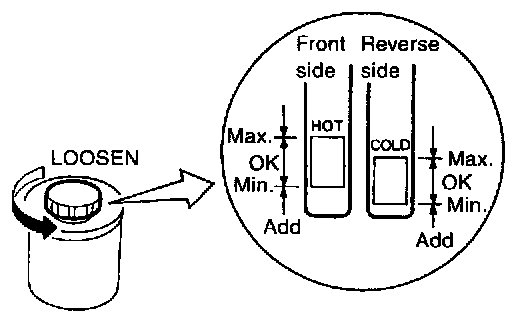

Check fluid level with dipstick on reservoir cap. Use "HOT" range at fluid temperatures from 50 to 80°C (122 to 176°F). Use "COLD" range at fluid temperatures from 0 to 30°C (32 to 86°F).

CAUTION:
- Do not overfill.
- Recommended fluid is Automatic Transmission Fluid type DEXRON III or equivalent.
