Compressor Clutch Relay: Testing and Inspection

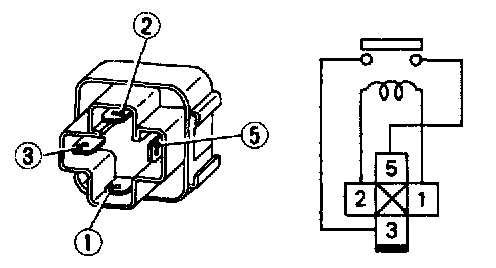

Check continuity between terminal Nos. (3) and (5).
If NG, replace relay.
