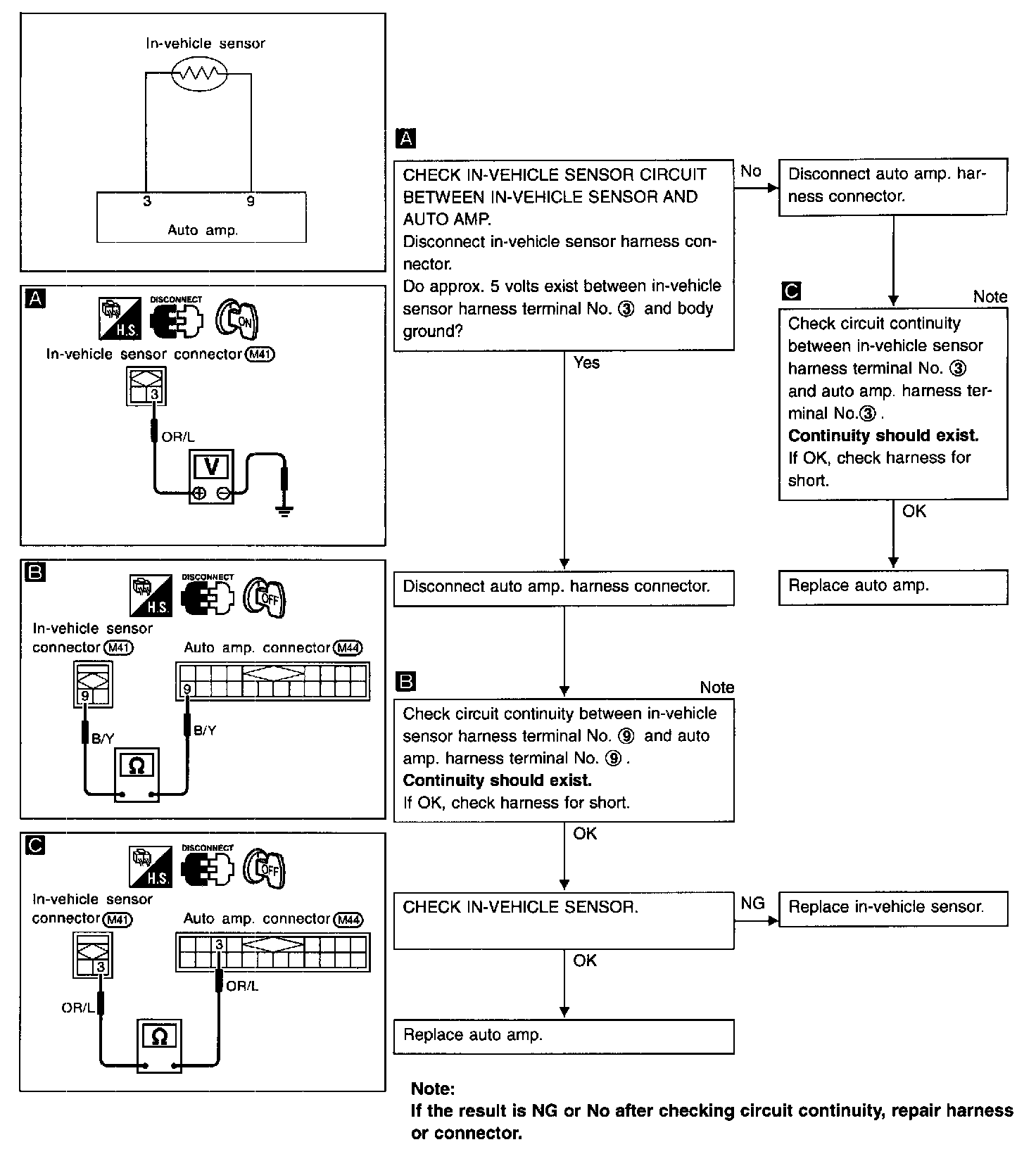

Diagnostic Procedure




SYMPTOM: In-vehicle sensor circuit is open or shorted. (22 or -22 appears on the display as a result of conducting Self-diagnosis STEP 2.)
