EC-RRO2LH

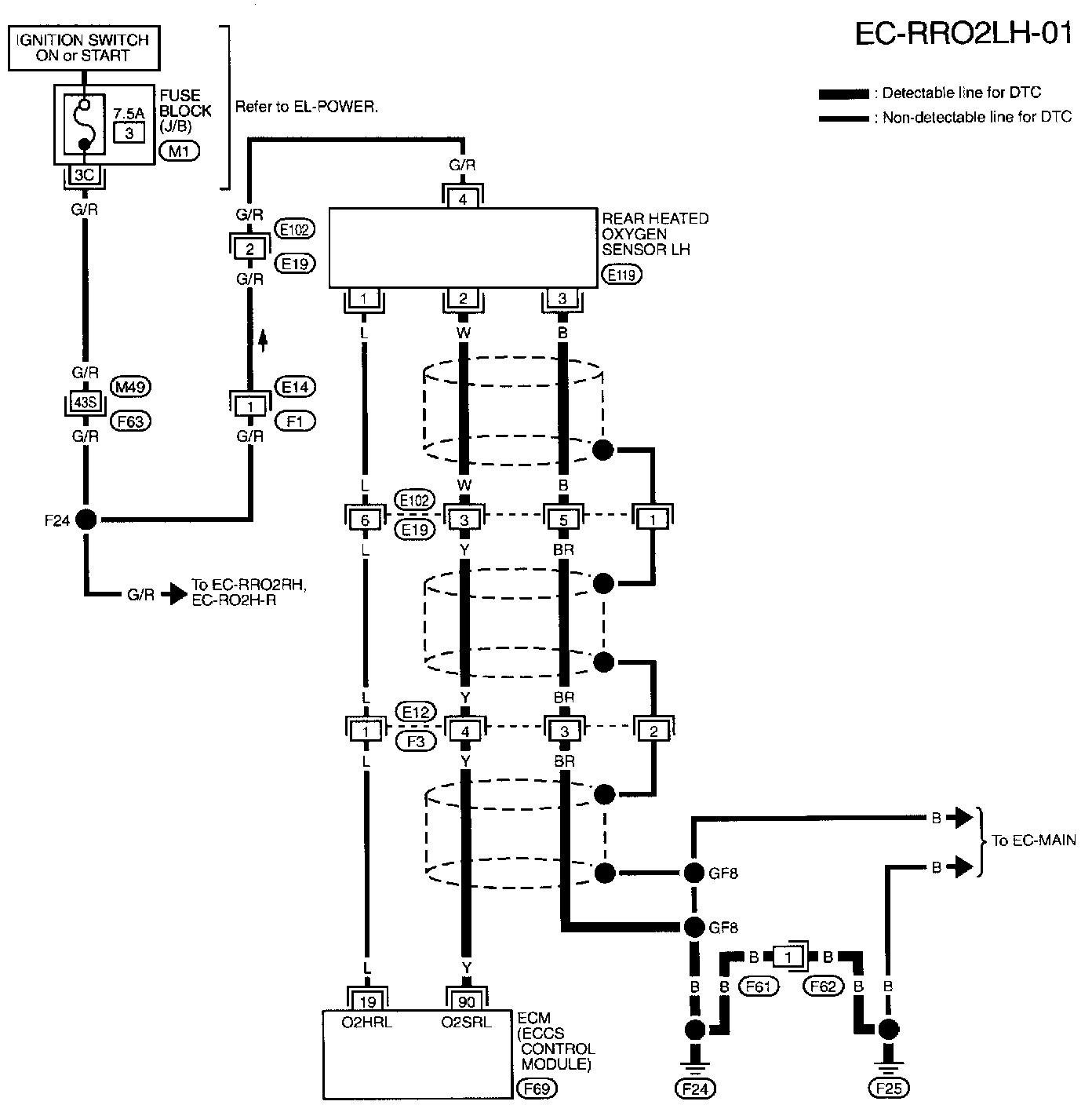

EC-RRO2LH-01

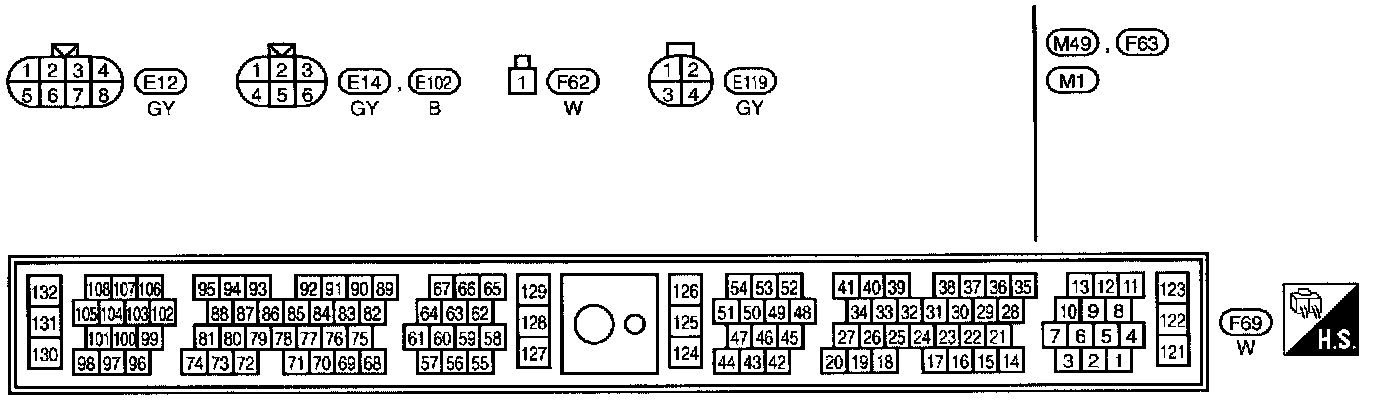

Rear Heater Oxygen Sensor (Min. Voltage Monitoring) (Left Bank) Circuit Connectors





F63, M49, Super Multiple Junction Terminal Arrangement





M1 Terminal Arrangement
