EC-RRO2H

EC-RRO2H-01

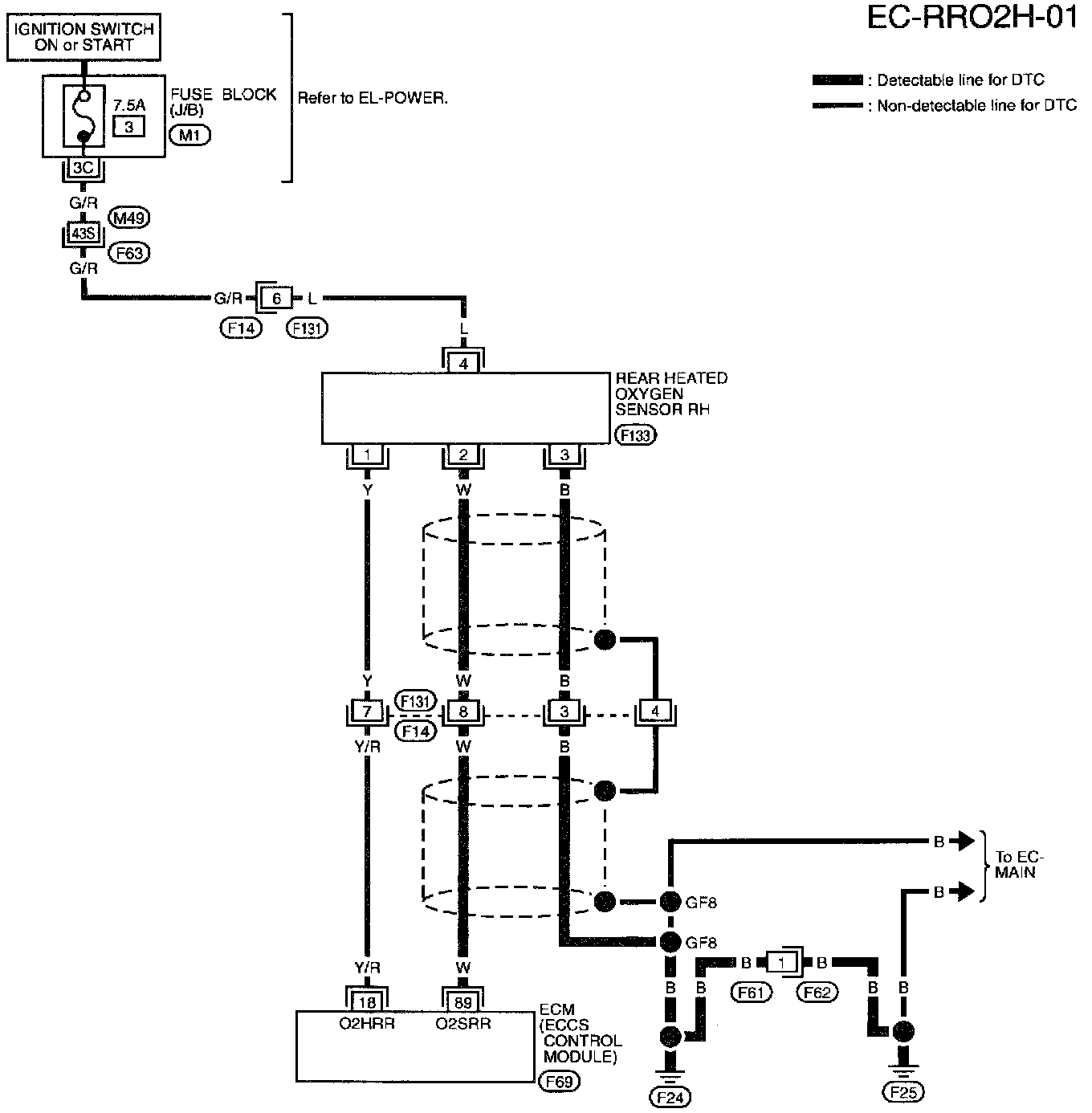

Rear Heater Oxygen Sensor (Min. Voltage Monitoring) (Right Bank) Circuit Connectors

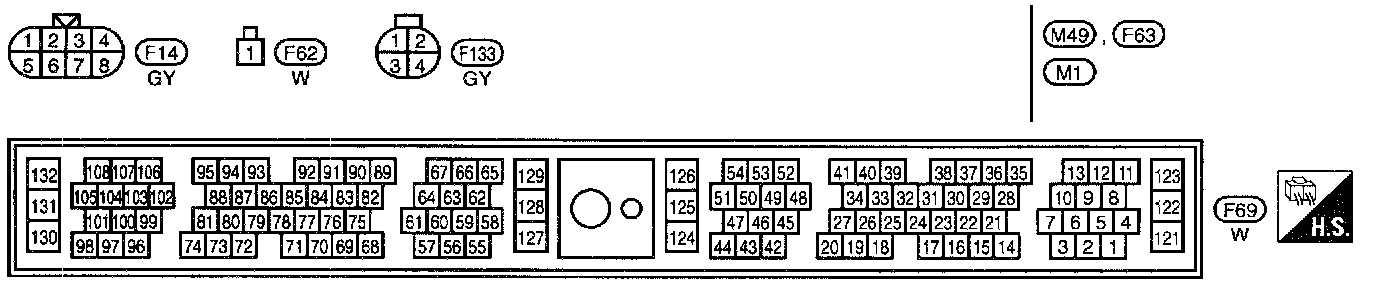

F63, M49, Super Multiple Junction Terminal Arrangement

M1 Terminal Arrangement
