EC-FRO2LH
EC-FRO2LH

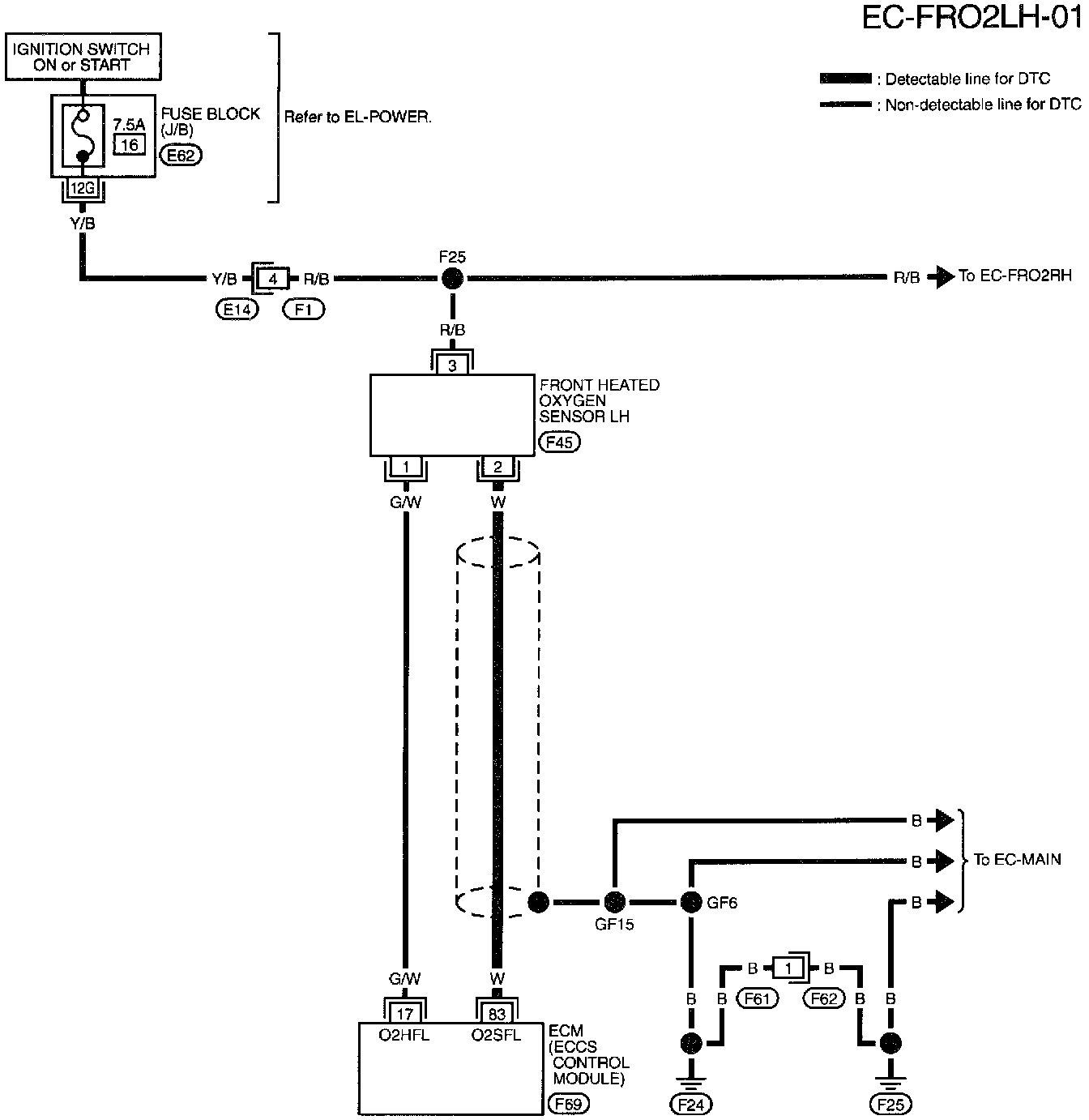

EC-FRO2LH-01
Front Heated Oxygen Sensors (Front
HO2S
) (Left Bank) Circuit Connectors
E62 Terminal Arrangement
