Body Control Module (BCM)

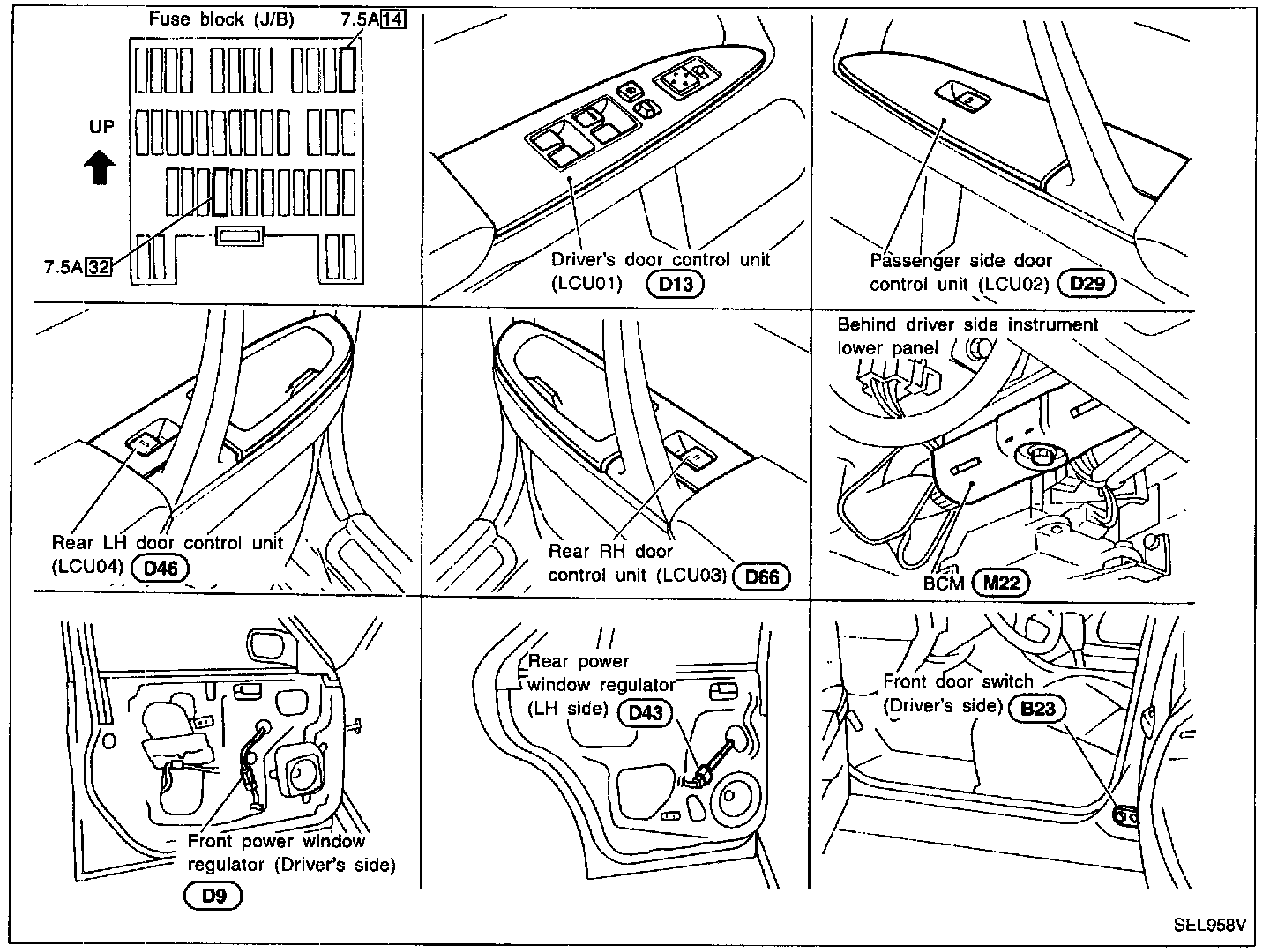

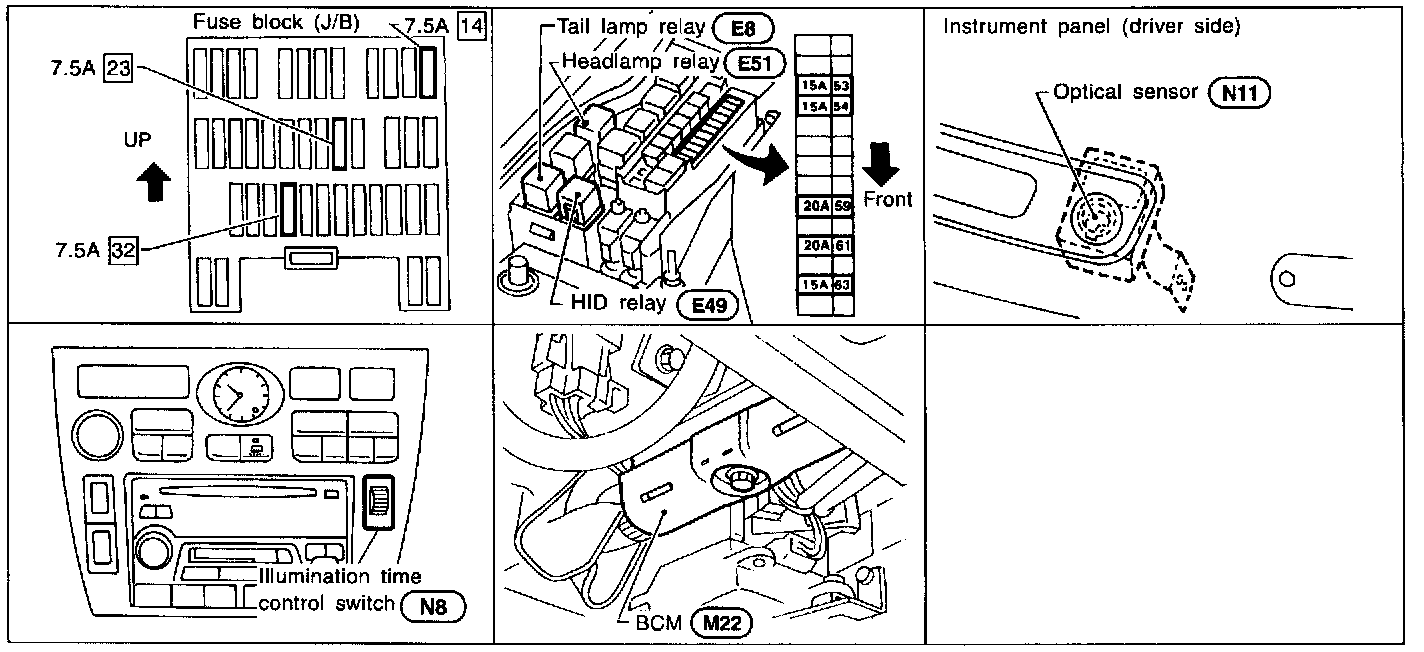

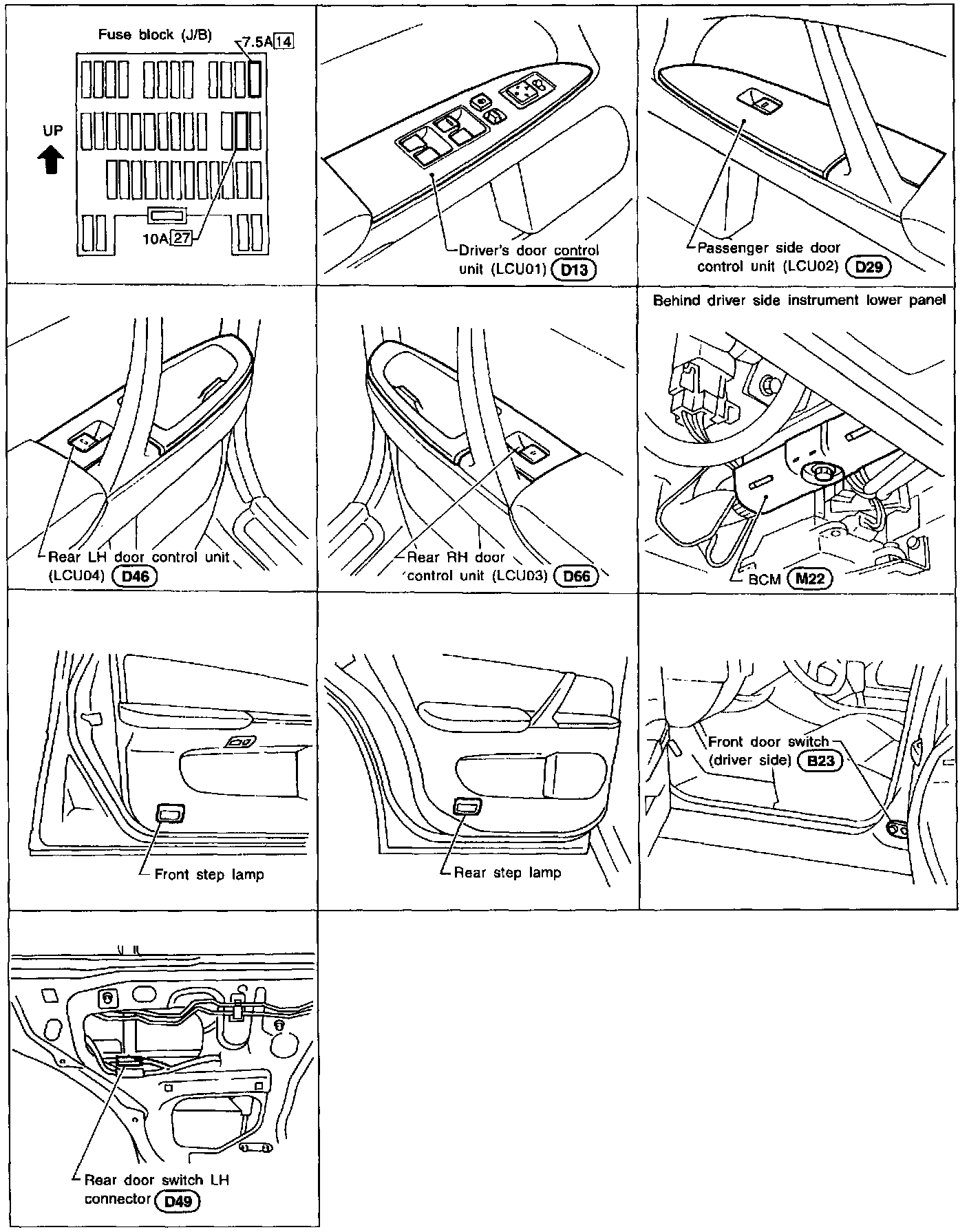

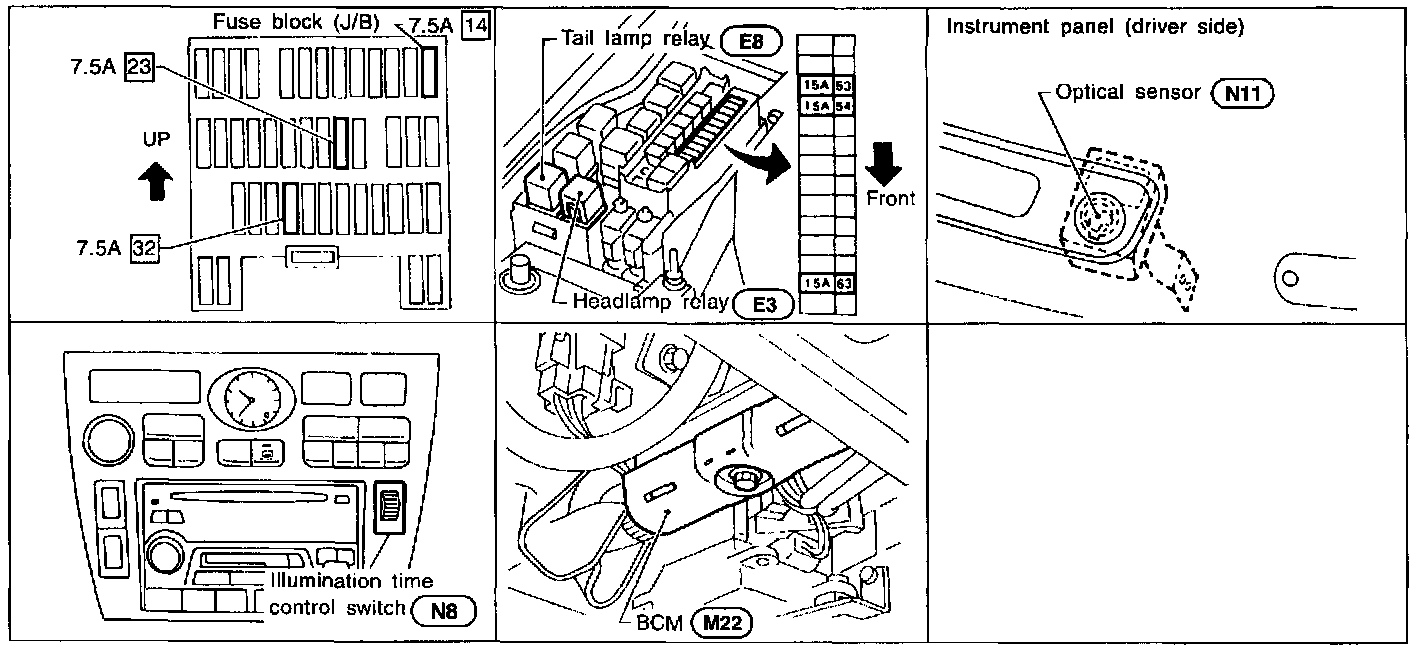

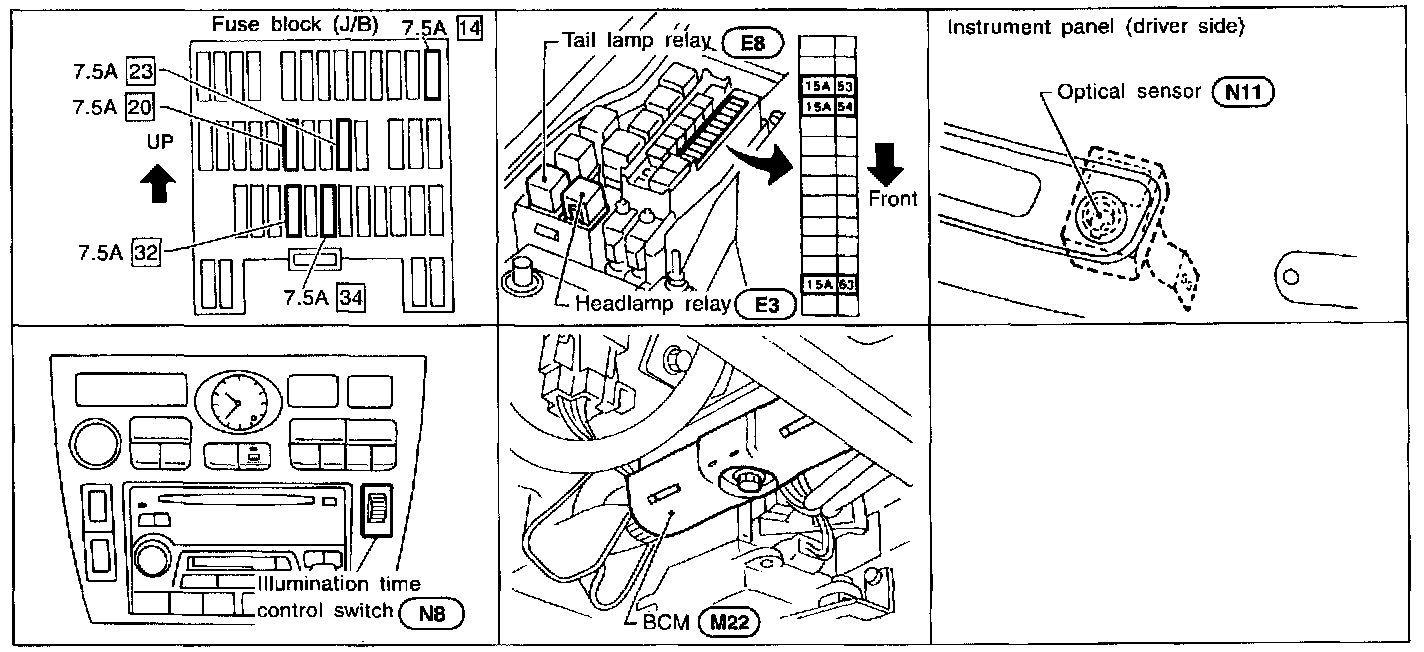

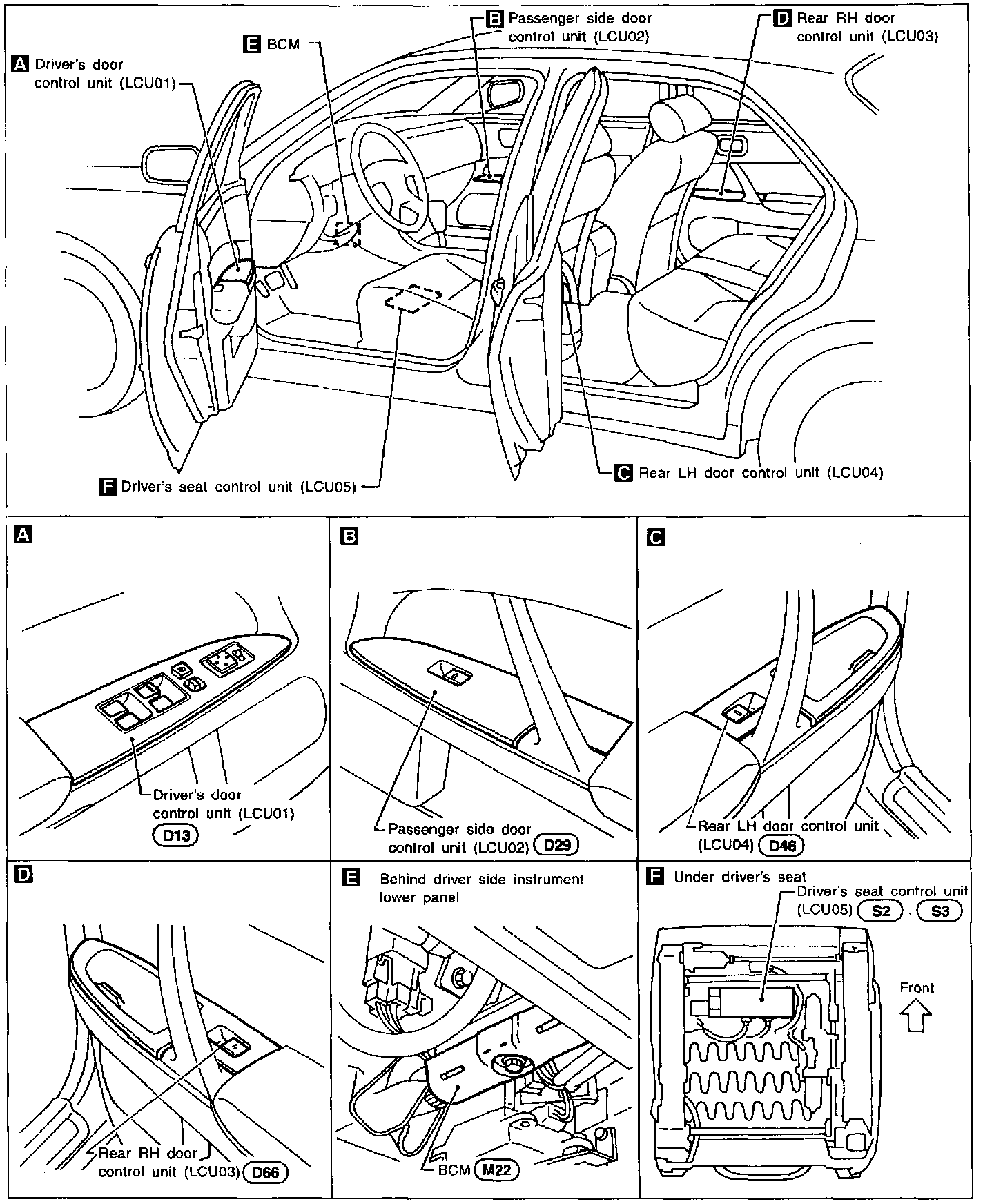

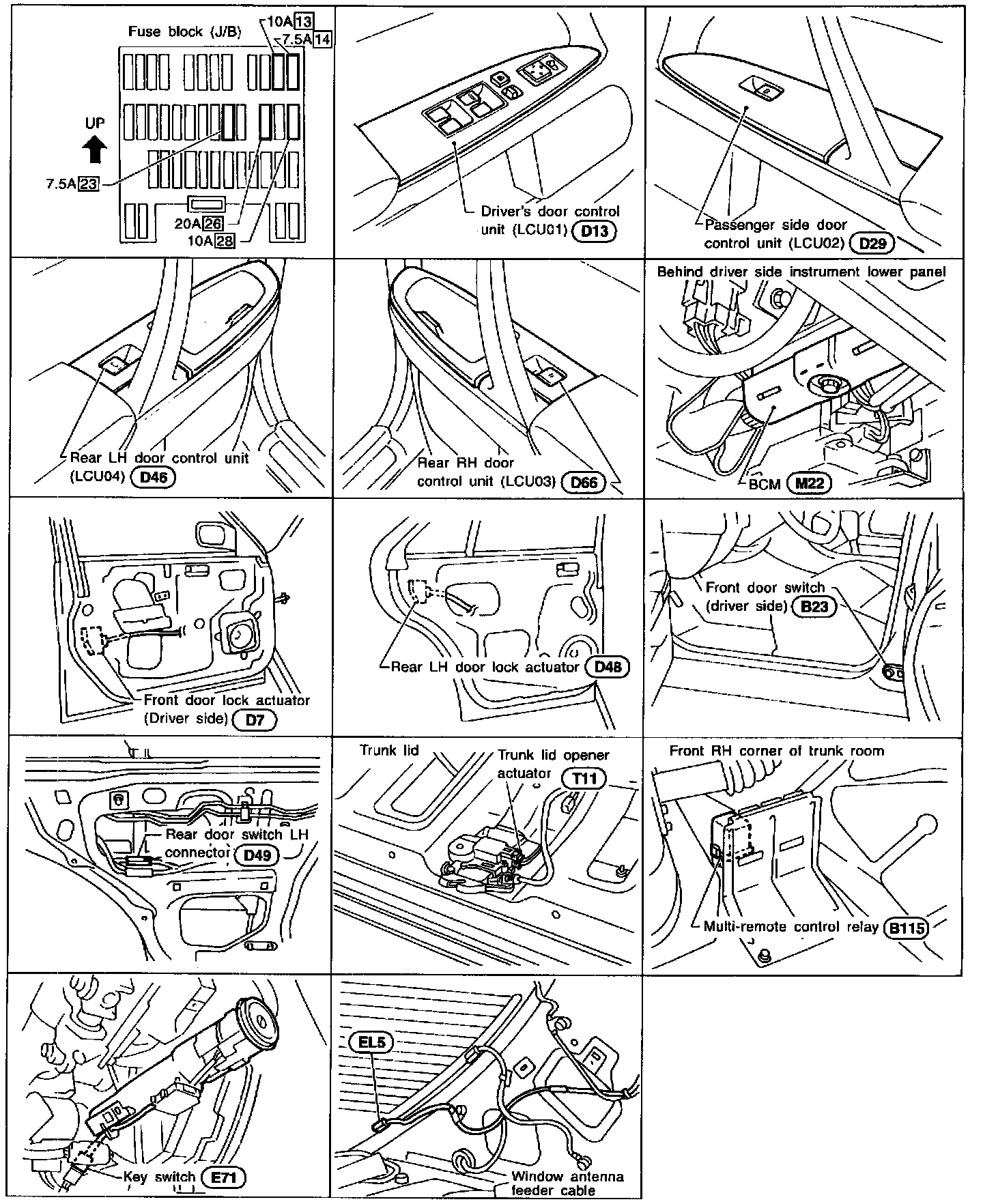

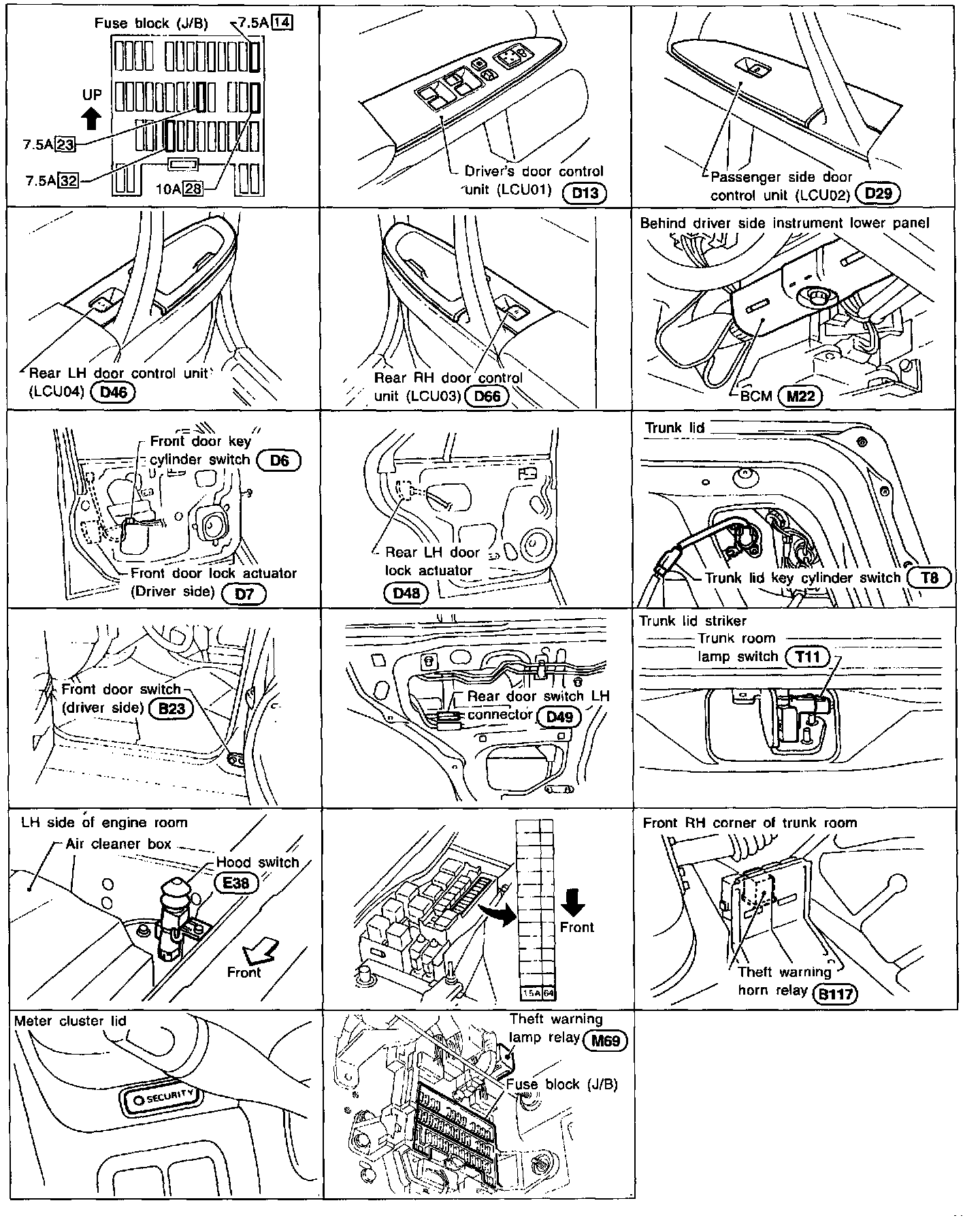

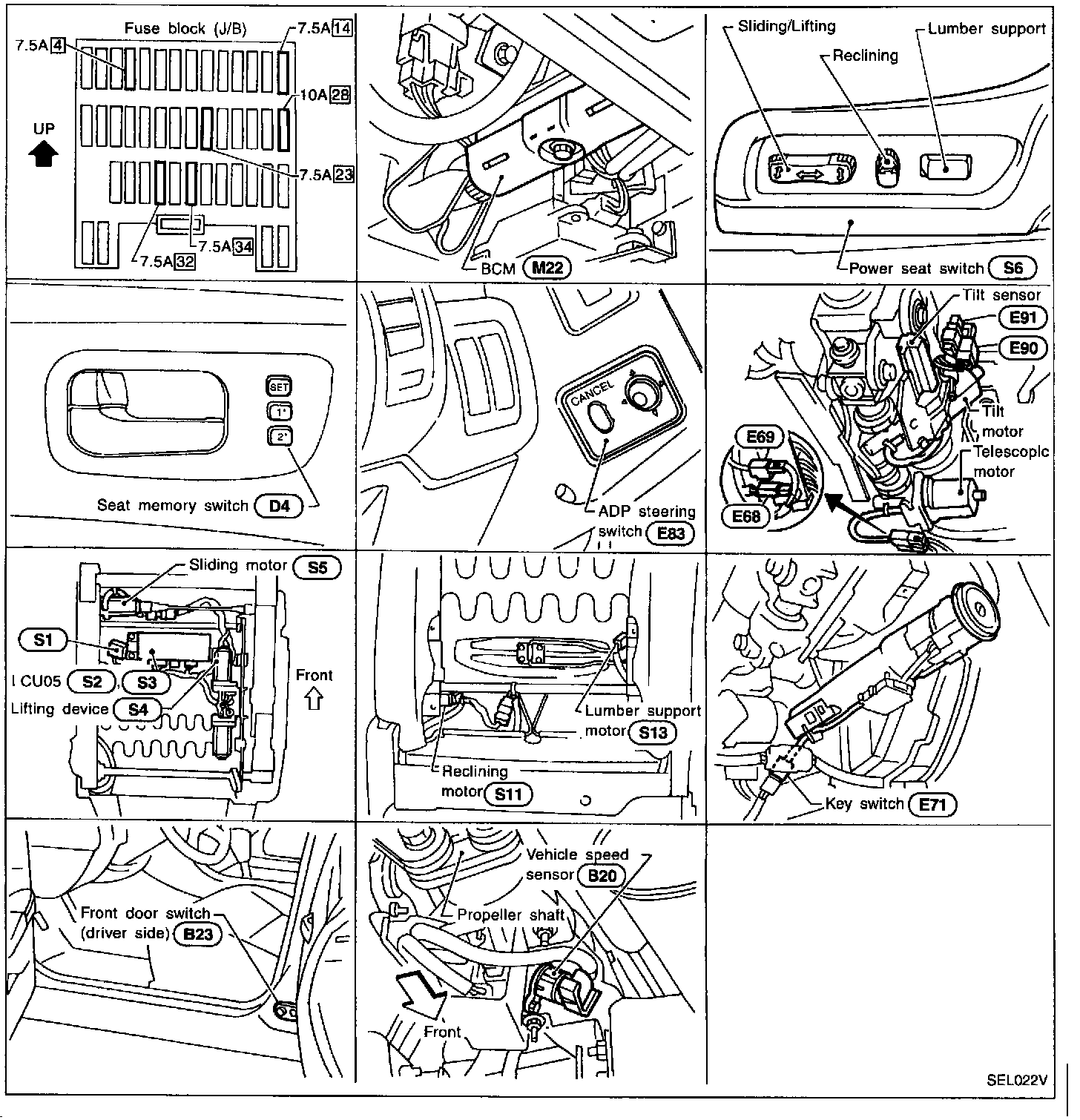

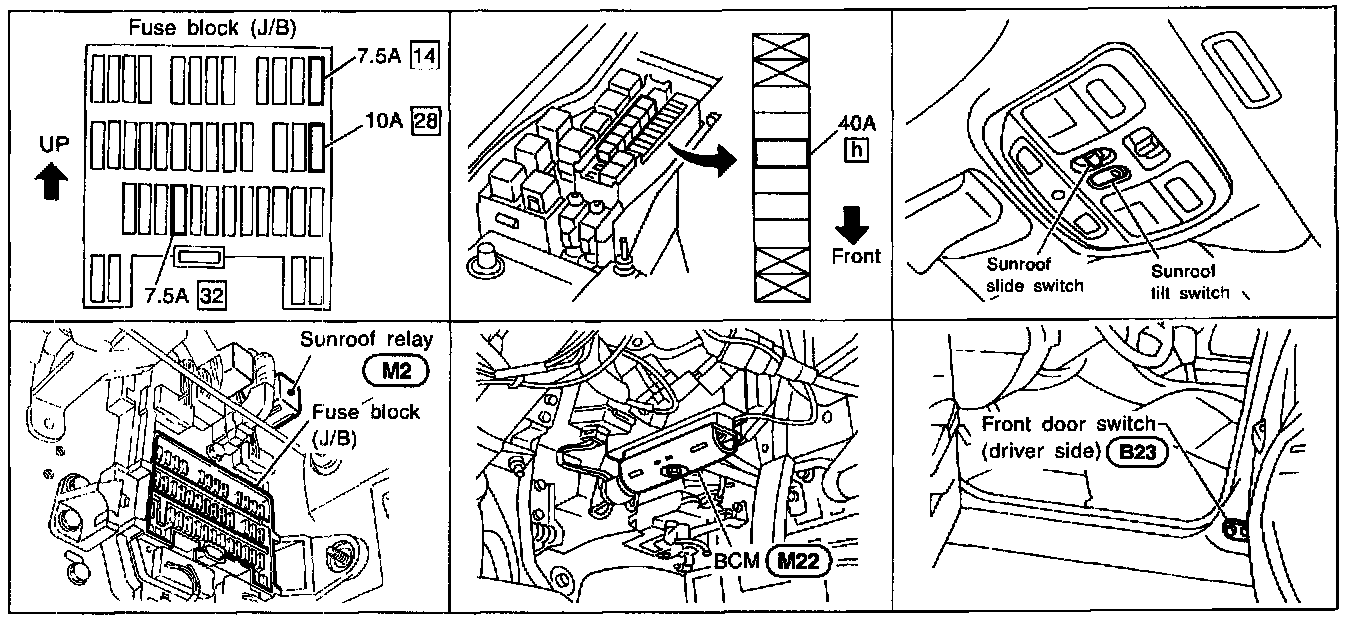

Component Parts and Harness Connector Location








Passenger Compartment
