Self Diagnostics Mode

After performing this procedure, place check marks for results on the "DIAGNOSTIC WORKSHEET". Reference pages are provided following the items.

SELF-DIAGNOSTIC PROCEDURE (With CONSULT)

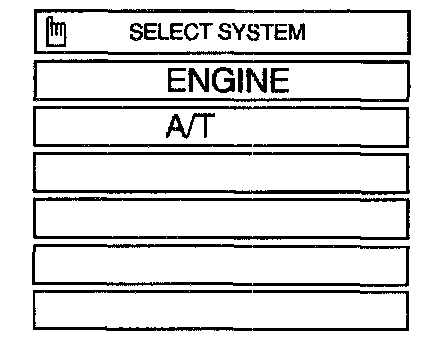

1. Turn on CONSULT and touch "ENGINE" for OBD-II detected items or touch "A/T" for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground circuit. If result is NG, refer to ("POWER SUPPLY ROUTING").

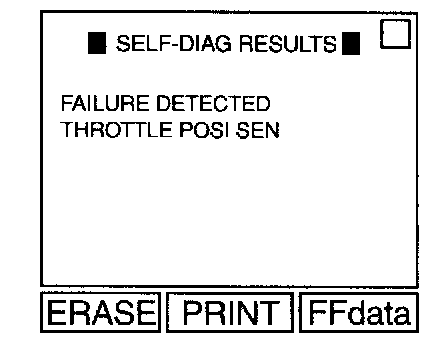

2. Touch "SELF-DIAG RESULTS".
Display shows malfunction experienced since the last erasing operation.
CONSULT performs REAL-TIME SELF-DIAGNOSIS. Also, any malfunction detected while in this mode will be displayed at real time.




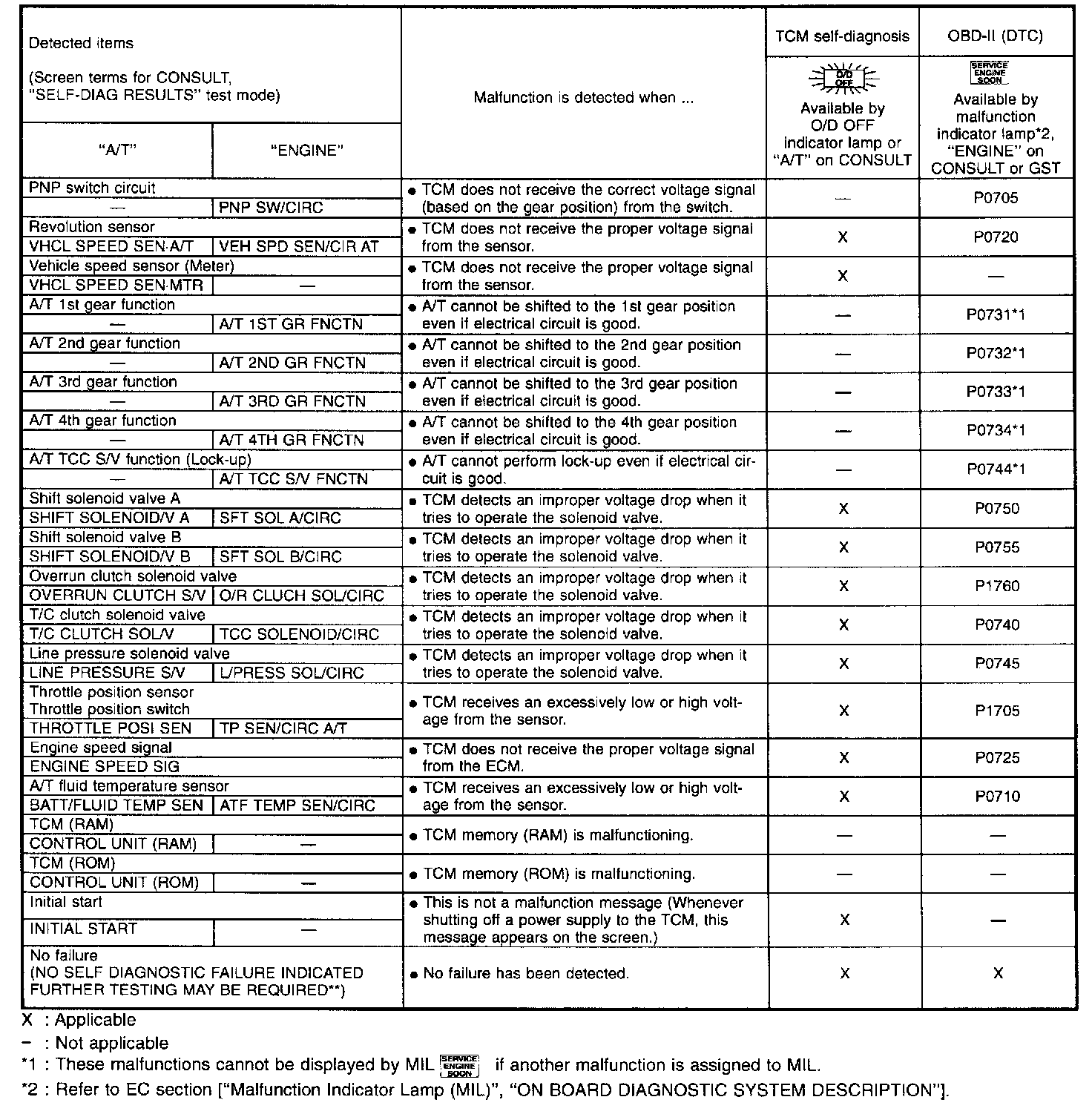

SELF-DIAGNOSTIC RESULT TEST MODE
