Condenser: Testing and Inspection
COMPONENT INSPECTIONCondenser
1. Disconnect condenser harness connector.

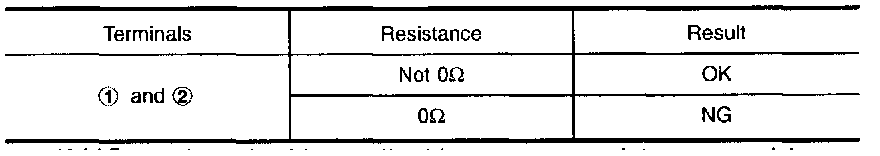

2. Check condenser continuity between terminals (1) and (2).
Resistance: Above 1 M Ohms at 25°C (77°F)
Condenser
1. Disconnect condenser harness connector.
2. Check condenser continuity between terminals (1) and (2).
Resistance: Above 1 M Ohms at 25°C (77°F)
