Infiniti
>>
1999
>>
I30t V6-2988cc 3.0L DOHC MFI (VQ30DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

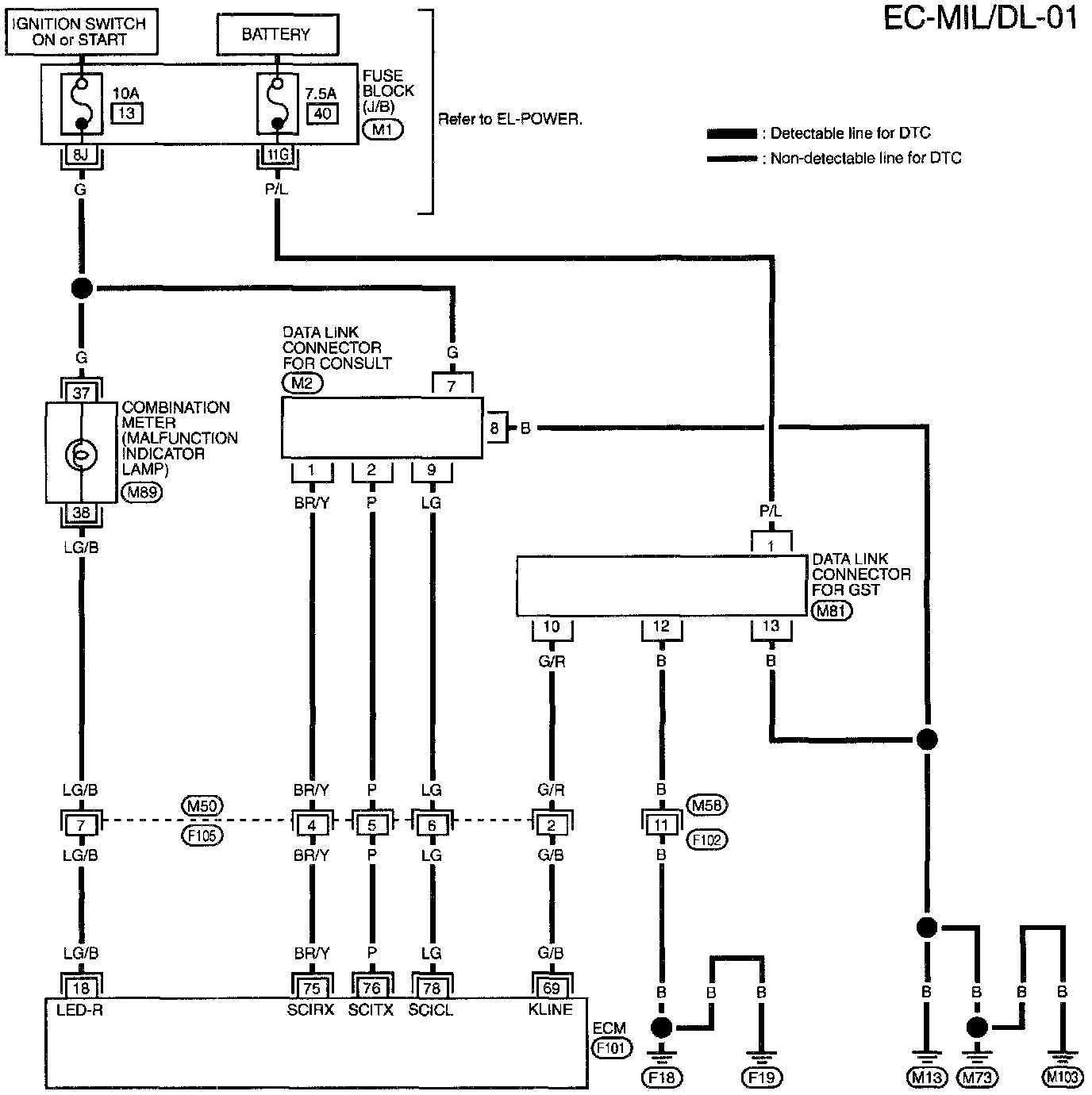

Circuit Diagram
Circuit Connectors
M1 Terminal Arrangement
