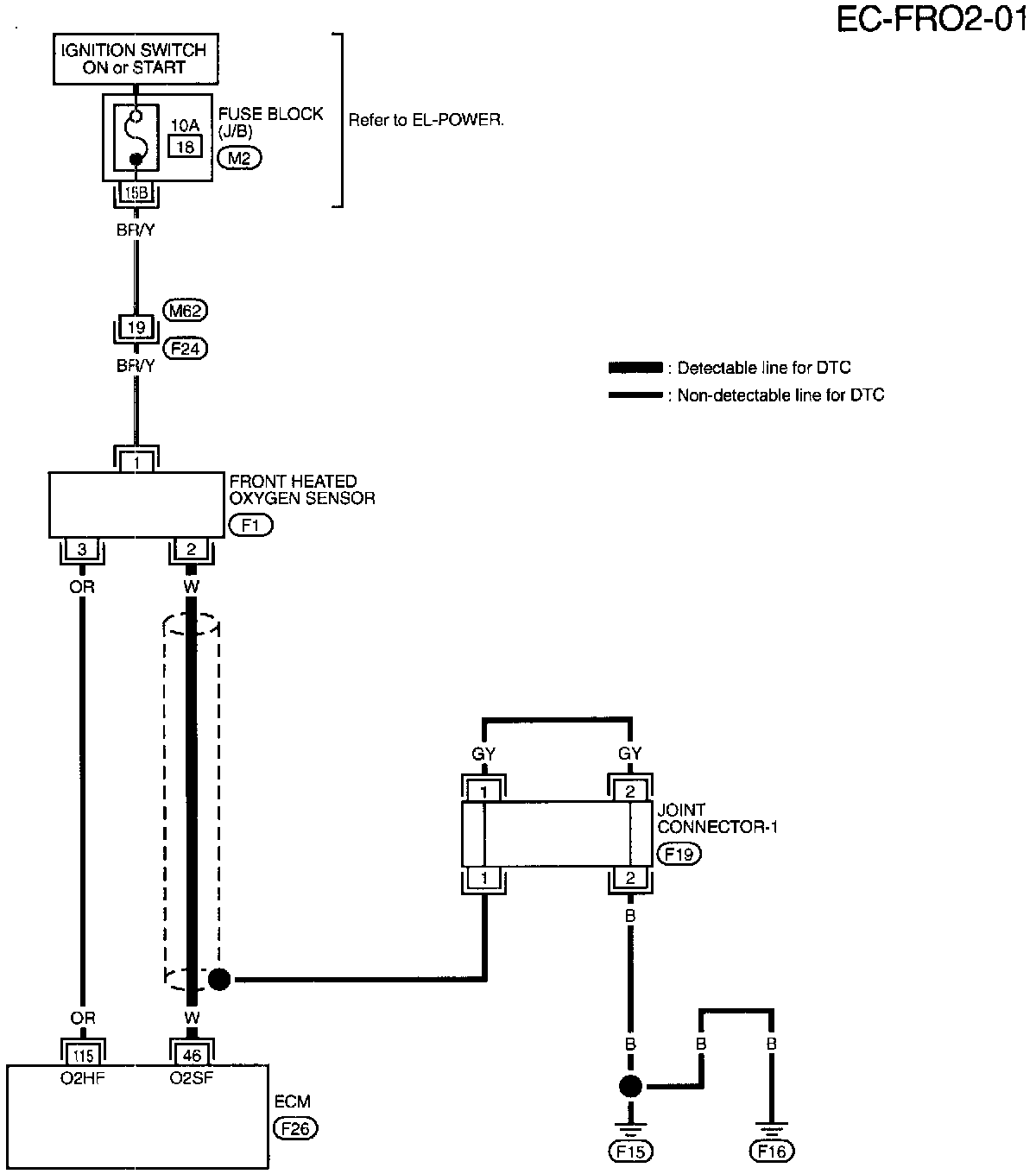

EC-FRO2-01

EC-FRO2-01

Front Heated Oxygen Sensor (Front HO2S) (Circuit) Circuit Connectors

M2 Fuse Block-Junction Box (J/B) Terminal Arrangement
