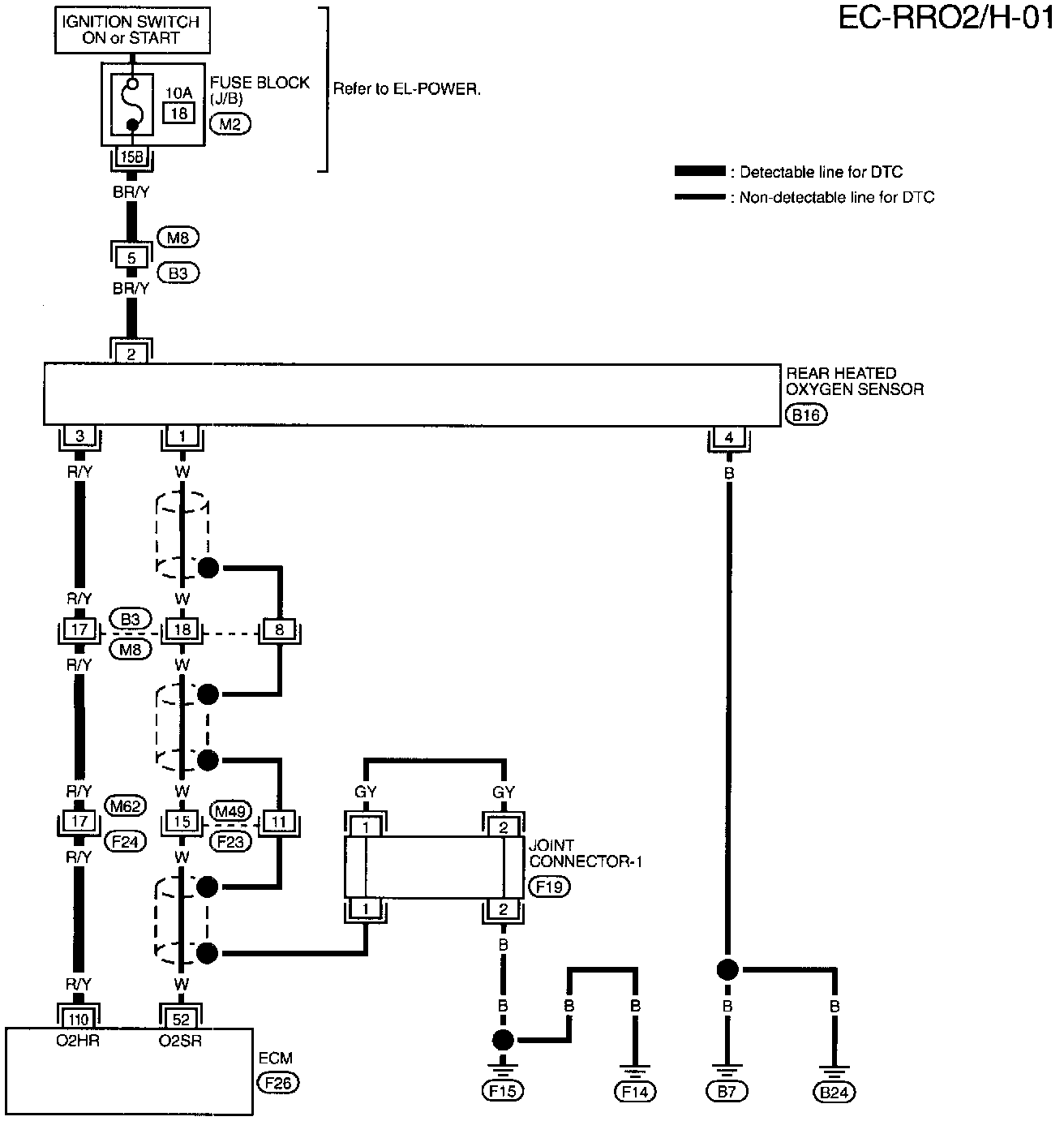

EC-RRO2/H-01





EC-RRO2/H-01

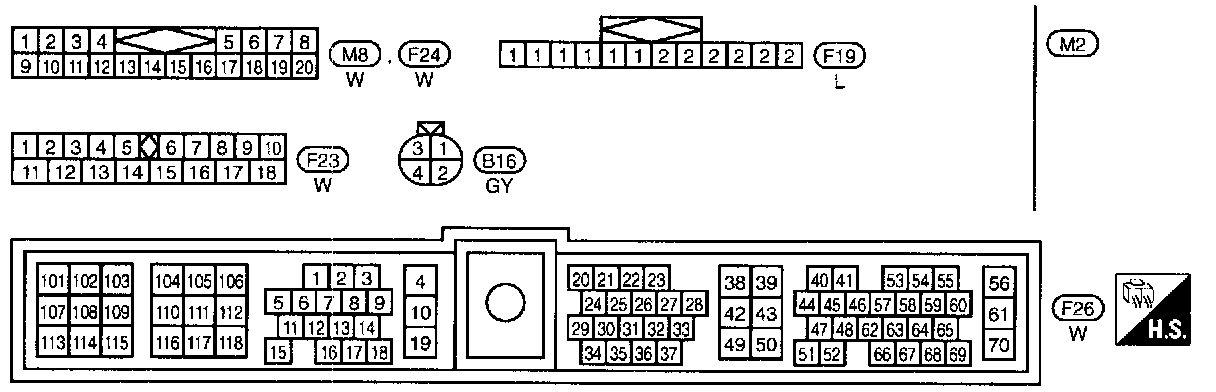

Rear Heated Oxygen Sensor Heater Circuit Connectors





M2 Fuse Block-Junction Box (J/B) Terminal Arrangement
