Seals and Gaskets: Service and Repair

Differential Side Oil Seal Replacement





1. Remove drive shaft assemblies.

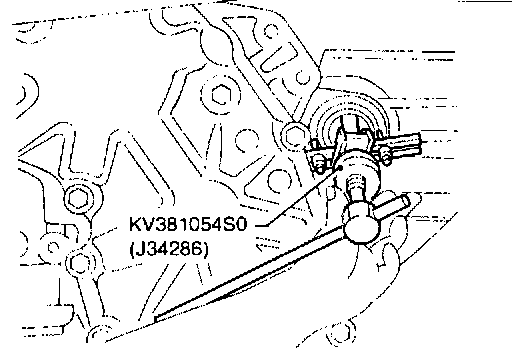

2. Remove oil seals.
3. Install oil seals.





^ Apply ATF to oil seal surface before installing.

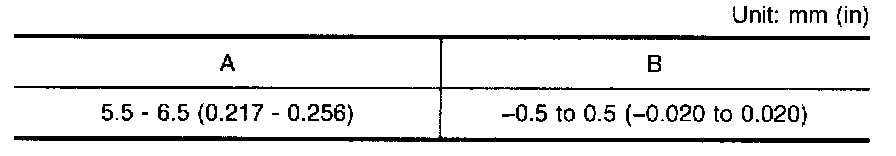

^ Install oil seals so that dimensions "A" and "B" are within specifications.
4. Reinstall any part removed.
