Home
>>
Infiniti
>>
1999
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission Wiring Diagrams
>>
AT-NONDTC
AT-NONDTC
AT-NONDTC-01

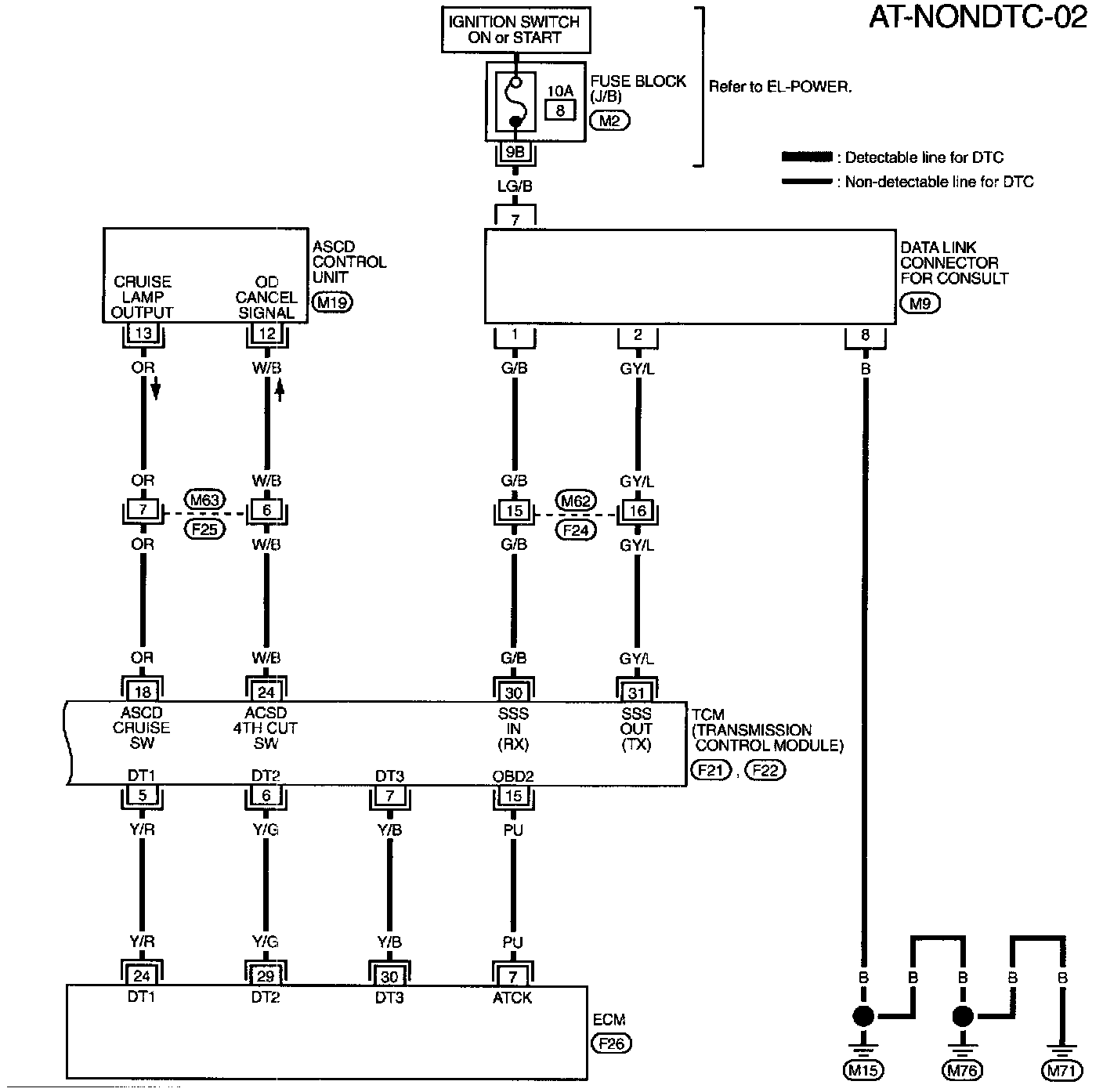

AT-NONDTC-02
