Home >> Infiniti >> 1999 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Automatic Air Conditioner >> Symptom Diagnostic Procedures >> Insufficient Cooling (Performance Test) >> Inspection Flow

Inspection Flow

SYMPTOM: Insufficient cooling

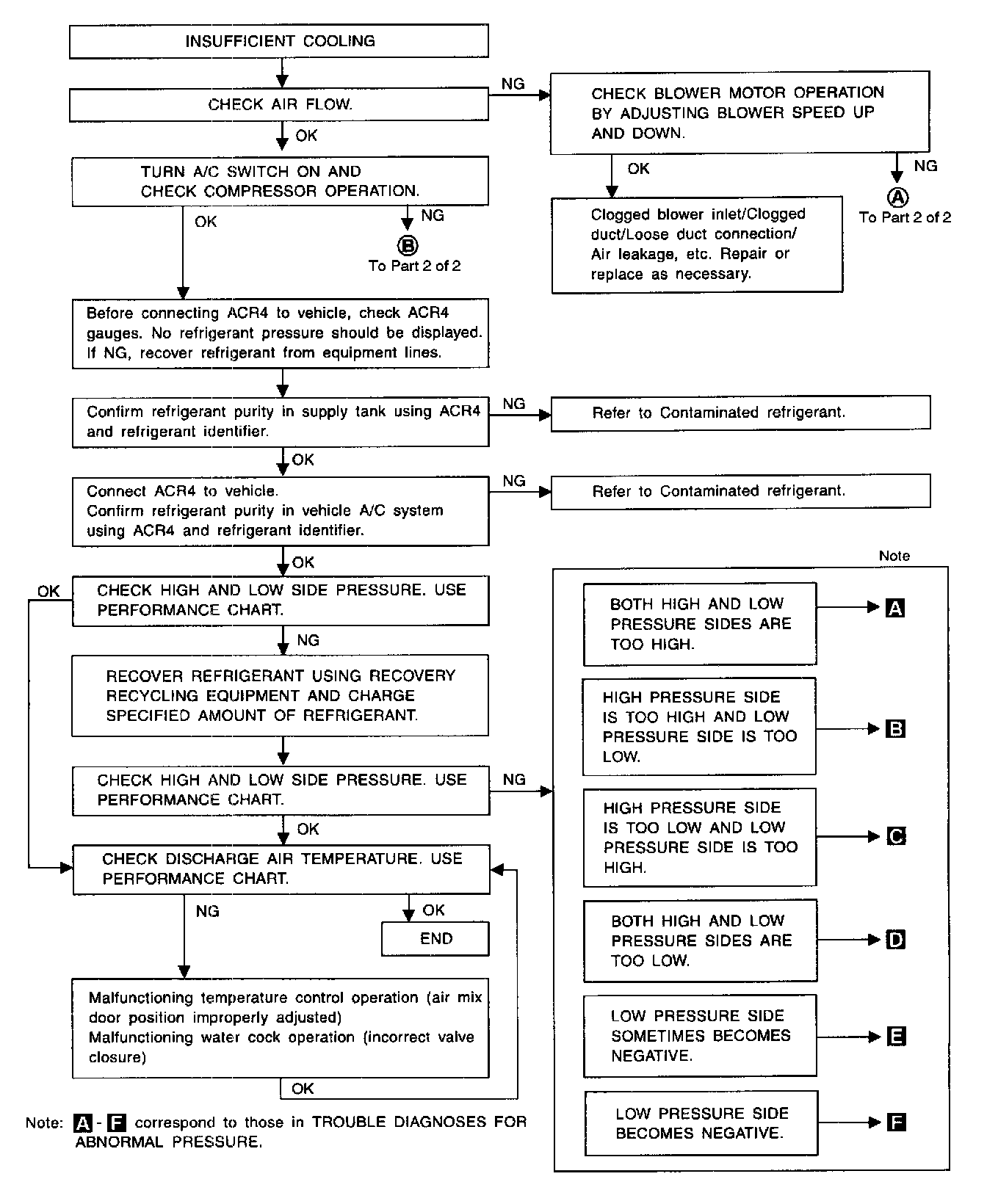

INSPECTION FLOW

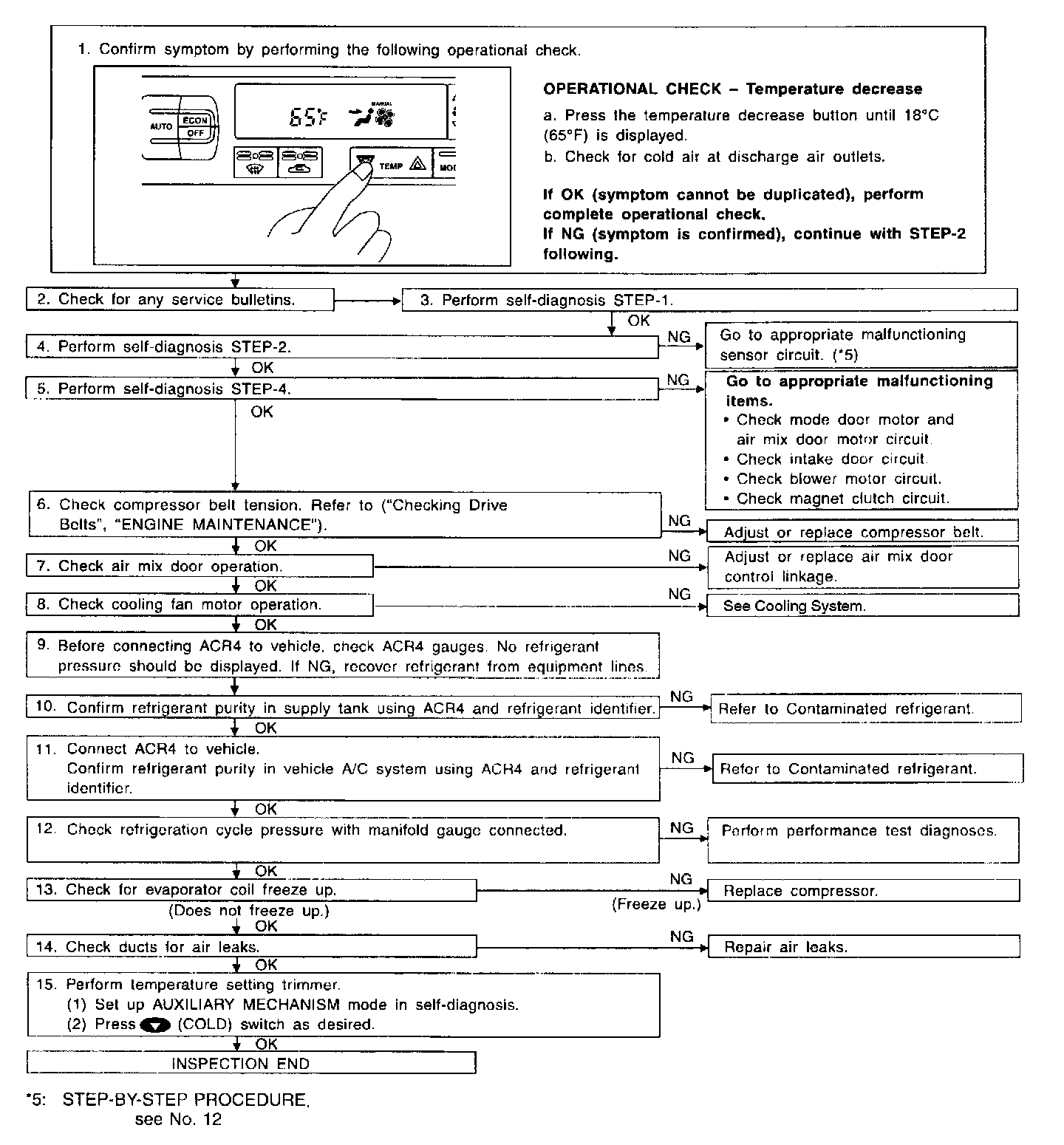

A/C PERFORMANCE TEST



PART 1 OF 2




PART 2 OF 2
