Blower Motor Resistor: Testing and Inspection

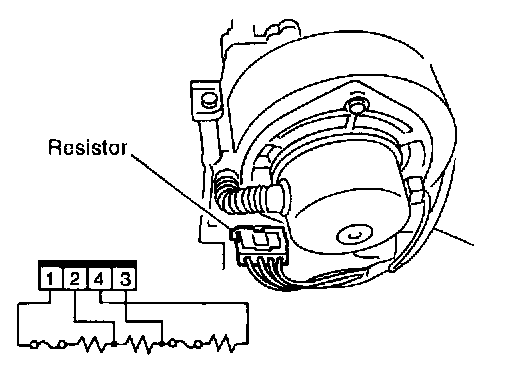

RESISTOR TESTING AND INSPECTION (MANUAL A/C ONLY)




PART 1 OF 2




PART 2 OF 2

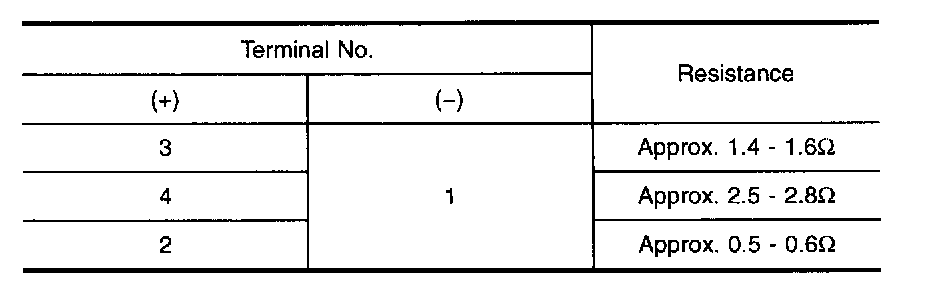

Check resistance between terminals.
