Parking Brake Cable: Service and Repair

REMOVAL AND INSTALLATION





1. To remove parking brake cable, first remove center console.

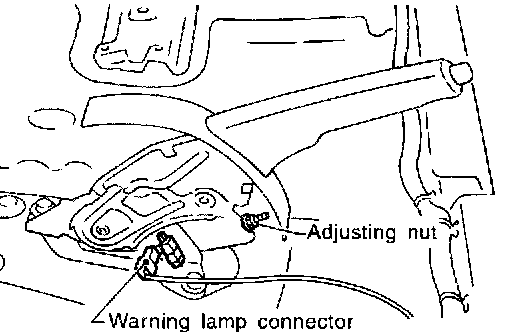

2. Disconnect warning switch connector.

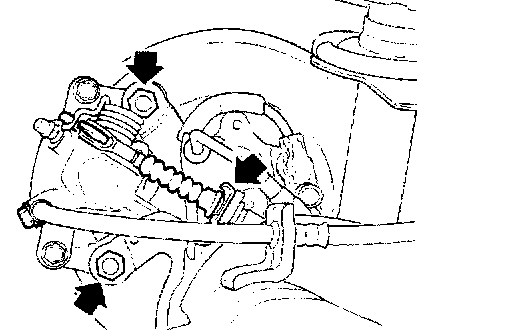

3. Remove bolts, slacken off and remove adjusting nut.





4. Remove lock plate and disconnect cable.
