Hydraulic Control Assembly - Antilock Brakes: Service and Repair

REMOVAL
1. Disconnect battery cable and harness connectors.
2. Drain brake fluid. Refer to "Changing Brake Fluid".
Brake Fluid

3. Disconnect brake pipes.

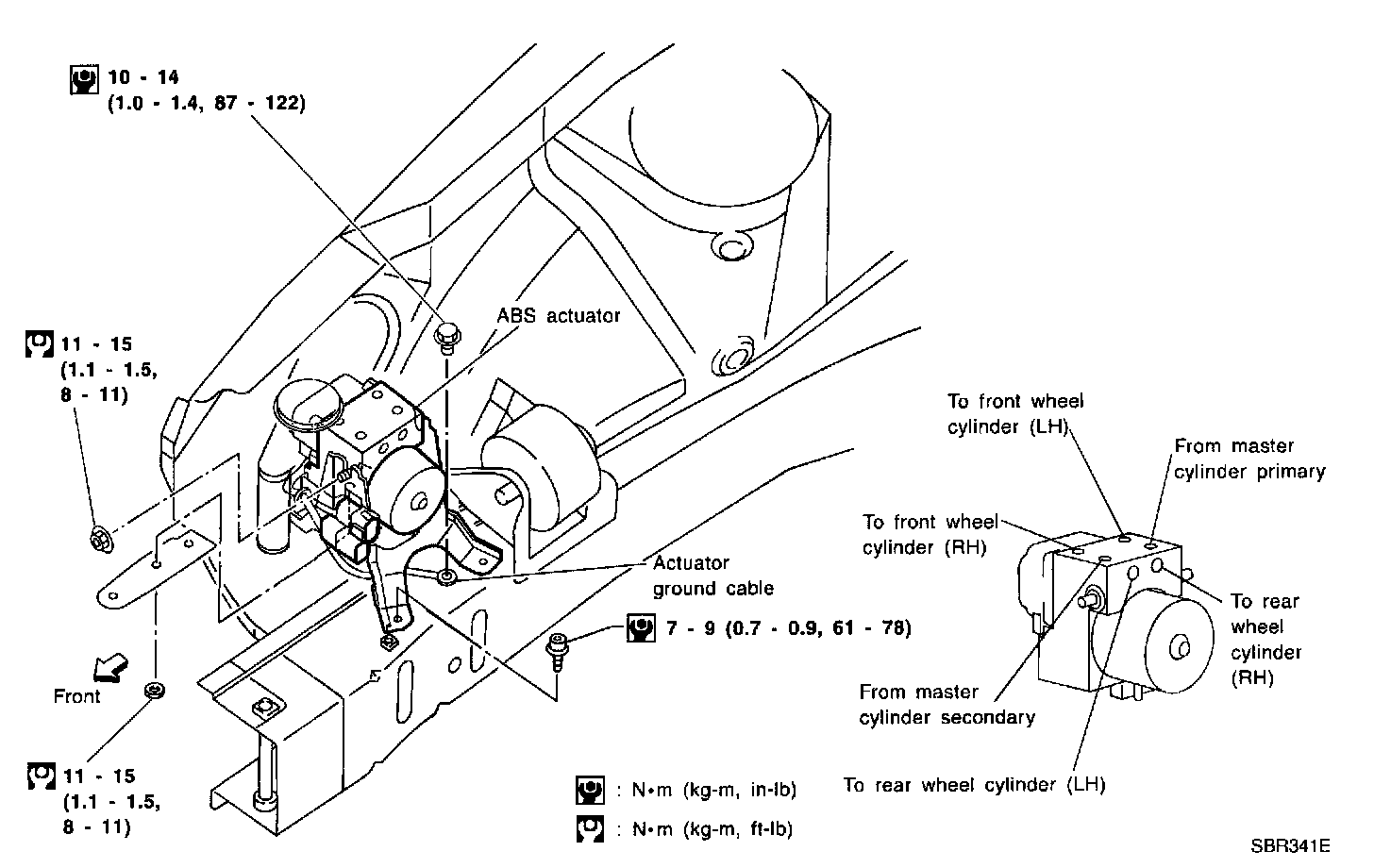

4. Remove fender protector (RH) and remove fixing nuts for actuator.
5. Remove bolts securing actuator to bracket, then remove actuator and bracket as a single unit.
6. Remove bolts securing actuator assembly, then remove actuator assembly from bracket.

INSTALLATION

CAUTION: After installation, refill brake fluid. Then bleed air. Brake Bleeding


1. Temporarily install actuator on the bracket.
2. Tighten actuator ground cable.
3. Connect brake pipes temporarily.
4. Tighten fixing nuts, bolts and brake pipes.
5. Connect harness connectors and battery cable.
6. Install fender protector (RH).
