Valve Body: Testing and Inspection

SOLENOID VALVES

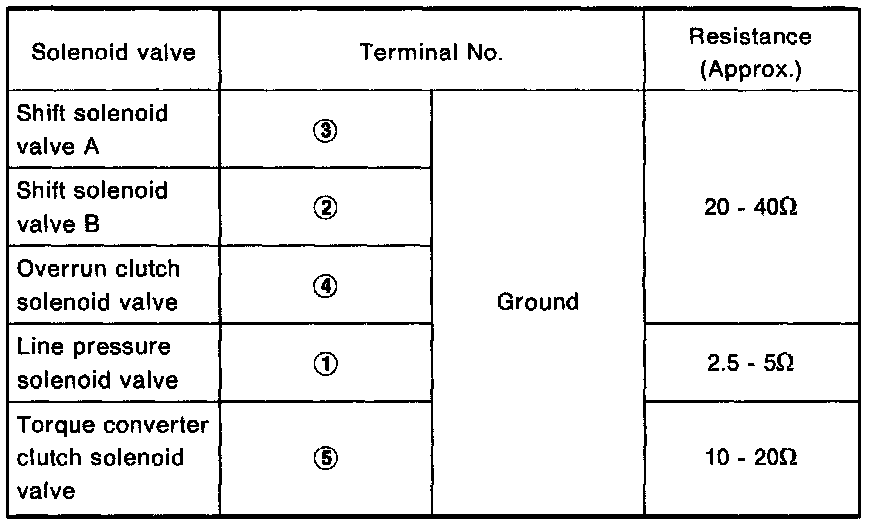

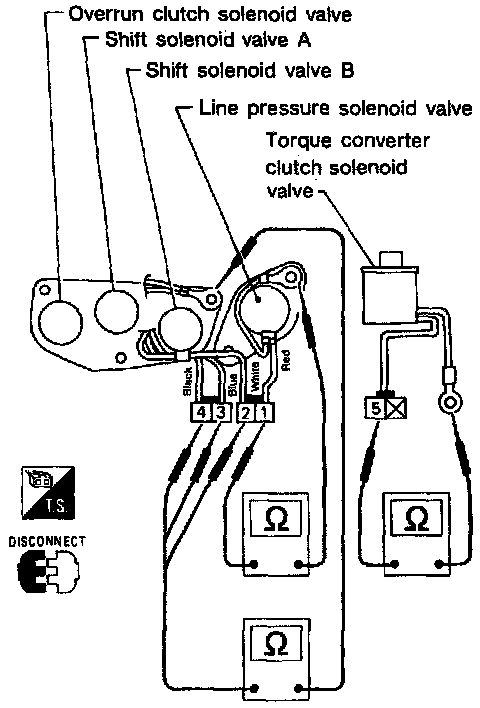

Resistance check







Check resistance between two terminals.

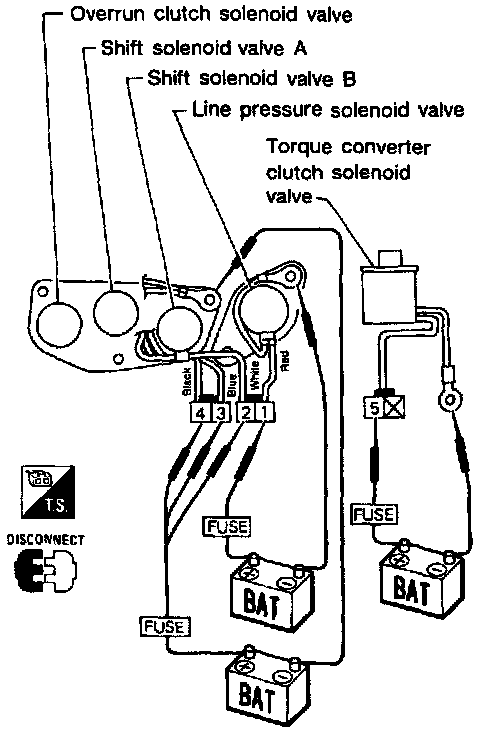

Operation check




Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground.
