Turbine Revolution Sensor
Turbine Revolution Sensor

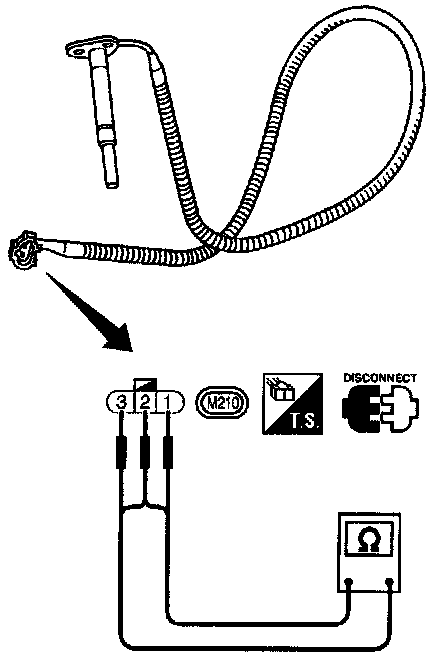

Test Connections:

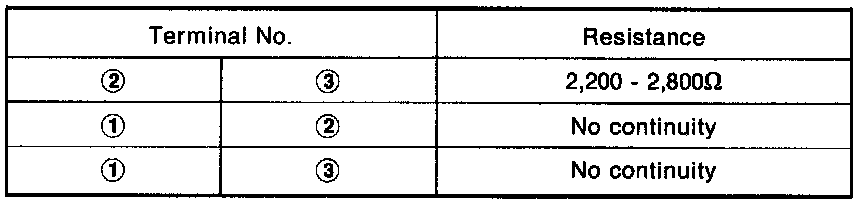

Specification:
TURBINE REVOLUTION SENSOR
Check resistance between terminals (1), (2) and (3).
