Home >> Infiniti >> 1996 >> Q45 V8-4494cc 4.5L DOHC (VH45) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Transmission Mode Switch >> Testing and Inspection

Transmission Mode Switch: Testing and Inspection

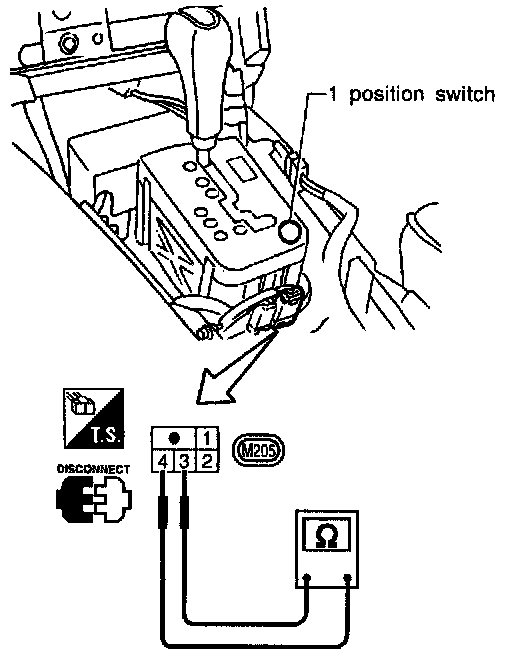

1 POSITION SWITCH

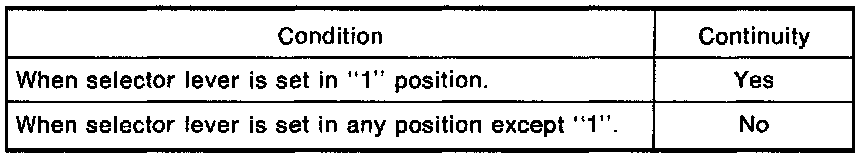

Check continuity between terminals (3) and (4) of 1 Position Switch harness connector.
