Dropping Resistor: Testing and Inspection

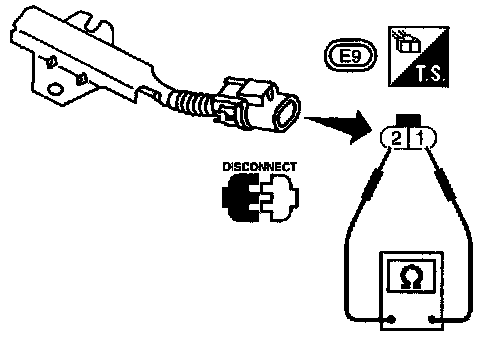

DROPPING RESISTOR
Check resistance between two terminals.
Resistance: 11.2 - 12.8ohms
